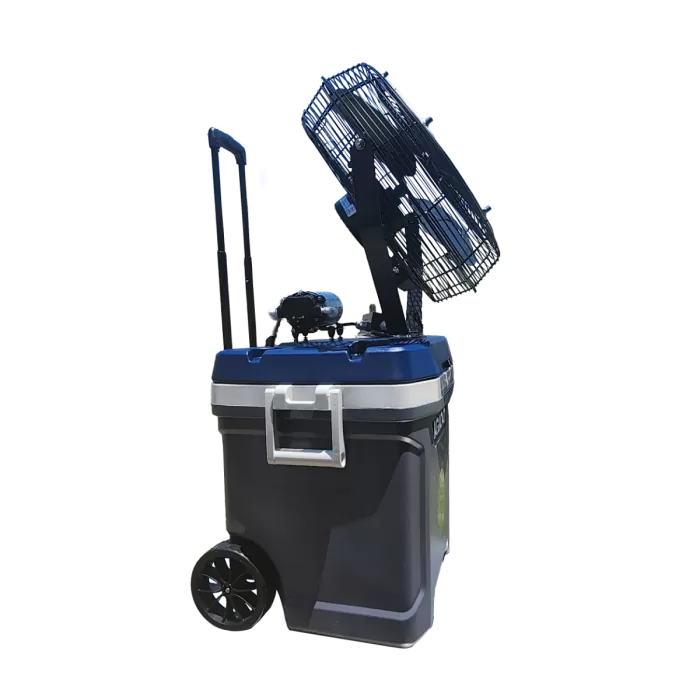

Portable Misting Fan - CoolerMax

https://www.mistcooling.com/web/image/product.template/398/image_1920?unique=f0cc78b

MC​32060​

Portable Misting Fan | Outdoor Fan

Key Features:

  • 14 Inch or 18 Inch Fan with Stainless Steel Misting Fan Ring
  • 4 Nozzles Ring For 14 Inch Fan
  • 6 Nozzles Ring For 18 Inch Fan
  • 0.012 Nozzle Orifices 10/24 Thread Slots
  • Max 200 PSI Misting Pump
  • 15 Gallon Tank (62 Quarts)
  • Lasts Up To 7 Hours Per Water Fill

Portable Misting System - Features:

  • Standard 110V (Also Available In 12V DC)
  • DC Or AC Converter Optional
  • Weight Is Approximately 40 Pounds
  • The Packed Dimensions Are 22” X22” X 36”
  • Place 6’-10’ Away from Desired Cooling Area
  • On A Hot Day, The Mist Will Evaporate Quickly

Mist Pump Specifications:

  • Maximum Inlet Pressure: 100 PSI
  • Minimum Inlet Pressure: Self-Priming (Capable of Lifting Water From 6 Feet Below.)
  • Maximum Outlet Pressure: 200 PSI (Depends on Line Length and Numbers of Nozzles)
  • Maximum Flow: 0.5 GPM
  • Full Load Amps. (110V ̴̴ 220V AC/ 12V DC): Refer Manufacturing Label on The Pump
  • Voltage: 110V-220V AC/ 12V DC (Refer Manufacturing Label on The Pump)
  • Noise Level: Appx. 35db
  • Maximum Fluid Temperature: For Room Temperature / Cold Water Applications Only

Outdoor Fan:18-Inch Fan Specifications:

  • Size: 18 Inch
  • RPM: 1570, AMPS: 2.0, CFM: 6300
  • 3-Speed Pull Chain
  • Stainless Steel Hardware with Durable
  • Corrosion-Resistant Finish
  • Motor With Thermal Overload Protection
  • Industrial Grade Aluminum Blade
  • 9ft Heavy Duty Cord with Cord Wrap
  • Quiet Operation
  • For Indoor/ Outdoor Use
  • Osha Approved Grill

Stainless Steel Fan Misting Ring Features:

  • Made With Industrial Grade 3/8'' Rigid Stainless Steel 316
  • Compatible With All High and Mid Pressure Mist Pumps
  • Pre-Threaded Nozzle Slots For 10/24 Thread
  • Rated For Up To 2000 PSI
  • Attaches To Any Wall Mount, Floor, Or Pedestal Fan
  • Includes Push-Lock Inlet Fitting
  • Nozzles & Fan Sold Separately
  • Lifetime Warranty

$ 899.99 899.99 USD $ 899.99

$ 899.99

Not Available For Sale

  • Fan Size
  • 12V DC Converter - Coolermax
  • Add 20 Nozzle Misting Tent Kit Extension

This combination does not exist.

Fan Size Fan Size: 14 Inch Fan - 4 Nozzles - 12 Inch Diameter Ring, Fan Size: 18 Inch Fan - 6 Nozzles - 15 inch Diameter Ring +$150.00
12V DC Converter - Coolermax None, 12vDC Power Inverter, Portable Power Generator with Carrying Handle (110vac)
Add 20 Nozzle Misting Tent Kit Extension Misting Tent Kit & Expansion fittings
