Produce Misting
The Produce Aisle They'll Remember.
In today's competitive market, the customer experience matters. Our misting systems transform your produce section into a captivating destination. The glistening display, the palpable freshness – it's an experience that draws customers in and keeps them coming back. Elevate your store and create a lasting impression.
Maximize Profits, Minimize Waste: The Smart Misting Solution
Extend shelf life and reduce shrink with our precision misting systems. By maintaining optimal hydration, you'll keep your produce fresher for longer, leading to fewer losses and happier customers. Invest in a system that pays for itself through increased sales and decreased waste."
Have a produce case you want to mist?
Typically most produce case misting systems are generally installed easily by push lock fittings and nylon tubing. Recommended nozzle spacing would be anywhere between 2-3 ft, so depending on the length of your produce case, would determine how many nozzles you would need.
Take a look at our produce case misting systems available on our website, as well a video installation guide of a typical low pressure system.
Produce Case Misting Specifications
Produce Case Mist System
Specifications
- 1- 250 PSI Misting pump with solenoid, Filtration and Cyclic Timer
- 4- Misting Tees
- 20- Feet Flexible UV Coated 1/4 inch tubing
- 1- Push-lock mist end elbow
- 2- Nozzle Plugs
- 5- Cleanable stainless steel orifice Misting Nozzles
- 5-Magnetic clamps

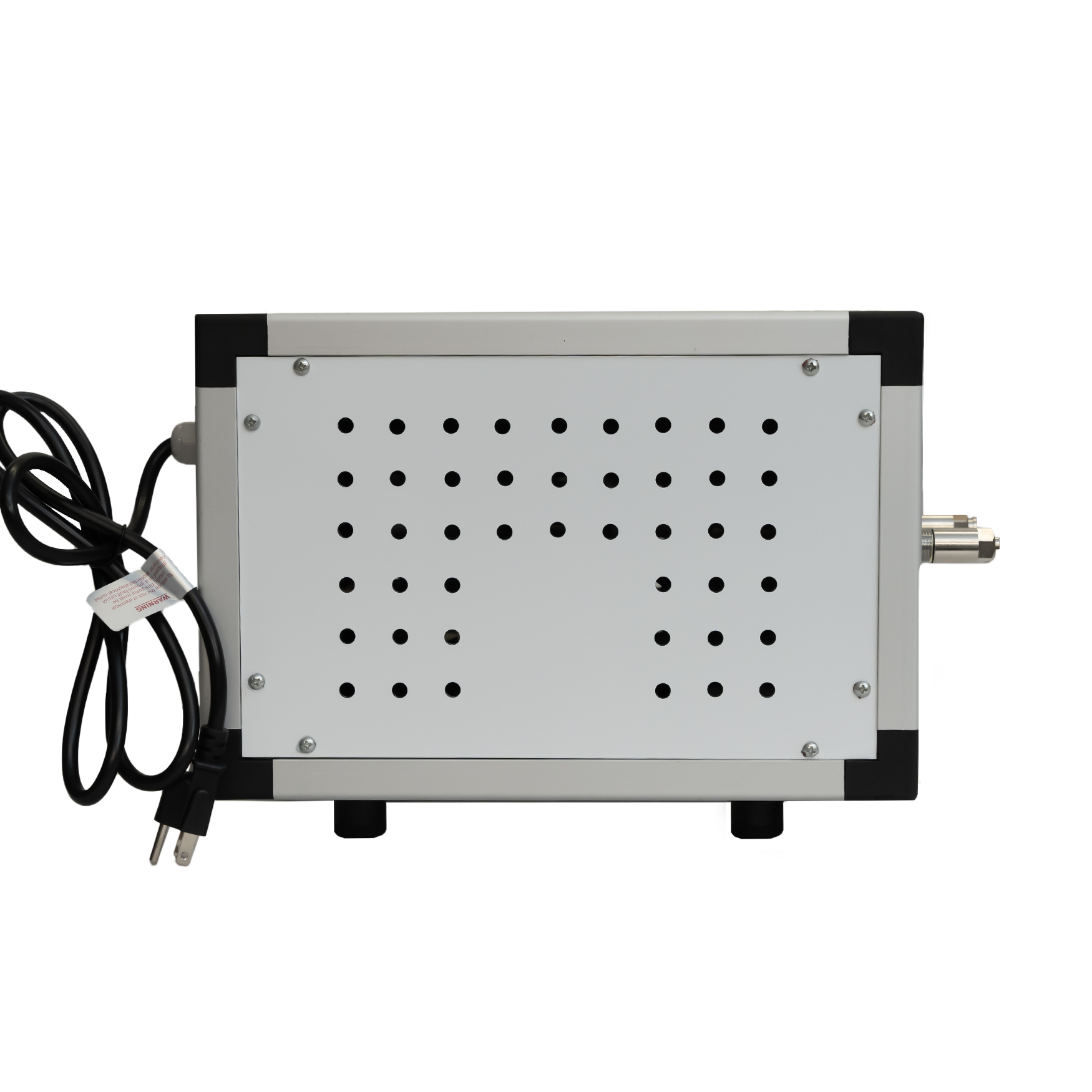

250 Psi Pump
Specifications
- Mist Pump Specifications:
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming.
- Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.9 GPM
- Full load amps. 110V AC: 0.7 Amps12V DC: 4.0 Amps
- Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)
- Noise Level: 40 DB.
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
- 250 Psi Pump Manual 250 Psi Pump Video Assembly
Produce Case Mist System
Specifications
- Twin Timer
- High-Performance Multi Range Twin Timer. Range: 2 Seconds to 12 Minutes.
- Specifications
- Operating Voltage Range: DC:85%~110% AC: 80%~110%.
- Rated Frequency: AC: 50~ 60Hz
- Rated Power consumption: Approx 2VA.
- Rated Control Capacity: DC:5A 28VDC AC:5A 250VAC P.F.=1
- Setting Accuracy: +/- 20%
- Reset Time: Less than 1S
- Time Range in Seconds Or Minutes
- On/Off: 2 Seconds 12 Seconds
- On/Off: 1.2Minutes - 12 Minutes
