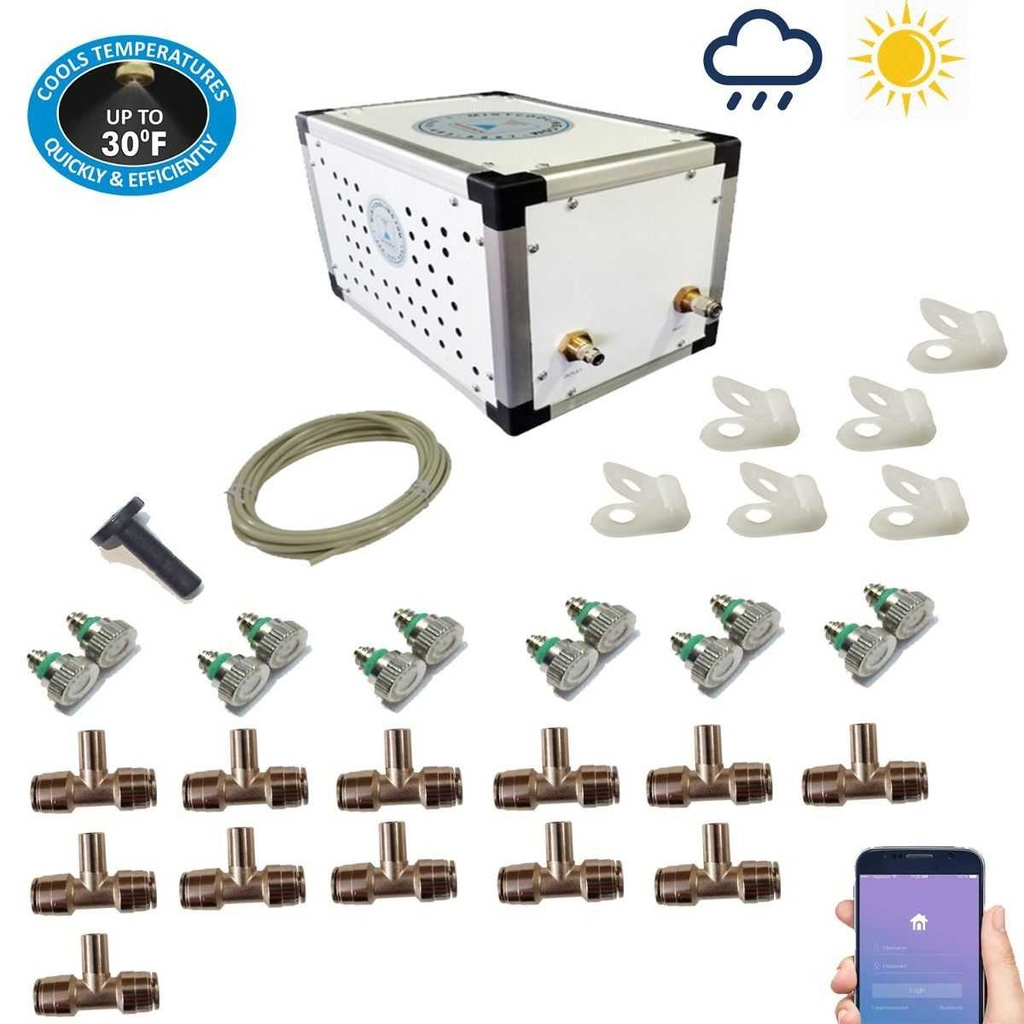

250 Psi System
Mid Pressure Nozzles And Tees

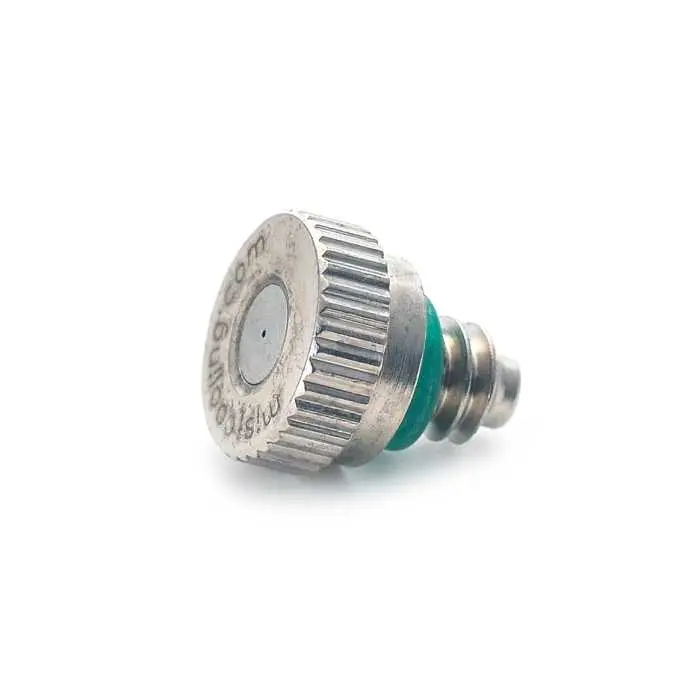

Mist Nozzles - 10/24 Thread 0.012 Inch - Mid Pressure
MC42064
Key Features:
0.012 Inch - Mid Pressure
Nickel-Plated - With a stainless-steel fixed impeller pin and orifice
10/24 Thread Size
Recommended Pressure: For mid pressure misting systems (100 -300 PSI)
Full cone pattern spray

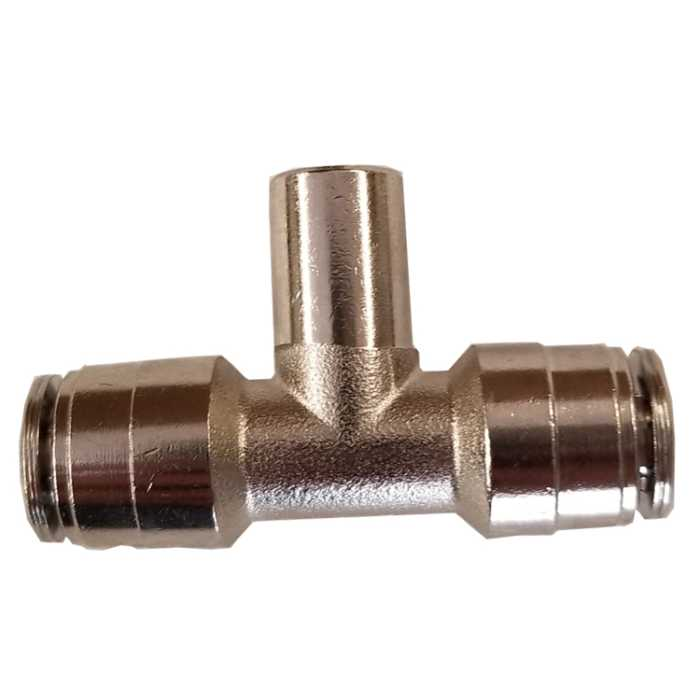

- Misting Tee for Mid Pressure Misting Systems - Metal
- MC52482
- Key Features:
- Metal Misting Tee for Mid Pressure Misting Systems
- Rated for 250 PSI
- With 10/24 thread Nozzle slot
- Easy push to connect fitting.

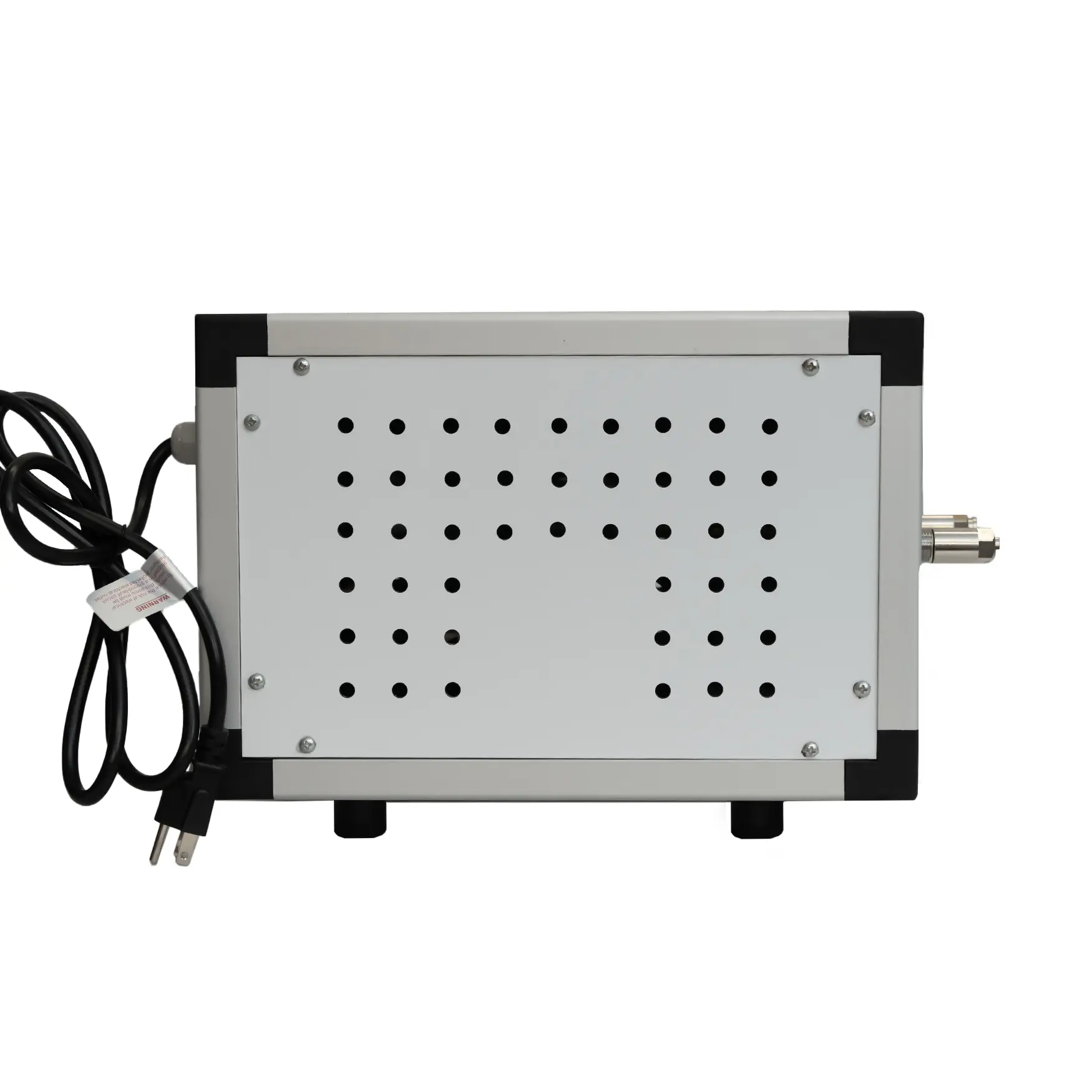

250 PSI Misting Pump Specifications
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming
- Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.9 GPM
- Full load Amps. 110V AC: 0.7 Amps12V DC: 4.0 Amps
- Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)
- Noise Level: 40db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
Free Smart Phone Controller
- Specifications: 2 Power Outlets 10 Amps 120VAC, 60 Hz
- For Misting Pump* and/or Mistcooling Fan with the Outdoor Rated Smart Phone Controller.
- No setup required, just plug and play, with customizable settings, display, and scenes
- Works with Siri and Amazon Alexa.
- Can be used with these Misting Pumps/misting Fans: 250 PSI Mistcooling Pumps 1500 PSI Misting Pumps up to 1 GPM
- Cannot be used with 2 GPM and Higher Pump
- Can be used with all Mistcooling Outdoor rated fans
- Requirements to Operate: Home Wi-Fi® (802.11 B/G/N) WPA or WPA2 Network Security App Download Smart Phone with IOS 8.1 or later

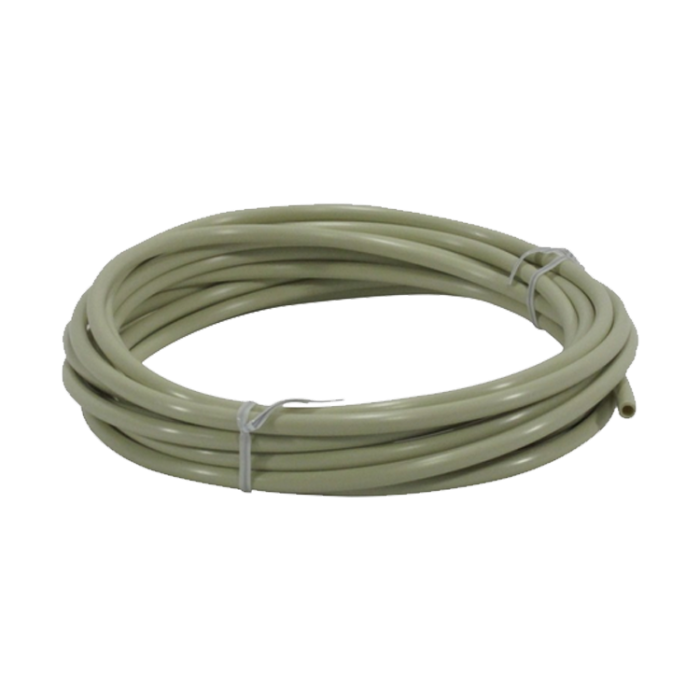

Tubing - Low / Mid Pressure - 1/4 Inch - Beige
MC71312
Key Features:
- 1/4 Inch OD
- .170 Inch ID
- 0.040 Inch Wall Thickness
- UV Treated
- Use for Misting Systems and Mosquito Misting Systems
- Rated for up to 300 PSI
- Does not crack or leak
- Minimum burst pressure - 300 PSI at 75 Degree F
Installing Your Pump
Installing your misting pump involves a few simple steps:
- Unboxing: Some items are shipped inside pump enclosures.
- Setting the pump up in its location- Should be level, and well ventilated. Avoid installing the pump in a location that could be damaged if a leak should occur.
- Connecting to power.
- Connecting to water and purging air.
Our "Unboxing videos" show how to follow this process for the various pumps we offer.
Installing Your Lines
Installing your mist line involves a few simple steps:
- Proper angling of nozzles: Ideally nozzles should be pointed down or out 45° from the covered space.
- Clamp placement: line clamps should be installed at least 2" away from misting tees and other fittings.
- Ensure that flexible tubing is cut straight and clean so it can seal properly in the fittings.
- 1/4" stainless tubing comes pre-machined to attach to push-lock fittings. It should not be cut. Short sections of flexible tubing may be used to make up for gaps or odd-sized distances.
- Make sure to follow all air purge procedures before pressurizing the system. Air in the lines can cause vibration and blowouts.
- We strongly advise keeping lines where they are easily accessible for maintenance. While we take great care to ensure top quality, blowouts and leaks can happen. Do not run lines behind walls or in ceilings where damage may result if a leak occurred.
