High Pressure Nozzles And Tees

• • 0.012 Inch - Mid Pressure
  • Nickel-Plated - With a stainless-steel fixed impeller pin and orifice
  • 10/24 Thread Size
  • Recommended Pressure: For mid pressure misting systems (100 -300 PSI)
  • Full cone pattern spray 60-70 degrees

Misting Tee for Mid Pressure Misting Systems - Metal

Key Features:

• Metal Misting Tee for Mid Pressure Misting Systems
• Rated for 250 PSI
• With 10/24 thread Nozzle slot
• Easy push to connect fitting.

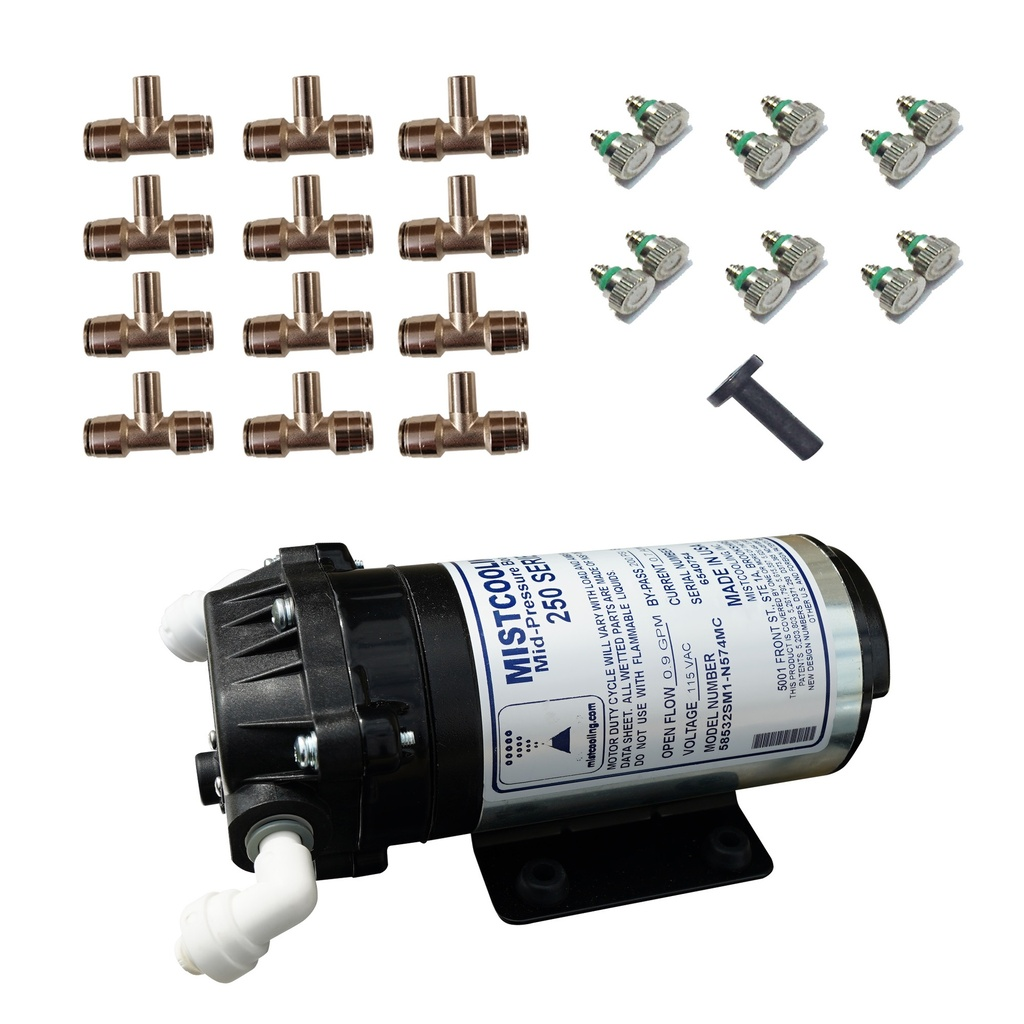

200 PSI Pump

• Specifications:
• Maximum Inlet Pressure: 100 PSI
• Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below)
• Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)
• Maximum Flow: 0.5 GPM
• Full load amps. (110V ̴̴ 220V AC/ 12V DC): Refer manufacturing label on the pump
• Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)
• Noise Level: approx. 35db
• Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

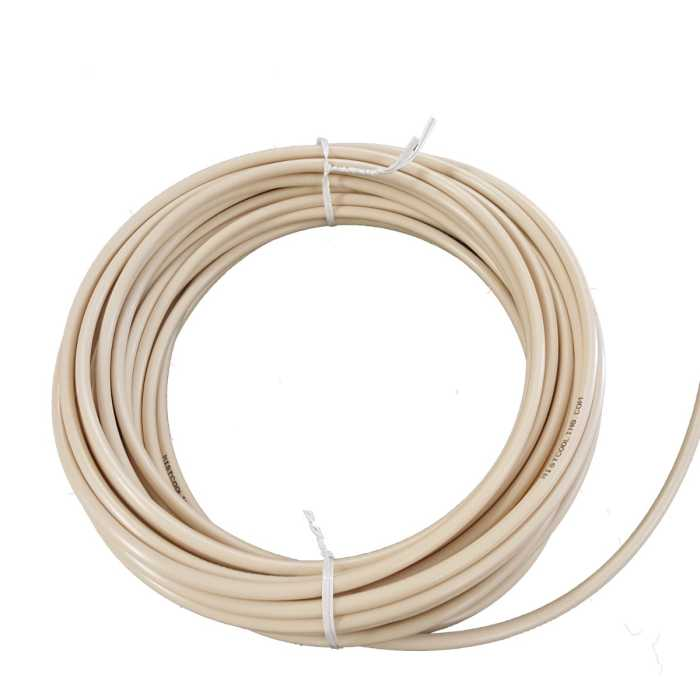

Tubing - Low / Mid Pressure - 1/4 Inch

Key Features:

• 1/4 Inch OD
• .170 Inch ID
• 0.040 Inch Wall Thickness
• UV Treated
• Use for Misting Systems and Mosquito Misting Systems
• Rated for up to 300 PSI
• Does not crack or leak
• Minimum burst pressure - 300 PSI at 75 Degree F

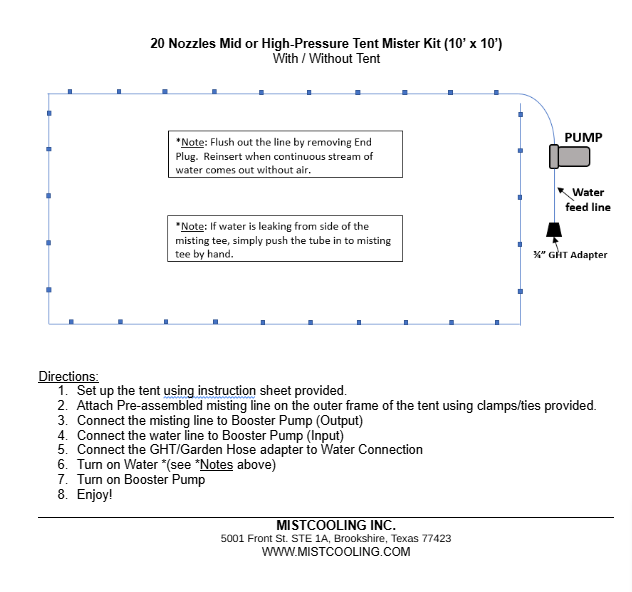

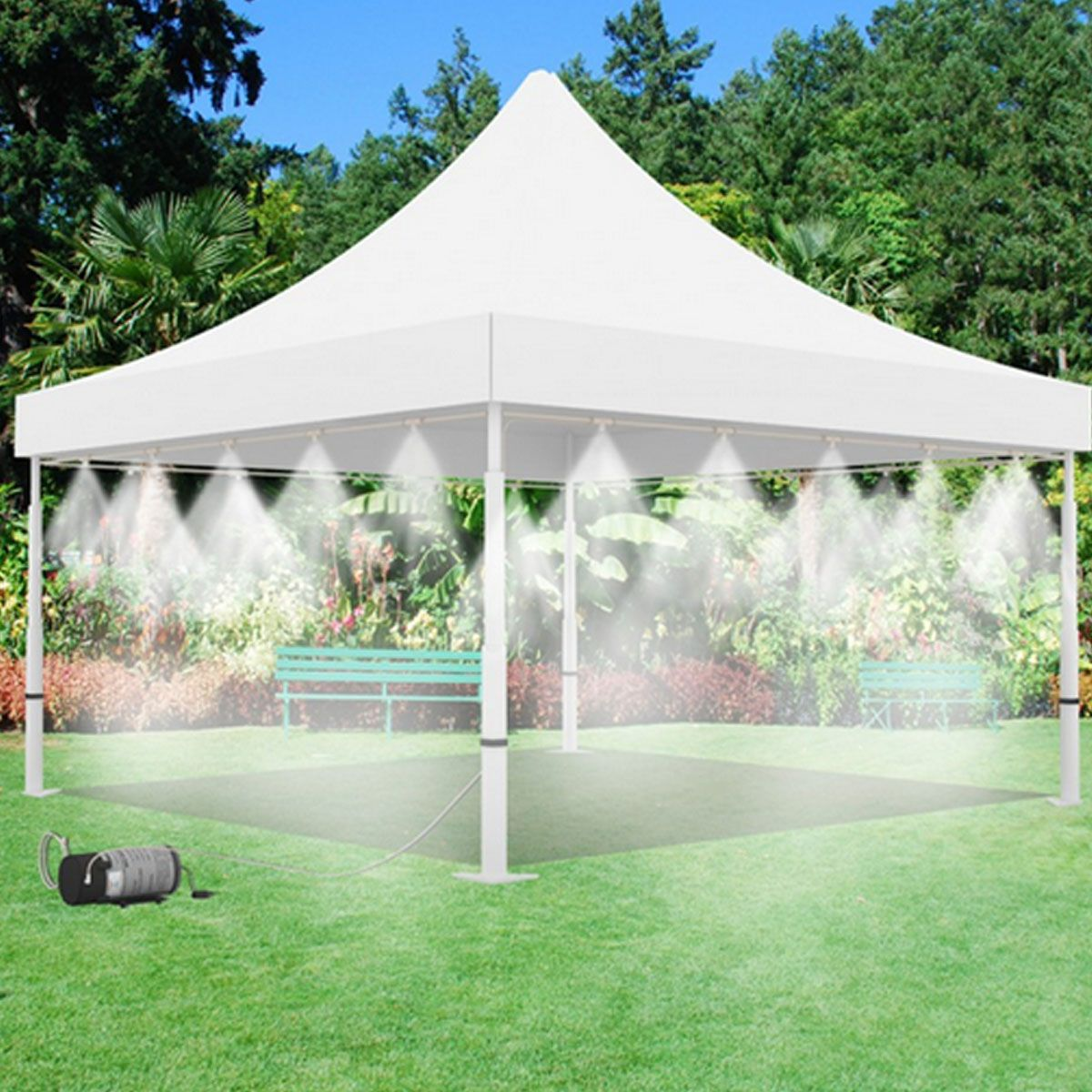

Misting Tent

Misting Tent For Outdoor Cooling - With Misting System and Misting Pump:

• Misting System is pre-installed and set up is a matter of minutes
• Cooling Mist lowers temps by up to 30°F
• The mist cooling feature will attract customers to your tent
• Collapsible, easily assembled, and portable
• Directional Misting Heads easily adjust the flow of mist inward or outward to counter wind direction
• 10’ x 10’ foldable guaranteed quality-canvas Tent
• 200 PSI Mid-Pressure Pump
• UV-Protected Flexible Mist Tubing that will not crack or burst
• Thermo-Plastic Push-Lock Fittings (allow for quick and easy system expansion)

*Note: 2 Mistcooling 8in x 8in branding logo on the tent corners.

Specifications of Tent for Outdoor Events:

• Aluminum Tent Frame is durable and will not rust
• Heavy-duty quality Canvas will last for years
• Accommodates 16 to 35 people depending upon seating style
• Easily Customize with multi-color Logos and Text
• Blue canvas is also available
• Weighs 40 Pounds
• Comes with a carrying bag
