High Flow Mist Pumps (Direct Drive 5.0 GPM)

​ ​ ​ ​ ​ ​ ​ ​ ​
1000 PSI high-pressure direct drive pump and pulley drive pump for
outdoor cooling, dust suppression, humidification with accurate flow rates.

Capable of supporting a large number of nozzles.
The base pump is a direct-driven 5.0 GPM Pump.

Max 1000psi / Flow 5GPM / Continuous Duty / Direct
Drive / Outdoor Enclosure / TEFC Motor
5HP / Pressure Regulator / Inlet Filtration / Inlet/outlet Fittings / 480/230vac 3ph




 ​ ​ ​High Pressure - 3/8 Inch - Black - 500 Ft Roll

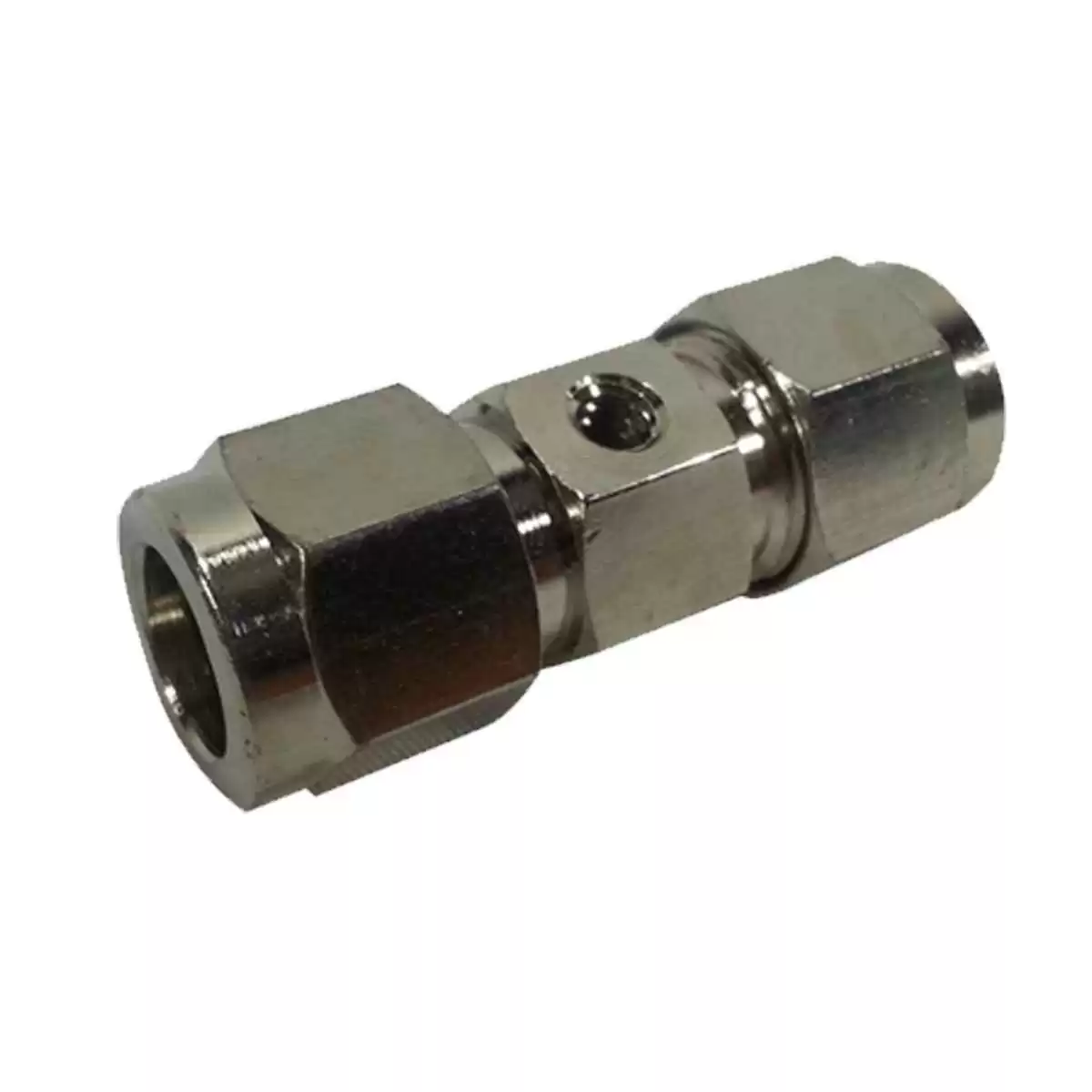

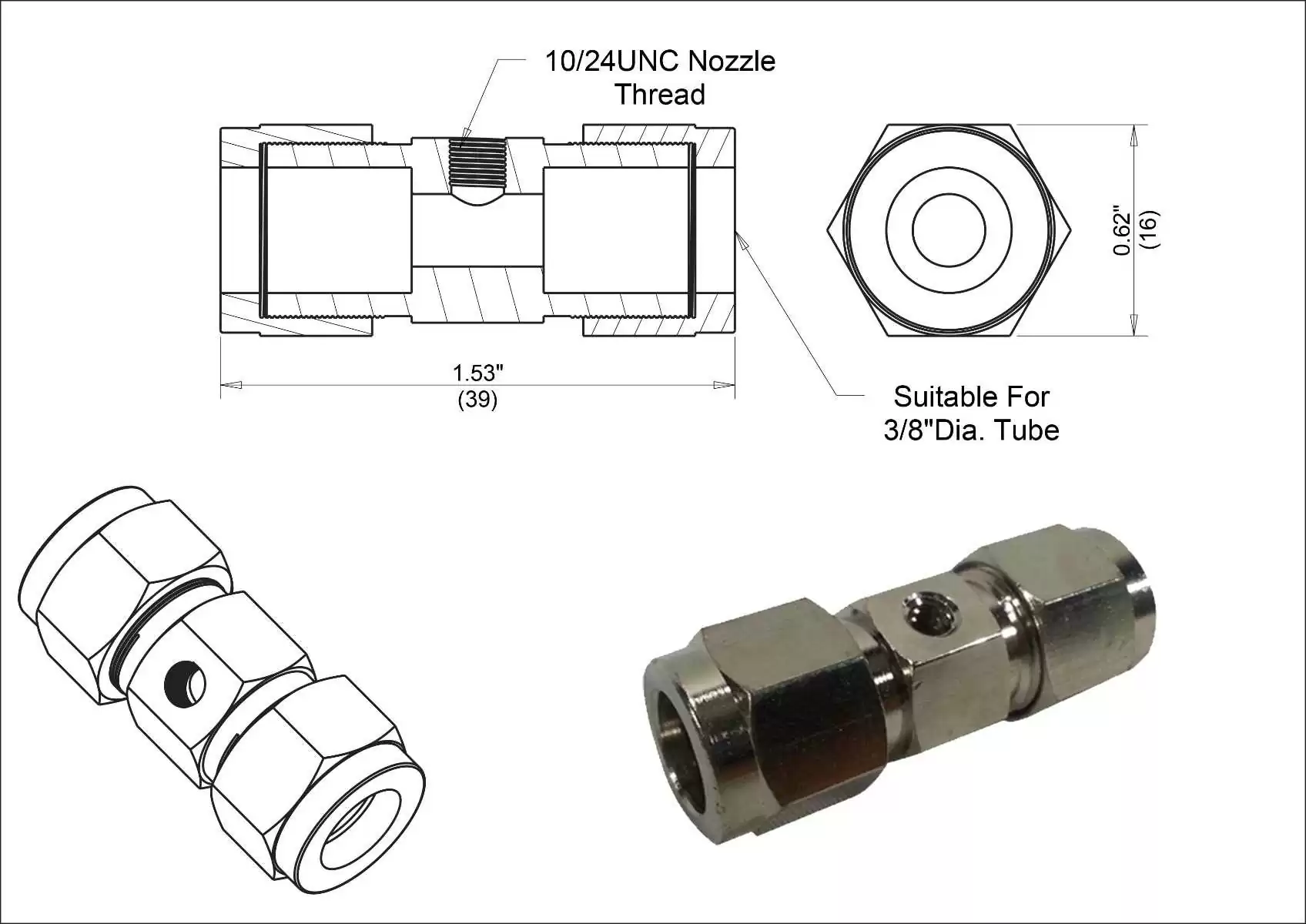

​ ​ ​ ​ ​ ​ ​ ​3/8 Compression Misting Tee 10/24

​ ​ ​ ​ ​ ​

​ ​ ​ ​ ​ ​ ​

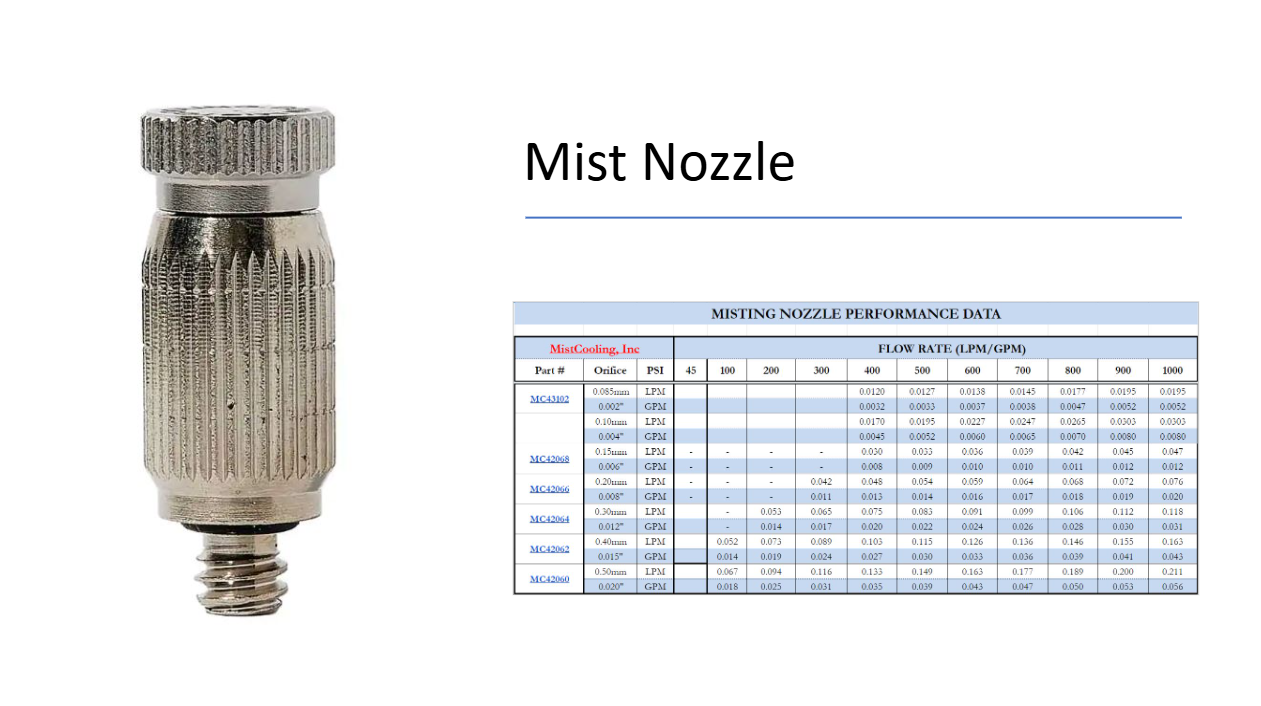

​ ​ ​ ​ ​ ​ ​Stainless Steel Anti-drip Misting Nozzles 0.008 Inch



​ ​ ​ ​ ​ ​

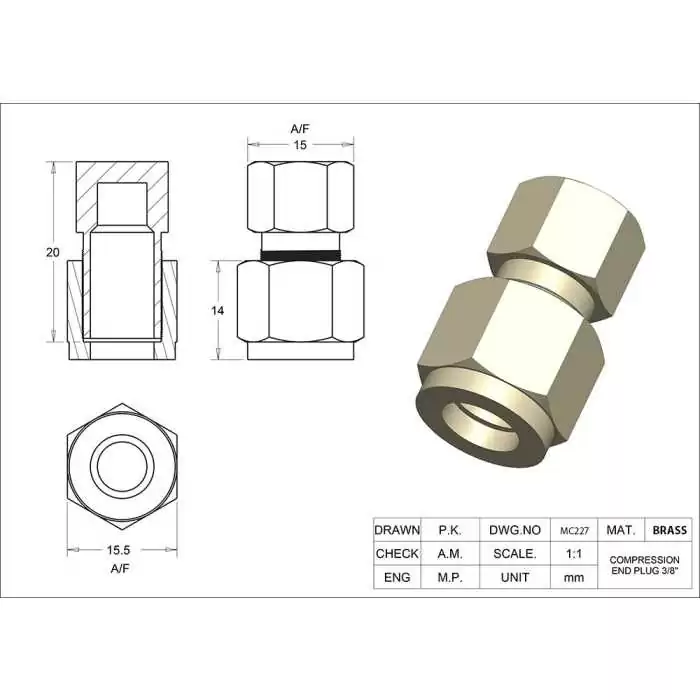

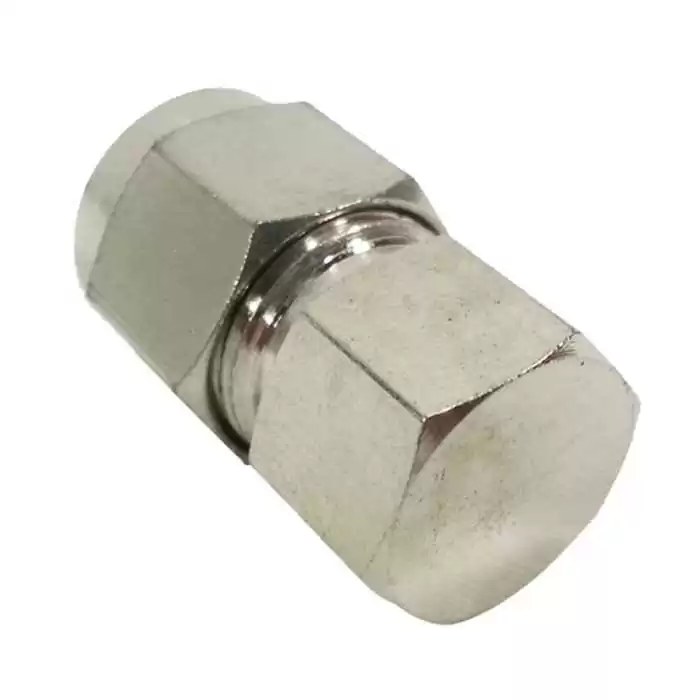

​ ​ ​ ​ ​ ​ ​3/8 Compression End PLUG

​ ​ ​ ​ ​ ​ ​ ​ ​ ​

​ ​ ​ ​ ​ ​ ​

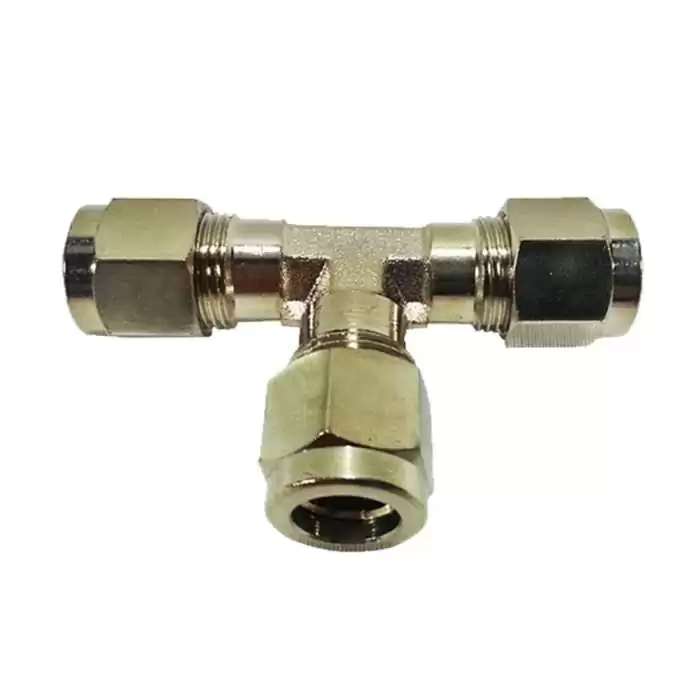

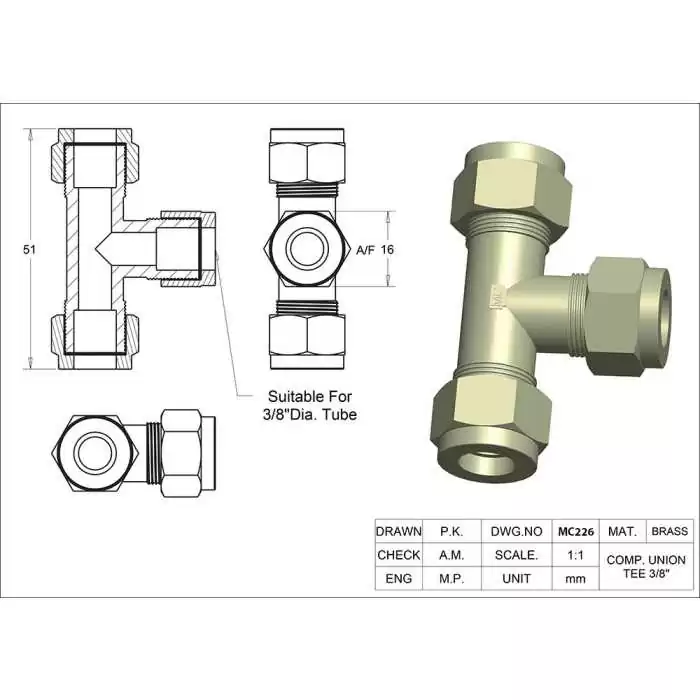

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​3/8" Compression Tee


​ ​ ​ ​ ​ ​ ​

​ ​ ​ ​ ​ ​ ​

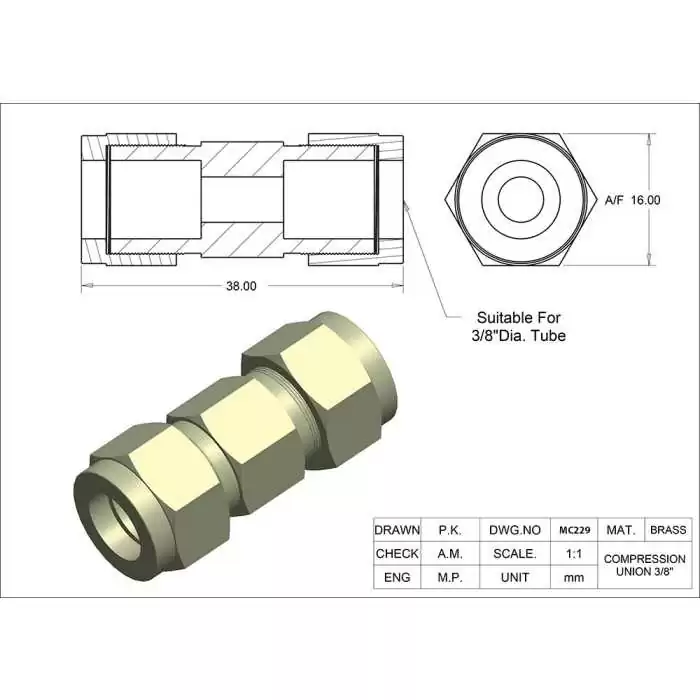

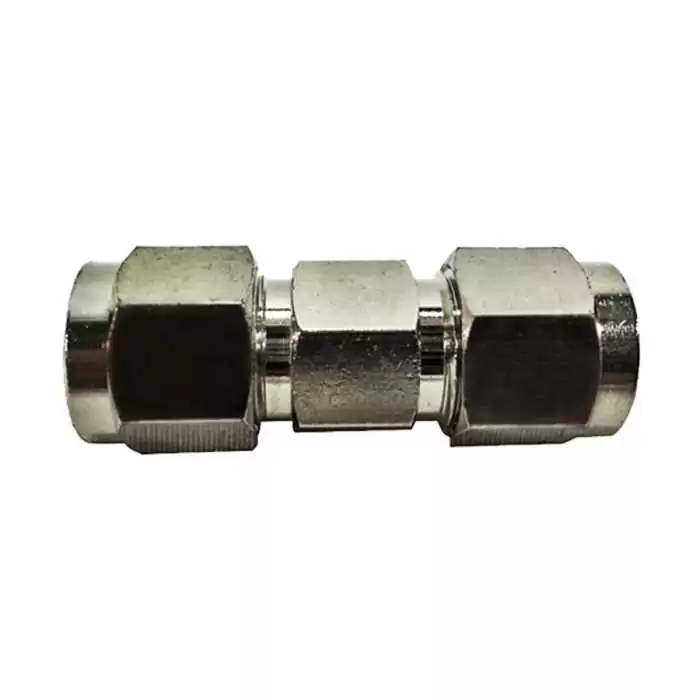

​ ​ ​ ​ ​ ​ ​ ​ ​ ​3/8" Compression Union

​ ​ ​ ​ ​ ​ ​


​ ​ ​ ​ ​ ​

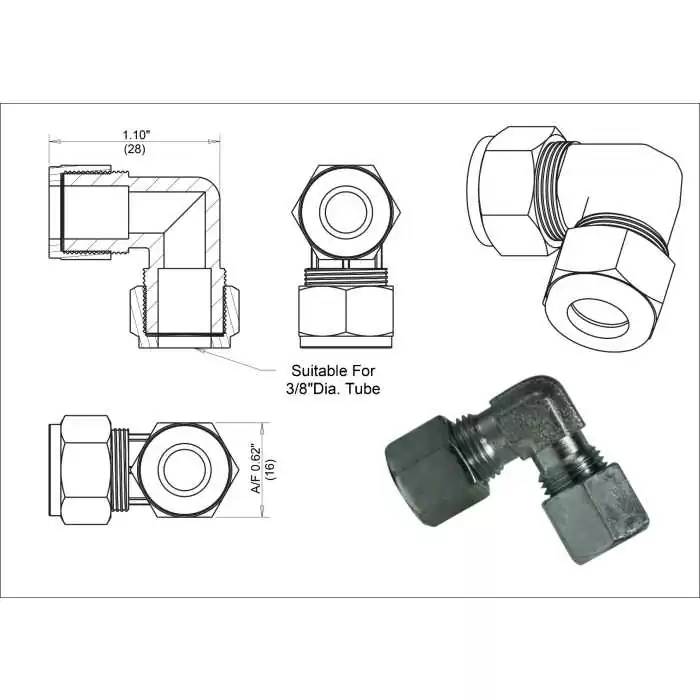

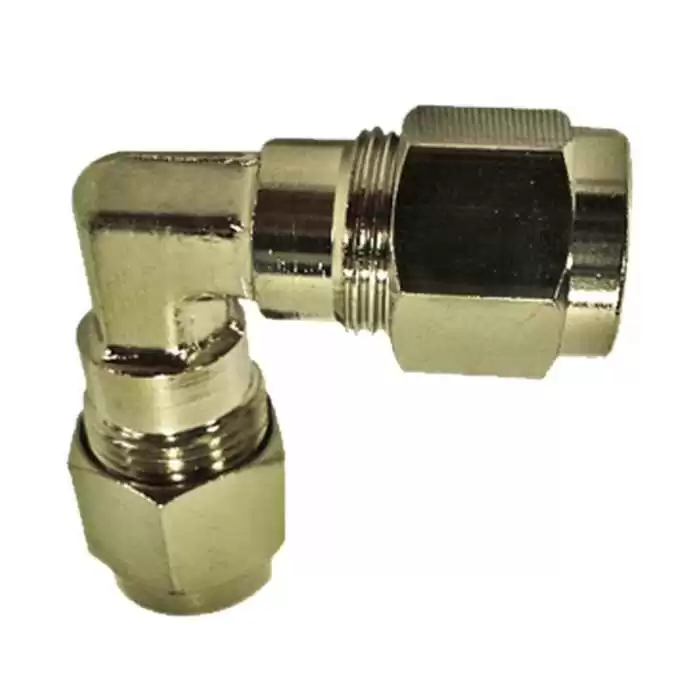

​ ​ ​ ​ ​ ​ ​​​3/8 Inch Compression Elbow

​ ​ ​ ​ ​ ​ ​ ​ ​

​ ​ ​ ​

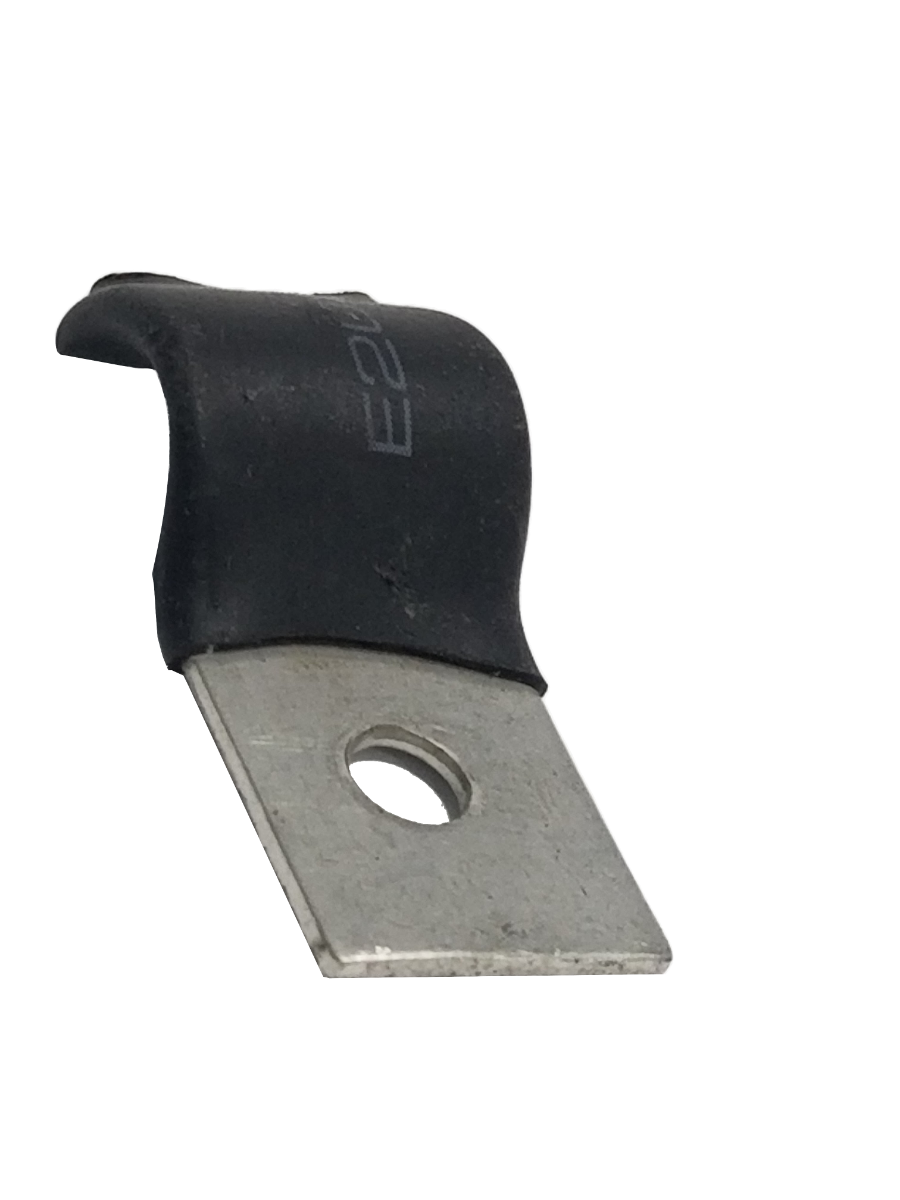

​Mounting Clamps / Hangers - Bag of 20  3/8''  Rubber Coated Stainless Steel

​ ​ ​ ​ ​ ​ ​


Specs And Information

Specs


  • Flow rate (gpm) :  5
  • Filtration : Yes
  • Voltage : 230v ac/460V ac
  • Full load Amps :  12.4/6.2
  • Phase: 3
  • RPM :  1740
  • HP :  5
  • Pump Inlet² :  3/4"
  • Pump Outlet :  3/8"
  • Drive :  Direct
  • By-pass :  Yes
  • Motor type :  TEFC
  • Noise level :  80 DB
  • Oil Required :  Yes
  • Recommended operating Temp. :  33⁰- 160⁰ F

Installing Your Pump

Installing your misting pump involves a few simple steps:

  • Unboxing: Some items are shipped inside pump enclosures.
  • Setting the pump up in its location- Should be level, and well ventilated. Avoid installing the pump in a location that could be damaged if a leak should occur.
  • Connecting to power.
  • Connecting to water and purging air.

Our "Unboxing videos" show how to follow this process for the various pumps we offer.

Unboxing 1500 Premium

Installing Your Lines

Installing your mist line involves a few simple steps:

  • Proper angling of nozzles: Ideally nozzles should be pointed down or out 45° from the covered space.
  • Clamp placement: line clamps should be installed at least 2" away from misting tees and other fittings.
  • Ensure that flexible tubing is cut straight and clean so it can seal properly in the fittings.
  • 1/4" stainless tubing comes pre-machined to attach to push-lock fittings. It should not be cut. Short sections of flexible tubing may be used to make up for gaps or odd-sized distances.
  • Make sure to follow all air purge procedures before pressurizing the system. Air in the lines can cause vibration and blowouts.
  • We strongly advise keeping lines where they are easily accessible for maintenance.  While we take great care to ensure top quality, blowouts and leaks can happen. Do not run lines behind walls or in ceilings where damage may result if a leak occurred.
