Part Number: MC32060
- 14in or 18in Fan with Stainless Steel Misting Fan Ring
- 4 Nozzles Ring for 14in Fan
- 6 Nozzles Ring for 18in Fan
- 0.012 nozzle orifices 10/24 Thread Slots
- Max 200 PSI Misting Pump
- 30 Gallon Tank (optional 50 Gallon available)
- Lasts up to 10 Hours per water fill
Mist Pump Specifications:
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below.)
- Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.5 GPM
- Full load amps. (110V ̴̴ 220V AC/ 12V DC): Refer manufacturing label on the pump
- Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)
- Noise Level: appx. 35db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

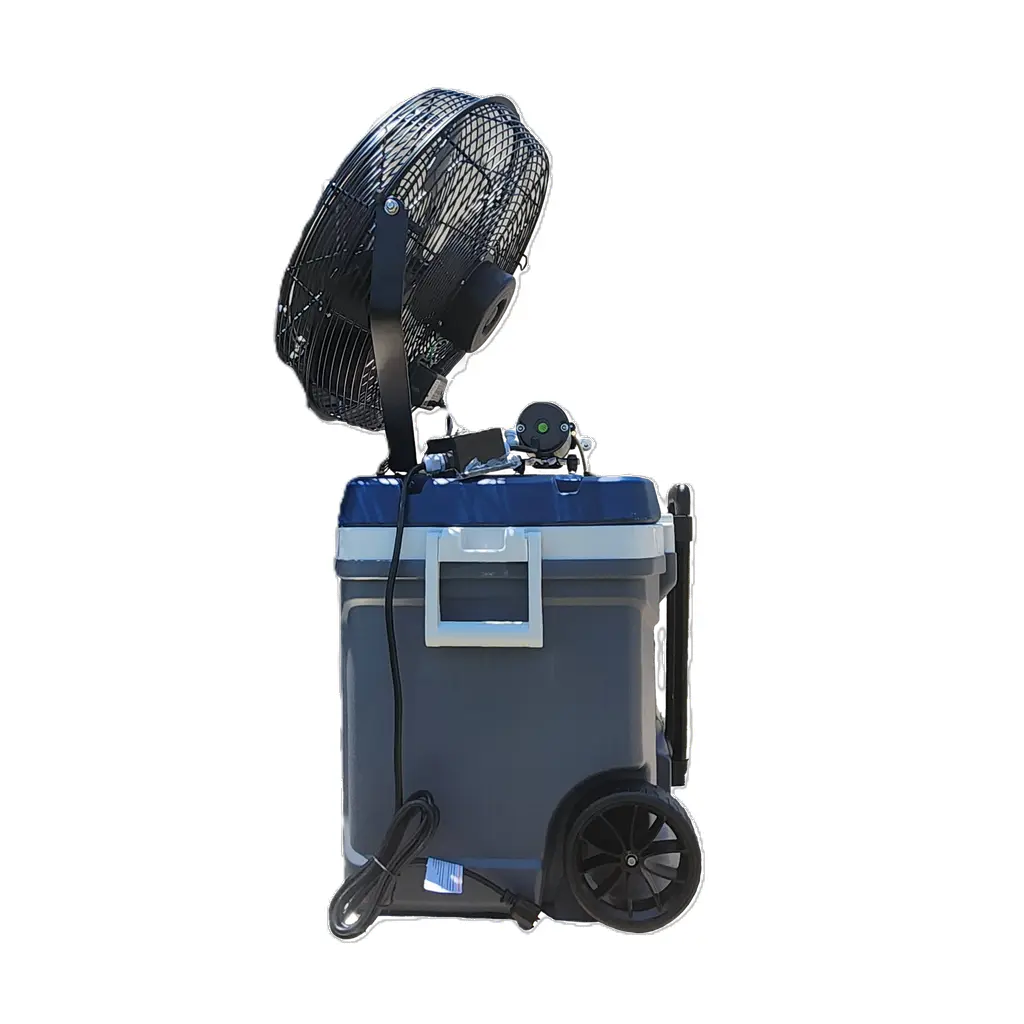

Portable Misting System - Features:
- Standard 110V (also available in 12V DC)
- DC or AC converter optional
- Weight is approximately 40 pounds
- The packed dimensions are 22” x22” x 36”
- Place 6’-10’ away from desired cooling area
- On a hot day, the mist will evaporate quickly
Stainless Steel Fan Ring Features:
- Made with Industrial Grade 3/8'' Rigid Stainless Steel 316
- Compatible with all High and Mid Pressure Mist Pumps
- Pre-threaded nozzle slots for 10/24 Thread
- Rated for up to 2000 PSI
- Attaches to any wall mount, floor, or pedestal fan
- Includes Push-lock Inlet Fitting
- Nozzles & Fan Sold Separately
- Lifetime Warranty
Outdoor Fan:18-Inch Fan Specifications:
- Size: 18”
- RPM: 1570, AMPS: 2.0, CFM: 6300
- 3-speed Pull chain
- Stainless Steel hardware with Durable
- Corrosion-resistant finish
- Motor with thermal overload protection
- Industrial Grade aluminum blade
- 9ft Heavy Duty cord with cord wrap
- Quiet operation
- For Indoor/ Outdoor Use
- Osha Approved Grill
