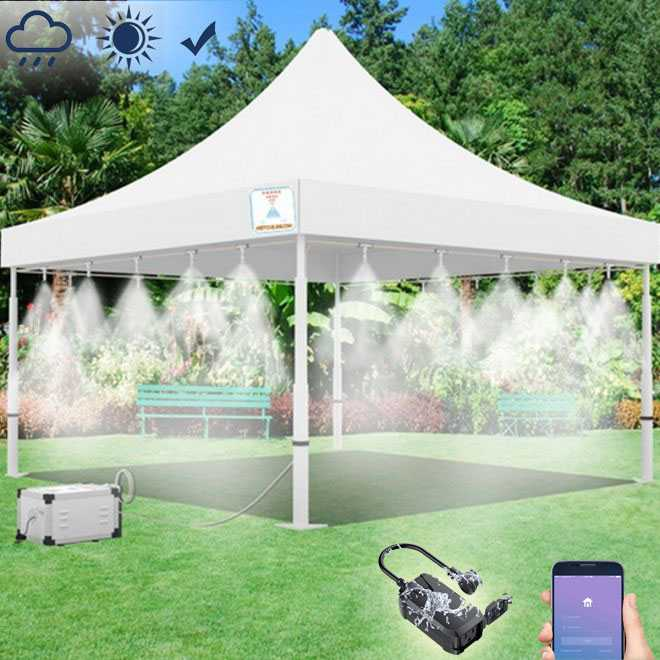

High Pressure Mist Tent
Misting Tent | Portable Misting System | Sports Misting System
- 10’ x 10’ Tent (20 Nozzle System) or,
- 10’ x 20’ Tent (30 Nozzle System)
- 1500 PSI Misting Pump
- High-Pressure Misting System with Push Lock Fittings
- WiFi - Enabled with Smartphone Controller (Optional)
*Note: 2 Mistcooling 8in x 8in branding logo on the tent corners.
Specifications of Tent:
- Aluminum Tent Frame is durable and will not rust
- Heavy-duty quality Canvas will last for years
- Accommodates 16 to 35 people depending upon seating style
- Easily Customize with multi-color Logos and Text
- Blue canvas is also available
- Weighs 40 Pounds
- Comes with a carrying bag
Misting Pump Features:
- MADE IN USA Pump
- Built-in Thermal Safety
- 110vac
- Wall Mountable
Mist Pump Specifications:
- Maximum Pump Speed (0.15/0.30 GPM): 1800 RPM
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
- Maximum Outlet Pressure: 1500 PSI
- Maximum Flow: 0.15 & 0.30 GPM (Refer to manufacturing label on pump)
- Full load amps. (0.15/0.30 GPM): 1.38 Amps/2.15 Amps
- Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
- Noise Level: 75db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

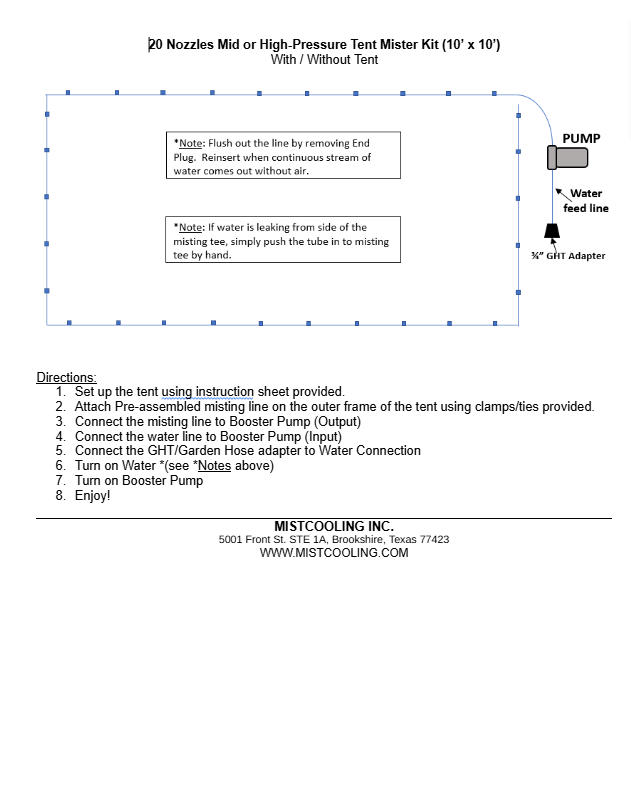

Installation

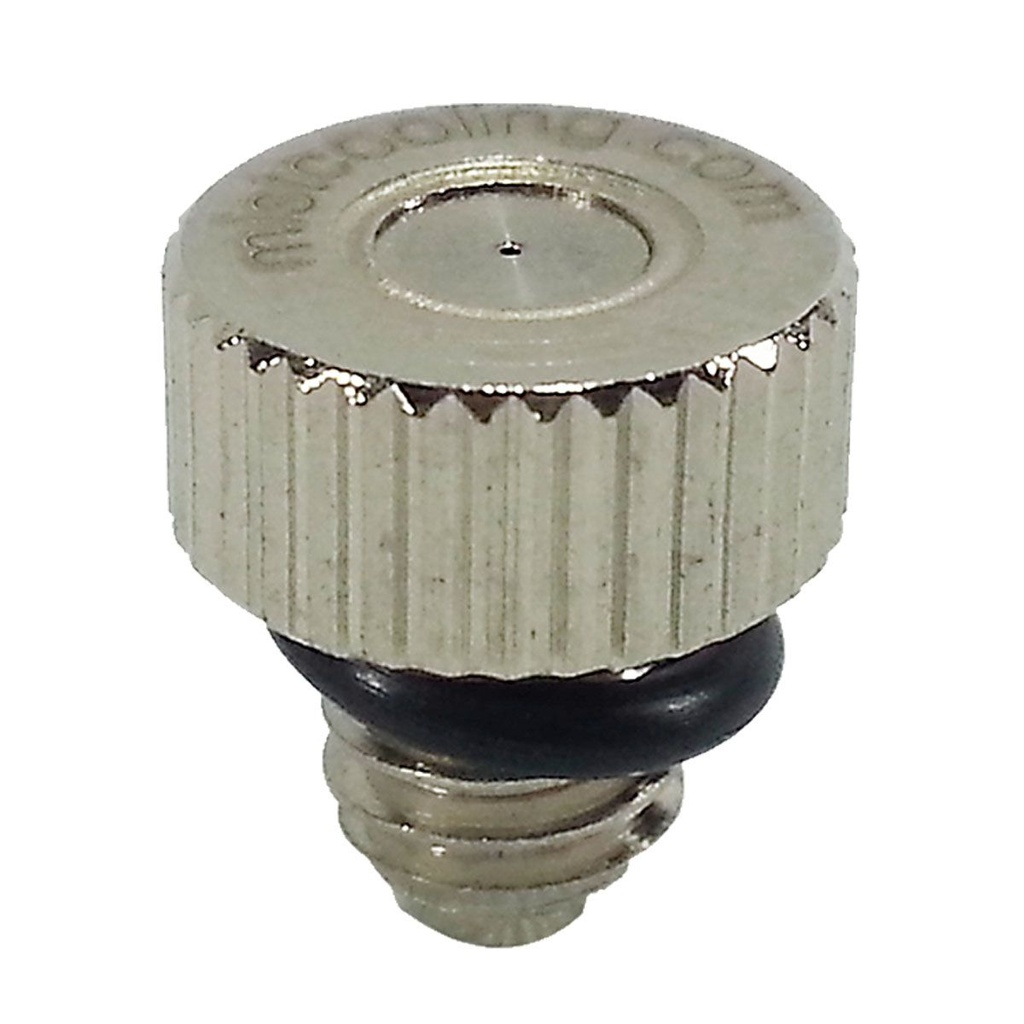

High Pressure Nozzles And Tees
- 0.006 Inch - High Pressure
- Stainless Steel construction - corrosion resistant
- 10/24 Thread Size
- Recommended Pressure: For high pressure misting systems (1000 -1500 PSI)
- Full cone pattern spray 60-70 degrees
- 0.012 GPM (Gallons Per Minute) at 1000 PSI

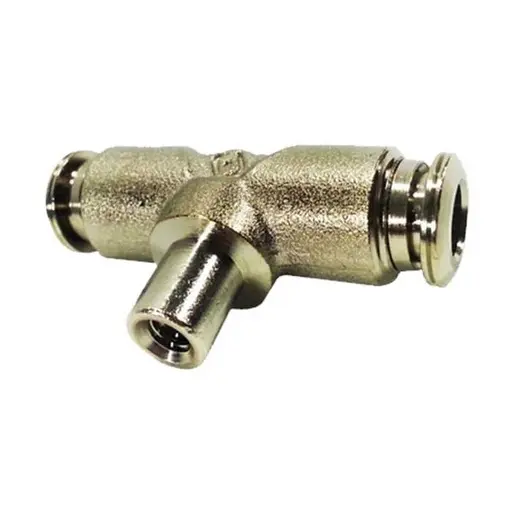

Misting Tee for Mid Pressure Misting Systems - Metal
- 1/4" Misting Tee
- Push Lock / Slip Lock
- Nickel Plated Brass
- 1500PSI Rated
- 10/24 Nozzle Thread
Applications:
- High-pressure misting system
- Flexible tubing
- SS tubing

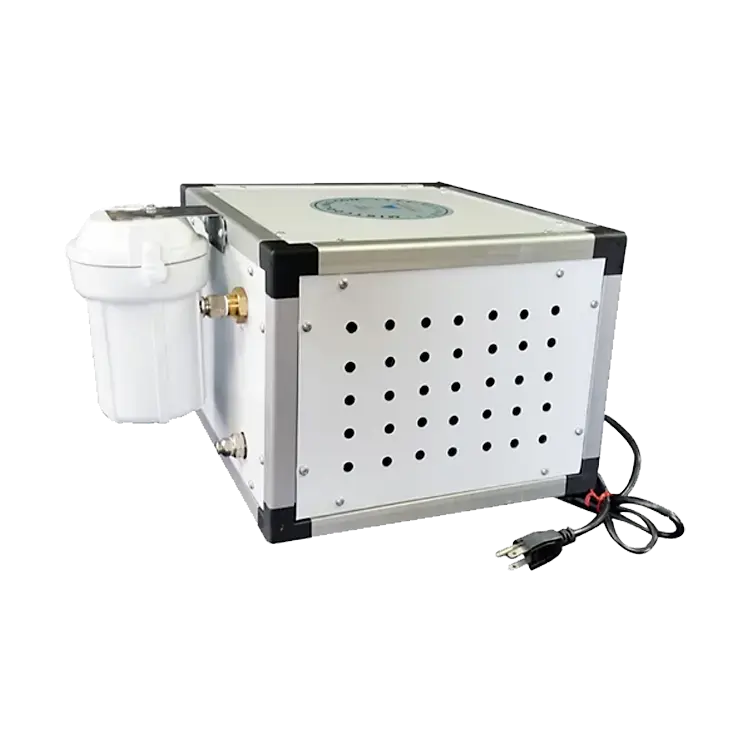

1500 PSI Pump
- 1500psi oil-less
- 0.15 GPM
- Max Pressure (psi)¹ : 1500
- Maximum number of nozzles: 20
- Flow rate (gpm) : 0.15
- Filtration : 5 Micron
- Voltage : 110 V AC
- Full load Amps : 1.38
- RPM : 1600
- HP : 0.25
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : Yes
- By-pass : Yes
- Motor type : Enclosed
- Noise level : 60-70 DB
- Oil Less : Yes
- Recommended operating Temp. : 33⁰- 140⁰ F
- Dimensions (inch) : 15.5 x 14 x 10
- Weight (lbs.) : 17
- Max Pressure (psi)¹ : 1500
- 1 Year Warranty

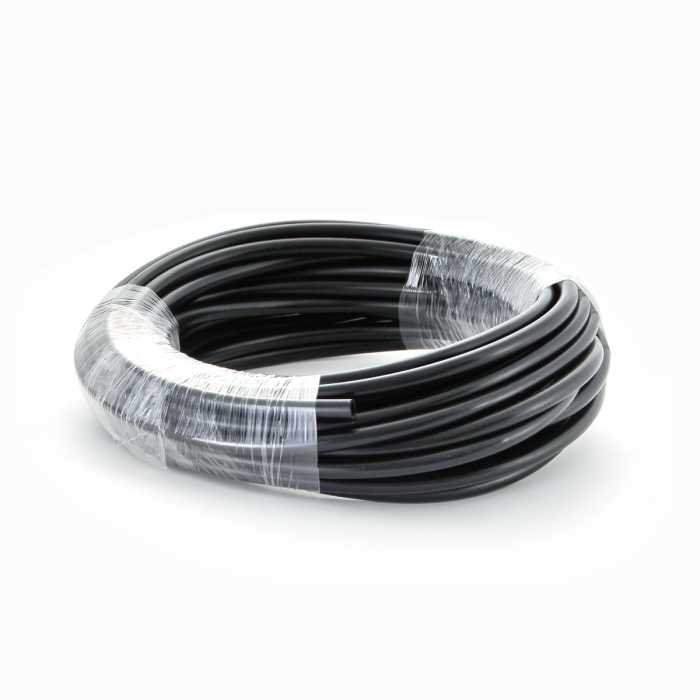

Tubing - High Pressure - 1/4 Inch
- High-Pressure Nylon Tubing
- 1/4 Inch OD
- 0.050 Inch Tube Wall
- 0.15 Inch ID
- Black Color
- Rating: 1500 PSI
Misting Tent
Misting Tent | Portable Misting System | Sports Misting System
- 10’ x 10’ Tent (20 Nozzle System) or,
- 10’ x 20’ Tent (30 Nozzle System)
- 1500 PSI Misting Pump
- High-Pressure Misting System with Push Lock Fittings
- WiFi - Enabled with Smartphone Controller (Optional)
*Note: 2 Mistcooling 8in x 8in branding logo on the tent corners.
Specifications of Tent:
- Aluminum Tent Frame is durable and will not rust
- Heavy-duty quality Canvas will last for years
- Accommodates 16 to 35 people depending upon seating style
- Easily Customize with multi-color Logos and Text
- Blue canvas is also available
- Weighs 40 Pounds
- Comes with a carrying bag
