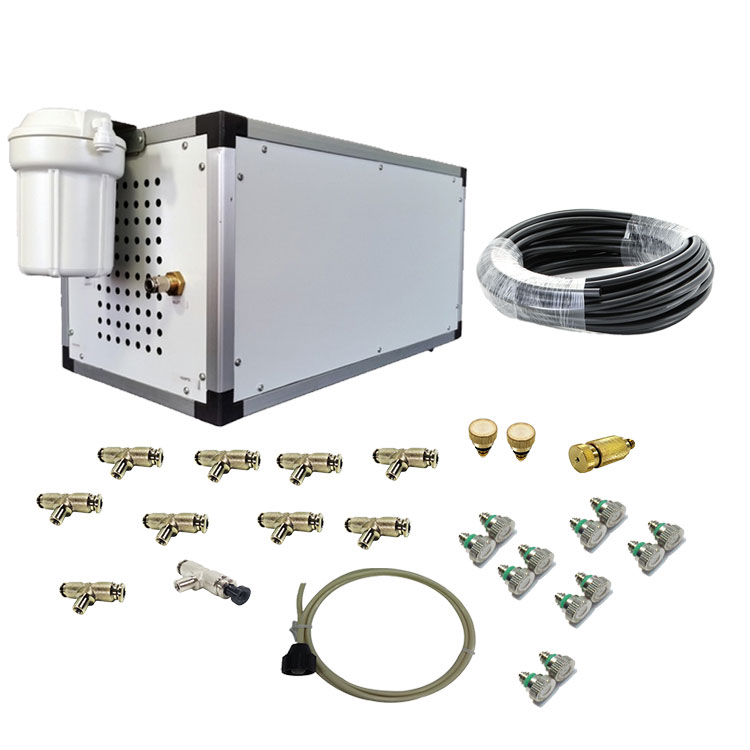

1500 Psi Premium (Oil Based) (0.5,1,2 GPM)
High Pressure Nozzles And Tees

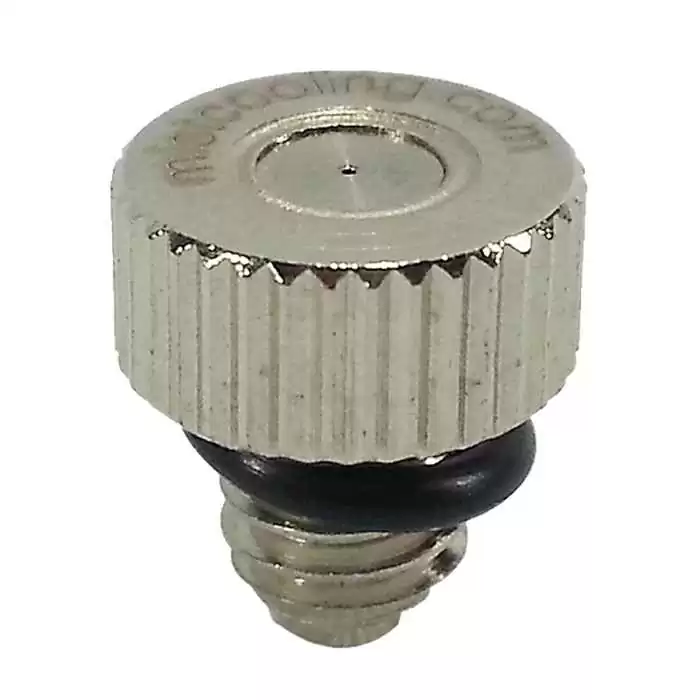

- 0.006 Inch - High Pressure (Standard size for all high pressure systems)
- Stainless Steel construction - corrosion resistant
- 10/24 Thread Size
- Recommended Pressure: For high pressure misting systems (1000 -1500 PSI)
- Full cone pattern spray 60-70 degrees
- 0.012 GPM (Gallons Per Minute) at 1000 PSI

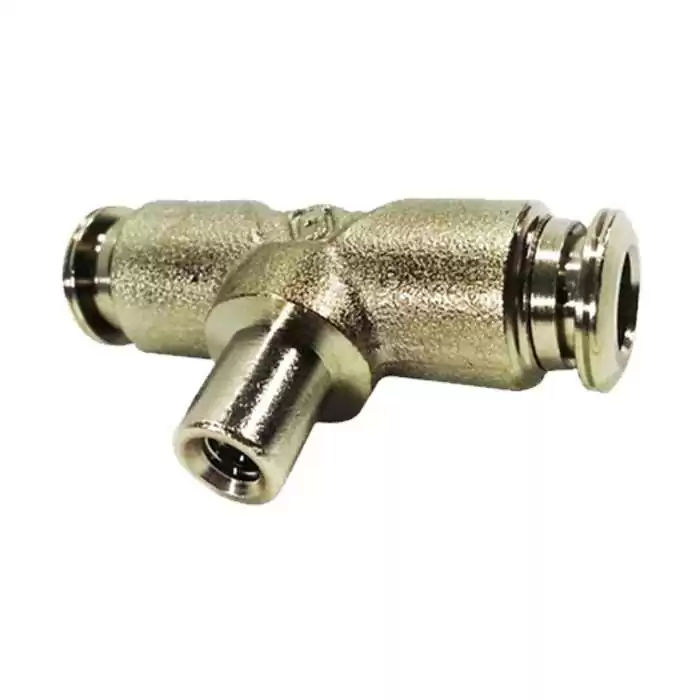

- 1/4" Misting Tee
- Push Lock / Slip Lock
- Nickel Plated Brass
- 1500PSI Rated
- 10/24 Nozzle Thread
High Pressure Misting System Accessory Kit
- 1 - Tube Cutter
- 1 - Drain Valve Fitting - 10/24 Thread
- 1 - End Plug - 1/4 Inch
- 2 - Nozzle Plugs - 10/24 Thread
- 2 - Extra Nozzles - 10/24 Thread
Free Smart Phone Controller
- Specifications: 2 Power Outlets 10 Amps 120VAC, 60 Hz
- For Misting Pump* and/or Mistcooling Fan with the Outdoor Rated Smart Phone Controller.
- No setup required, just plug and play, with customizable settings, display, and scenes
- Works with Siri and Amazon Alexa.
- Can be used with these Misting Pumps/misting Fans: 250 PSI Mistcooling Pumps 1500 PSI Misting Pumps up to 1 GPM
- Cannot be used with 2 GPM and Higher Pump
- Can be used with all Mistcooling Outdoor rated fans
- Requirements to Operate: Home Wi-Fi® (802.11 B/G/N) WPA or WPA2 Network Security App Download Smart Phone with IOS 8.1 or later

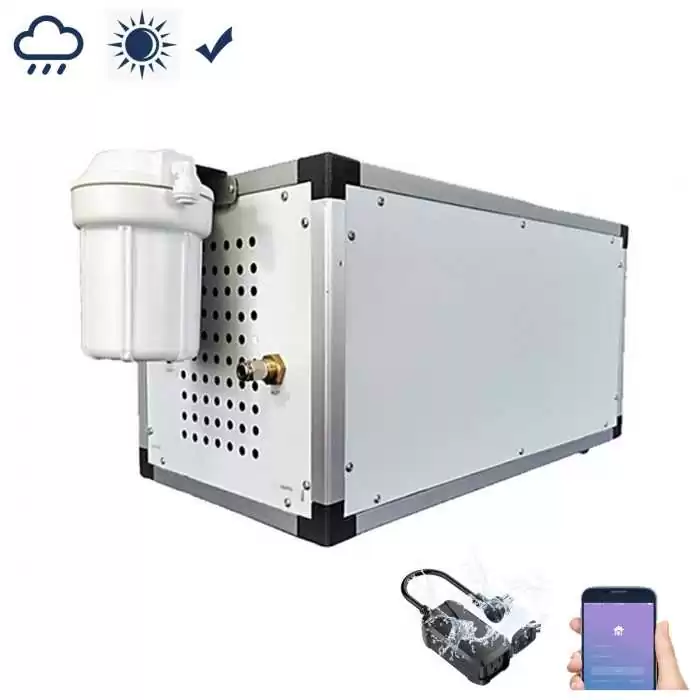

1500 Psi Pump (0.5, 1, 2 Gpm)
0.5 GPM
- Maximum number of nozzles : 45
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 5.8
- RPM : 1750
- HP : 0.5
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 52
- 1 Year Warranty
1 GPM
- Maximum number of nozzles : 80
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 9.2
- RPM : 1745
- HP : 1
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 61
- 1 Year Warranty
2 GPM
- Maximum number of nozzles : 160
- Flow rate (gpm) : 2
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 16.5
- RPM : 1745
- HP : 2
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 76
- Flow rate (gpm) : 2
Tubing - High Pressure - 1/4 Inch
- 1/4 Inch OD
- 0.050 Inch Tube Wall
- 0.015 Inch ID
- White Color
- Rating: 1500 PSI
- Min Burst Pressure: 2000PSI at 75 Degrees F
Commercial Filter for Mist Pumps - 5 Inch
- Inlet: 3/4'' Garden Hose Fitting
- Outlet: 3/8'' Tube for Pump inlet
- Threaded ends on filter inlet/outlet
- Fittings can be replaced for other sizes
- Replaceable 6 month sediment cartridge
Installing Your Pump
Installing your misting pump involves a few simple steps:
- Unboxing: Some items are shipped inside pump enclosures.
- Setting the pump up in its location- Should be level, and well ventilated. Avoid installing the pump in a location that could be damaged if a leak should occur.
- Connecting to power.
- Connecting to water and purging air.
Our "Unboxing videos" show how to follow this process for the various pumps we offer.
Installing Your Lines
Installing your mist line involves a few simple steps:
- Proper angling of nozzles: Ideally nozzles should be pointed down or out 45° from the covered space.
- Clamp placement: line clamps should be installed at least 2" away from misting tees and other fittings.
- Ensure that flexible tubing is cut straight and clean so it can seal properly in the fittings.

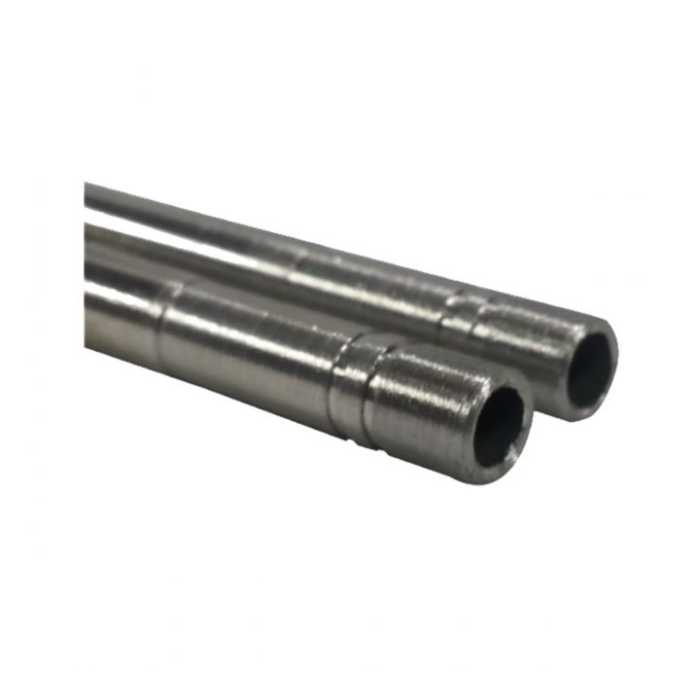

- 1/4" stainless tubing comes pre-machined to attach to push-lock fittings. It should not be cut. Short sections of flexible tubing may be used to make up for gaps or odd-sized distances.
- Make sure to follow all air purge procedures before pressurizing the system. Air in the lines can cause vibration and blowouts.
- We strongly advise keeping lines where they are easily accessible for maintenance. While we take great care to ensure top quality, blowouts and leaks can happen. Do not run lines behind walls or in ceilings where damage may result if a leak occurred.
