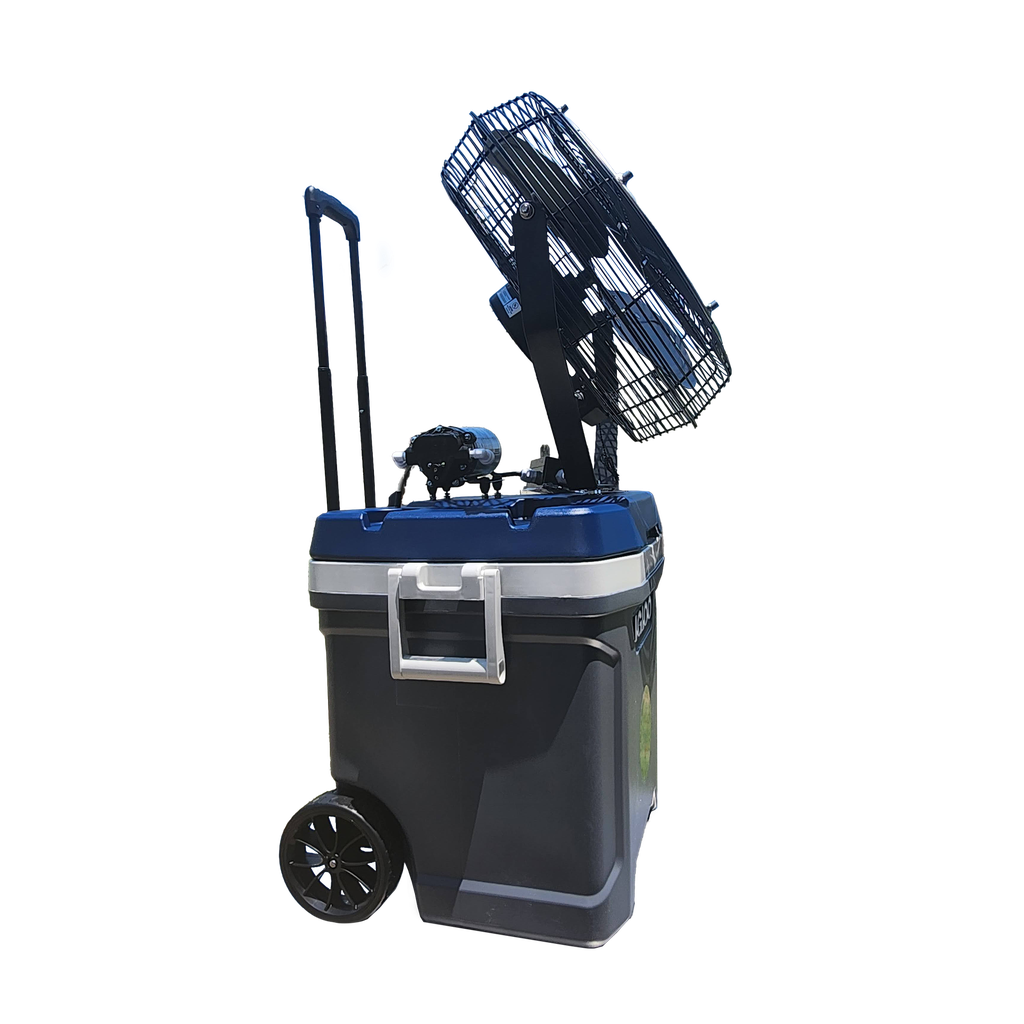

Portable Misting Fan - CoolerMax
Portable Misting Fan | Outdoor fan
14in or 18in Fan with Stainless Steel Misting Fan Ring
4 Nozzles Ring for 14in Fan
6 Nozzles Ring for 18in Fan
0.012 nozzle orifices 10/24 Thread Slots
Max 200 PSI Misting Pump
15 Gallon Tank (62 quarts)
Lasts up to 7 Hours per water fill
Portable Misting System - Features:
Standard 110V (also available in 12V DC)
DC or AC converter optional
Weight is approximately 40 pounds
The packed dimensions are 22” x22” x 36”
Place 6’-10’ away from desired cooling area
On a hot day, the mist will evaporate quickly
Mist Pump Specifications:
Maximum Inlet Pressure: 100 PSI
Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below.)
Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)
Maximum Flow: 0.5 GPM
Full load amps. (110V ̴̴ 220V AC/ 12V DC): Refer manufacturing label on the pump
Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)
Noise Level: appx. 35db
Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
Outdoor Fan:18-Inch Fan Specifications:
Size: 18”
RPM: 1570, AMPS: 2.0, CFM: 6300
3-speed Pull chain
Stainless Steel hardware with Durable
Corrosion-resistant finish
Motor with thermal overload protection
Industrial Grade aluminum blade
9ft Heavy Duty cord with cord wrap
Quiet operation
For Indoor/ Outdoor Use
Osha Approved Grill
Stainless Steel Fan Misting Ring Features:
Made with Industrial Grade 3/8'' Rigid Stainless Steel 316
Compatible with all High and Mid Pressure Mist Pumps
Pre-threaded nozzle slots for 10/24 Thread
Rated for up to 2000 PSI
Attaches to any wall mount, floor, or pedestal fan
Includes Push-lock Inlet Fitting
Nozzles & Fan Sold Separately
Lifetime Warranty
Specifications
| Fan Size | Fan Size: 14 Inch Fan - 4 Nozzles - 12 Inch Diameter Ring or Fan Size: 18 Inch Fan - 6 Nozzles - 15 inch Diameter Ring +$150.00 |
| 12V DC Converter - Coolermax | None or 12vDC Power Inverter or Portable Power Generator with Carrying Handle (110vac) |
| Add 20 Nozzle Misting Tent Kit Extension | Misting Tent Kit & Expansion fittings |
| Tags | |
|---|---|
| Tags | |
It works with most 1/4" OD flexible tubing.
Depending on the Misting Pump size; Mid or High pressure. These would work for a softening system.
Mid Pressure: Calcium Inhibitor Filter - Poly Phosphate Filter: Link: https://mistcooling.com/misting-calcium-inhibitor-filter-poly-phosphate-filter.html
High Pressure: 5in Commercial Filter. Link: https://mistcooling.com/commercial-filter-for-mist-pumps.html
Any large than the filters mentioned would be recommended for Hard Water.
The cartridge inside the housing should be changed every 6 months
If you are on the website scowl down to Description or Specifications.
Filter housings are rated for up to 125psi.
5 microns. You don't need to worry much about the GPM as this is used before the pump. You just want to make sure that the filter is changed every six months so that the unit doesn't struggle to get water through to the pump.
