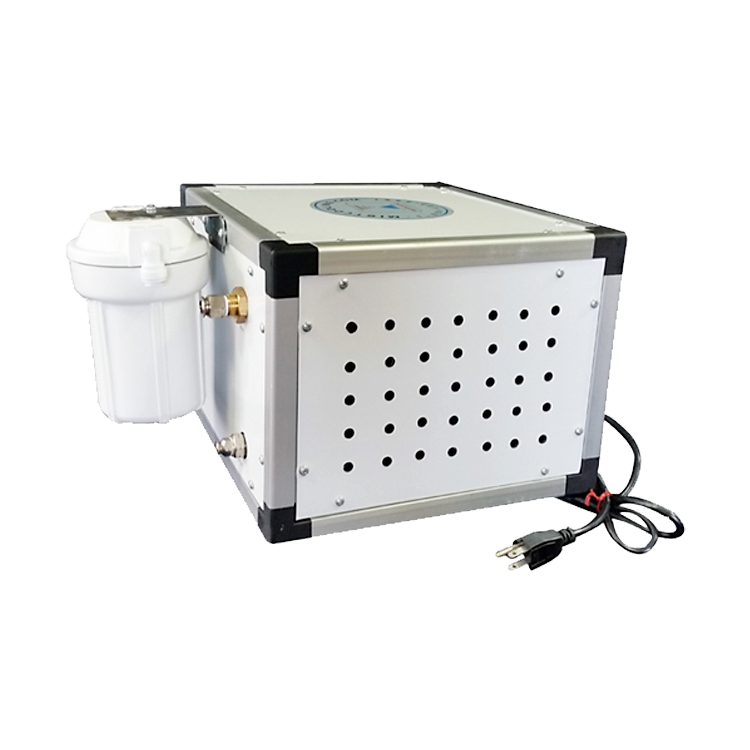

Misting Pump Multi Zone - 3 Multiple Misting Zones

Misting Pump Multi Zone - 3 Multiple Misting Zones

https://www.mistcooling.com/web/image/product.template/485/image_1920?unique=06c6c96
MC14224

The most common use of this pump is for creating independent residential misting zones including patios, pool areas, gazebos, and commercial installations like outdoor restaurants

Features:

  • 1500 PSI output
  • 3 multiple misting zone
  • Quiet misting pump operation
  • Adjustable flow rate
  • Filtration included
  • Built-in solenoid
  • Pressure bypass included
  • Thermal safety switch included
  • Pressure gauge
Mist Pump Specifications:

  • Maximum Outlet Pressure: 1500PSI
  • Maximum Pump Speed (0.50/ 1 / 2 gpm.): 1750/ 1750/ 1750RPM
  • Maximum Inlet Pressure: 125PSI
  • Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
  • Maximum Flow: 1/2GPM, 1 GPM, or 2GPM (Refer to manufacturing label on pump)
  • Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
  • Oil Type: Synthetic Motor Oil
  • Oil Capacity: 11.8oz
  • Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

$ 2,599.00 2599.0 USD $ 2,599.00

$ 2,599.00

Not Available For Sale

  • Multi Zone Misting Pump - Capacity

This combination does not exist.

Contact Us



1500psi oil-based pumps - 2GPM

Maximum number of nozzles : 160

  • Flow rate (gpm) :  2
  • Filtration :  5 Micron
  • Voltage : 110V AC
  • Full load Amps :  16.5
  • RPM :  1745
  • HP :  2
  • Pump Inlet² :  3/8" or 1/4" pushlock
  • Pump Outlet :  3/8" or 1/4" pushlock
  • Solenoid :  Yes
  • Pressure switch/ No water cut-off :  Yes
  • Drive :  Direct
  • Thermal safety Switch³ :  No
  • By-pass :  Yes
  • Motor type :  TEFC
  • Noise level :  50-60 DB
  • Oil Less :  No
  • Recommended operating Temp. :  33⁰- 160⁰ F
  • Dimensions (inch) :  26.5 x 15.5 x 13
  • Weight (lbs.) : 76

1 Year Warranty

1500psi oil-based pumps - 1GPM

Maximum number of nozzles : 80 ​

  •  Flow rate (gpm) :  1
  • Filtration :  5 Micron
  • Voltage : 110V AC
  • Full load Amps :  9.2
  • RPM :  1745
  • HP :  1
  • Pump Inlet² :  3/8" or 1/4" pushlock
  • Pump Outlet :  3/8" or 1/4" pushlock
  • Solenoid :  Yes
  • Pressure switch/ No water cut-off :  Yes
  • Drive :  Direct
  • Thermal safety Switch³ :  No
  • By-pass :  Yes
  • Motor type :  TEFC
  • Noise level :  50-60 DB
  • Oil Less :  No
  • Recommended operating Temp. :  33⁰- 160⁰ F
  • Dimensions (inch) :  26.5 x 15.5 x 13
  • Weight (lbs.) : 61

1 Year Warranty

1500psi oil-based pumps - 0.5 GPM

Maximum number of nozzles : 45​

  • Flow rate (gpm) :  1
  • Filtration :  5 Micron
  • Voltage : 110V AC
  • Full load Amps :  5.8
  • RPM :  1750
  • HP :  0.5
  • Pump Inlet² :  3/8" or 1/4" pushlock
  • Pump Outlet :  3/8" or 1/4" pushlock
  • Solenoid :  Yes
  • Pressure switch/ No water cut-off :  Yes
  • Drive :  Direct
  • Thermal safety Switch³ :  No
  • By-pass :  Yes
  • Motor type :  TEFC
  • Noise level :  50-60 DB
  • Oil Less :  No
  • Recommended operating Temp. :  33⁰- 160⁰ F
  • Dimensions (inch) :  26.5 x 15.5 x 13
  • Weight (lbs.) : 52

1 Year Warranty

200 PSI Pumps

  • Maximum Inlet Pressure: 100 PSI
  • Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below)
  • Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)
  • Maximum Flow: 0.5 GPM
  • Full load amps. (110V ̴̴ 220V AC/ 12V DC): Refer manufacturing label on the pump
  • Voltage: 110V-220V AC/ 12V DC
  • Noise Level: approx. 35db
  • Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

250 PSI Pumps

  • Maximum Inlet Pressure: 100 PSI
  • Minimum Inlet Pressure: Self-priming
  • Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)
  • Maximum Flow: 0.9 GPM
  • Full load Amps. 110V AC: 0.7 Amps12V DC: 4.0 Amps
  • Voltage: 110V-220V AC/ 12V DC
  • Noise Level: 40db
  • Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

1000 PSI Pumps

  • Maximum Pump Speed (0.15/ 0.30 GPM): 1600/ 1700 RPM
  • Maximum Inlet Pressure: 100 PSI
  • Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded
  • Maximum Outlet Pressure: 1000 PSI
  • Maximum Flow: 0.15 GPM, 0.30 GPM (Refer to manufacturing label on pump)
  • Full load Amps: (0.15/ 0.30 GPM): 1.38/ 2.00 Amps
  • Voltage: 110V/ 220V AC/ 12V DC (Refer manufacturing label on the pump)
  • Noise Level: 75 DB
  • Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

1500 PSI Pump

  • Maximum Outlet Pressure: 1500 PSI
  • Maximum Pump Speed (0.50/ 1 / 2 GPM): 1750/ 1750/ 1750 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Minimum Inlet Pressure: 40 PSI (Based on setting on Pressure switch) or Flooded if Pressure switch is bypassed
  • Maximum Flow: 0.50, 1 & 2 GPM (Refer to manufacturing label on pump)
  • Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
  • Oil Type: AW-100
  • Oil Capacity: 11.8oz
  • Maximum Fluid Temperature: For Room Temperature / Cold Water applications only.  (Please refer page 19 for full specs of the pump)

1500 PSI High Pressure Mist Pump

 FLOW RATES: 0.15 and 0.30 GPM (Oil Less)


Discover more

1500 PSI High Pressure Mist Pump

Flow Rates: 0.50, 1, and 2 GPM


Manual


1500 PSI High Pressure Mist Pump

Flow Rates: 3 GPM


Manual

Specifications

Multi Zone Misting Pump - Capacity 0.5 GPM, 1 GPM, 2 GPM
