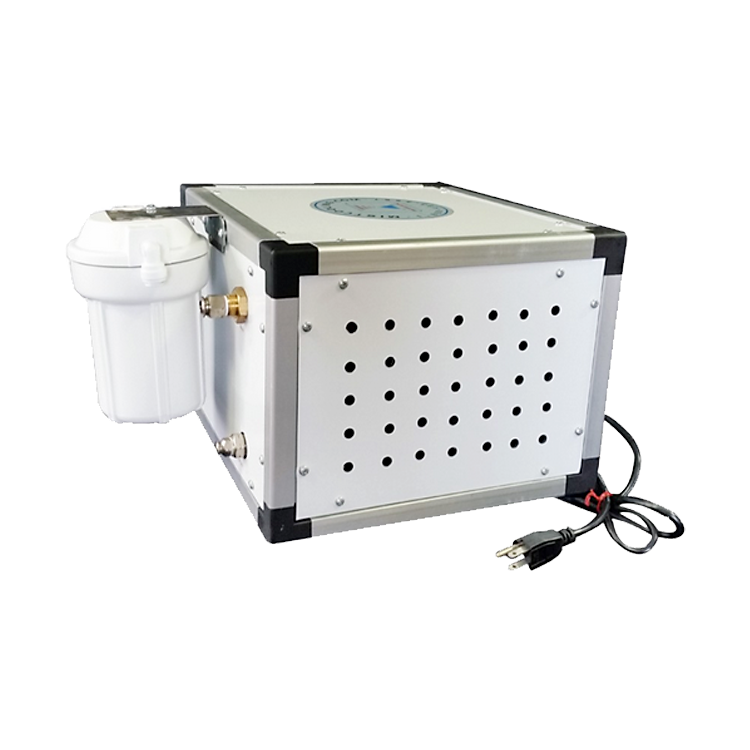

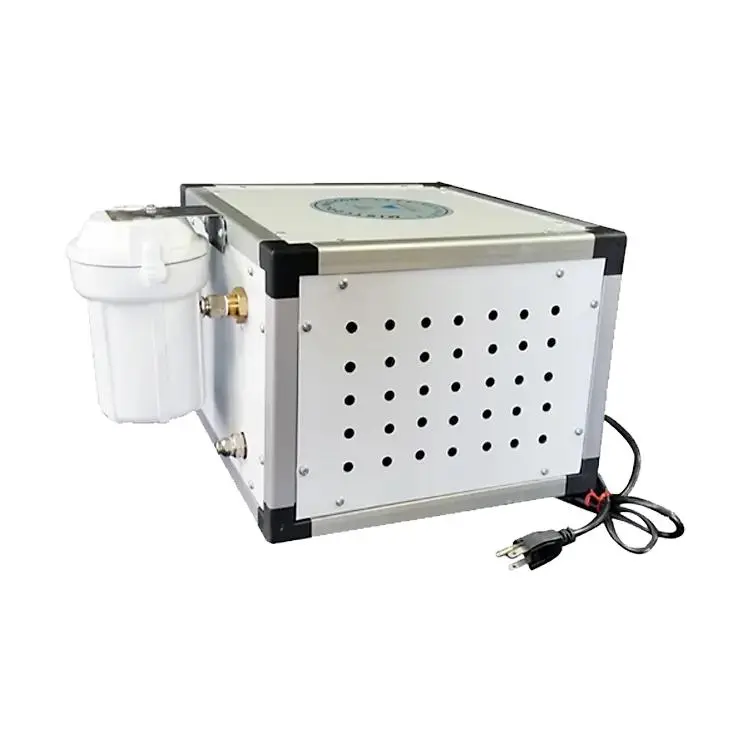

Misting Pump Multi Zone - 3 Multiple Misting Zones
The most common use of this pump is for creating independent residential misting zones including patios, pool areas, gazebos, and commercial installations like outdoor restaurants
Features:
1500 PSI output
3 multiple misting zone
Quiet misting pump operation
Adjustable flow rate
Filtration included
Built-in solenoid
Pressure bypass included
Thermal safety switch included
Pressure gauge
MISTING PUMP WEIGHT & DIMENSIONS
Mist Pump Specifications:
Maximum Outlet Pressure: 1500PSI
Maximum Pump Speed (0.50/ 1 / 2 gpm.): 1750/ 1750/ 1750RPM
Maximum Inlet Pressure: 125PSI
Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
Maximum Flow: 1/2GPM, 1 GPM, or 2GPM (Refer to manufacturing label on pump)
Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
Oil Type: Synthetic Motor Oil
Oil Capacity: 11.8oz
Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
1500psi oil-based pumps - 2GPM
Maximum number of nozzles : 160
-
Flow rate (gpm) : 2
-
Filtration :
5 Micron
-
Voltage :
110V AC
- Full load Amps : 16.5
- RPM : 1745
- HP : 2
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
-
Weight (lbs.) :
76
1500psi oil-based pumps - 1GPM
Maximum number of nozzles : 80
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 9.2
- RPM : 1745
- HP : 1
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 61
1500psi oil-based pumps - 0.5 GPM
Maximum number of nozzles : 45
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 5.8
- RPM :
1750
- HP : 0.5
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 52
200 PSI Pumps
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below)
- Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.5 GPM
- Full load amps. (110V ̴̴ 220V AC/ 12V DC): Refer manufacturing label on the pump
- Voltage: 110V-220V AC/ 12V DC
- Noise Level: approx. 35db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
250 PSI Pumps
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming
- Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.9 GPM
- Full load Amps. 110V AC: 0.7 Amps12V DC: 4.0 Amps
- Voltage: 110V-220V AC/ 12V DC
- Noise Level: 40db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
1000 PSI Pumps
- Maximum Pump Speed (0.15/ 0.30 GPM): 1600/ 1700 RPM
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded
- Maximum Outlet Pressure: 1000 PSI
- Maximum Flow: 0.15 GPM, 0.30 GPM (Refer to manufacturing label on pump)
- Full load Amps: (0.15/ 0.30 GPM): 1.38/ 2.00 Amps
- Voltage: 110V/ 220V AC/ 12V DC (Refer manufacturing label on the pump)
- Noise Level: 75 DB
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
1500 PSI Pump
- Maximum Outlet Pressure: 1500 PSI
- Maximum Pump Speed (0.50/ 1 / 2 GPM): 1750/ 1750/ 1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 40 PSI (Based on setting on Pressure switch) or Flooded if Pressure switch is bypassed
- Maximum Flow: 0.50, 1 & 2 GPM (Refer to manufacturing label on pump)
- Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
- Oil Type: AW-100
- Oil Capacity: 11.8oz
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only. (Please refer page 19 for full specs of the pump)
Specifications
| Multi Zone Misting Pump - Capacity | 0.5 GPM or 1 GPM or 2 GPM |
| Tags | |
|---|---|
| Tags | |
It works with most 1/4" OD flexible tubing.
Depending on the Misting Pump size; Mid or High pressure. These would work for a softening system.
Mid Pressure: Calcium Inhibitor Filter - Poly Phosphate Filter: Link: https://mistcooling.com/misting-calcium-inhibitor-filter-poly-phosphate-filter.html
High Pressure: 5in Commercial Filter. Link: https://mistcooling.com/commercial-filter-for-mist-pumps.html
Any large than the filters mentioned would be recommended for Hard Water.
The cartridge inside the housing should be changed every 6 months
If you are on the website scowl down to Description or Specifications.
Filter housings are rated for up to 125psi.
5 microns. You don't need to worry much about the GPM as this is used before the pump. You just want to make sure that the filter is changed every six months so that the unit doesn't struggle to get water through to the pump.
