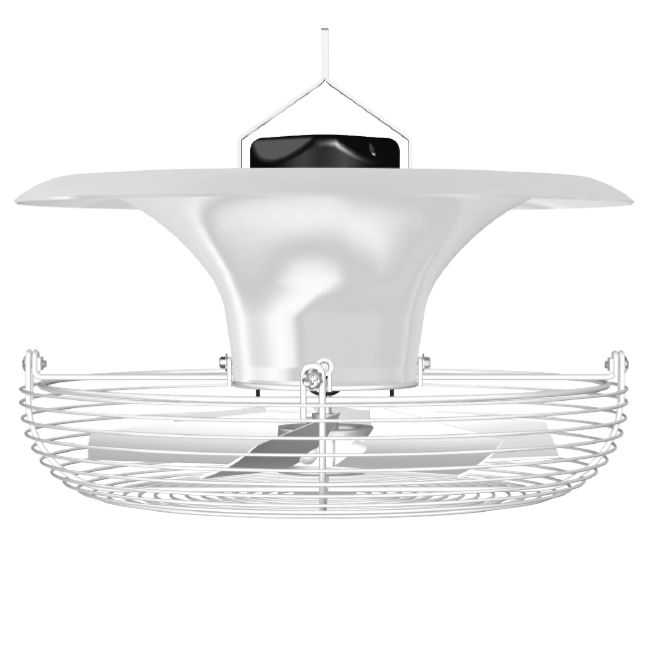

Misting Fan System - 360 Fan - Industrial Misting

Specifications:

• 18'' Diameter high-velocity mist fan
• IP66 rated Gold Star Motor
• Heavy Gauge Steel Guards and Frames
• Precisely contoured blades for efficient air movement
• Diverting Cone: Smooth, for maximum air fluidity
• Diverting Cone: Molded from corrosion-proof UV resistant poly
• Motor: IP66 rated, Dust-tight, Washdown from any angle
• Motor: Totally enclosed, maintenance-free, high-efficiency
• 3 Hanging Options
• Corrosion Proof Stainless Steel Mounting Brackets and Hardware
• 1 Phase
• 1 Speed
• Direct Drive
• Osha requires this fan to be mounted to a minimum of 7 Ft above the floor

Misting Fan Application - Reduces:

• Temp stratification and dead zones
• Moisture condensation
• Heating bills

Provides:

• Even mixing of air
• Healthier, more comfortable environment

Misting Fan Applications:

• Patio Misting System
• Poultry Houses Humidification and Poultry Cooling
• Greenhouses
• Warehouse Cooling System
• Commercial or Industrial Buildings

250 PSI Mist Pump Specifications:

• Maximum Inlet Pressure: 100 PSI
• Minimum Inlet Pressure: Self-priming.
• Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)
• Maximum Flow: 0.9 GPM
• Full load Amps. 110V AC: 0.7 Amps12V DC: 4.0 Amps
• Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)
• Noise Level: 40 DB.
• Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

1500 PSI Mist Pump Specifications:

• Maximum Pump Speed (0.15/ 0.30 GPM.): 1800 RPM
• Maximum Inlet Pressure: 100 PSI
• Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
• Maximum Outlet Pressure: 1500PSI
• Maximum Flow: 0.15 GPM, 0.30 GPM (Refer to manufacturing label on pump)
• Full load amps. (0.15/ 0.30 gpm.): 1.38 Amps. /2.15 Amps
• Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
• Noise Level: 75 DB.
• Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
