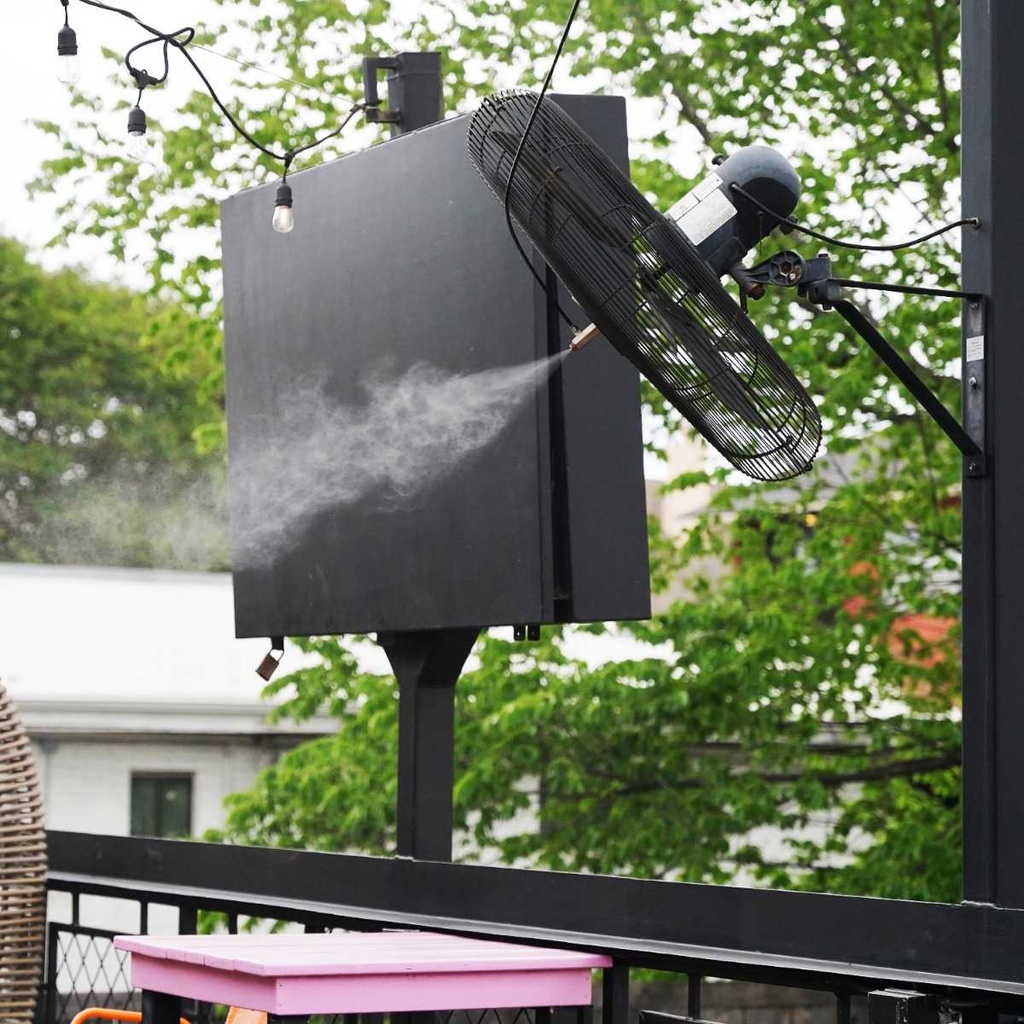

Misting Fan System - 24 Inch Outdoor Fan - 1500 PSI Misting Pump - With Patented Center Hub
SKU: MC24180
Misting Fan Kit Includes:
- 1x Max 1500 PSI High Pressure Misting Pump with No Water Cut-Off, Pressure Bypass, Solenoid, Outdoor Enclosure, and Commercial Filtration
- 1x High Velocity 24'' Dia 3 speed Outdoor Fan with Mounting Bracket - Prewired Patented Center Mist Fan hub Assembly
- 1x Patented Center Mist Fan hub Assembly with Ultrafine KBN RED Mist Nozzle
- 25ft high-pressure 1/4in flexible tubing per fan assembly
- Push-lock fittings
- All necessary misting parts and accessories for installation
- WiFi - Enabled with Smartphone Controller (Optional)
24 Inch Outdoor Fan Features:
- Size: 24”
- Color: White / Black
- RPM: 1110
- AMPS: 2.65
- CFM:9100
- 3-speed Pull chain
- Stainless Steel hardware with Durable Corrosion-resistant finish
- Motor with thermal overload protection
- Industrial Grade aluminum blade
- 10ft Heavy Duty cord with cord wrap
- Quiet operation
- For Indoor/Outdoor Use Osha Approved Grill
Mist Pump Specifications:
- Maximum Pump Speed (0.15/0.30 GPM): 1800 RPM
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
- Maximum Outlet Pressure: 1500 PSI
- Maximum Flow: 0.15 & 0.30 GPM (Refer to manufacturing label on pump)
- Full load amps. (0.15/ 0.30 GPM): 1.38 Amps / 2.15 Amps
- Voltage: 110V / 220V AC (Refer to manufacturing label on the pump)
- Noise Level: 75 db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
Fan Center Hub Specifications:
- Use with KBN Nozzles
- Patented Design
- Stainless Steel Construction
- Easily attaches to most fans
- Can work at Low, Medium & High Pressure
| Number Of 24 Inch Fans W/ Center HUB | 1 Fan, 2 Fans, 3 Fans, 4 Fans, 5 Fans, 6 Fans, 7 Fans, 8 Fans, 9 Fans, 10 Fans |
Want to install 1 24"mist OSC fan on each corner of a 30 x 50 pavilion. how far away can the pressure pump be and do I need to run a 1/4" line to each fan from the pump or can I run a larger line and branch off to each fan
You can run the line continuously from each fan using coupling tee's. The pump can be as far as 150 feet away from the first nozzle.
What is your warranty on the 1500 p.s.i.pump and 24" OSC fans
One year warranty on the pump and the fans. Please see our warranty page for more details.
