Misting Fan Kit - 24 Inch OSC - Misting pump
Want to install 1 24"mist OSC fan on each corner of a 30 x 50 pavilion. how far away can the pressure pump be and do I need to run a 1/4" line to each fan from the pump or can I run a larger line and branch off to each fan
You can run the line continuously from each fan using coupling tee's. The pump can be as far as 150 feet away from the first nozzle.
What is your warranty on the 1500 p.s.i.pump and 24" OSC fans
One year warranty on the pump and the fans. Please see our warranty page for more details.
Does it have to be wall mounted?
Yes these are considered wall mount fans. Bracket can also be mounted on the ceiling with fan slightly tilted down
How far apart should they be spaced?
Fans should be placed 20-25 Feet apart
Is this battery powered and is the battery rechargeable?
No this is not battery powered. The fan must be plugged into a 110v outlet
If you install a product high, does it have an accessible on and off switch?
This fan has a pull chain power and speed option. You can always add additional pull chain to desired length.

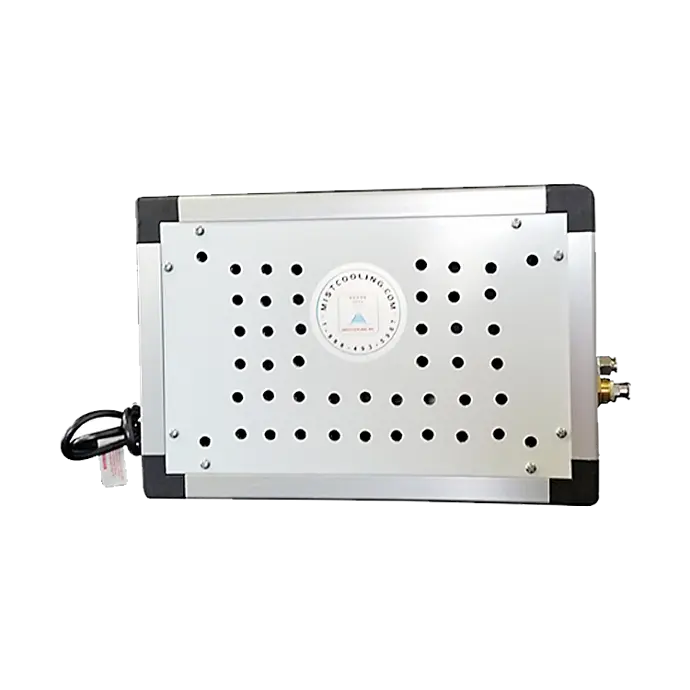

250 PSI Pumps
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming
- Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.9 GPM
- Full load Amps. 110V AC: 0.7 Amps12V DC: 4.0 Amps
- Voltage: 110V-220V AC/ 12V DC
- Noise Level: 40db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

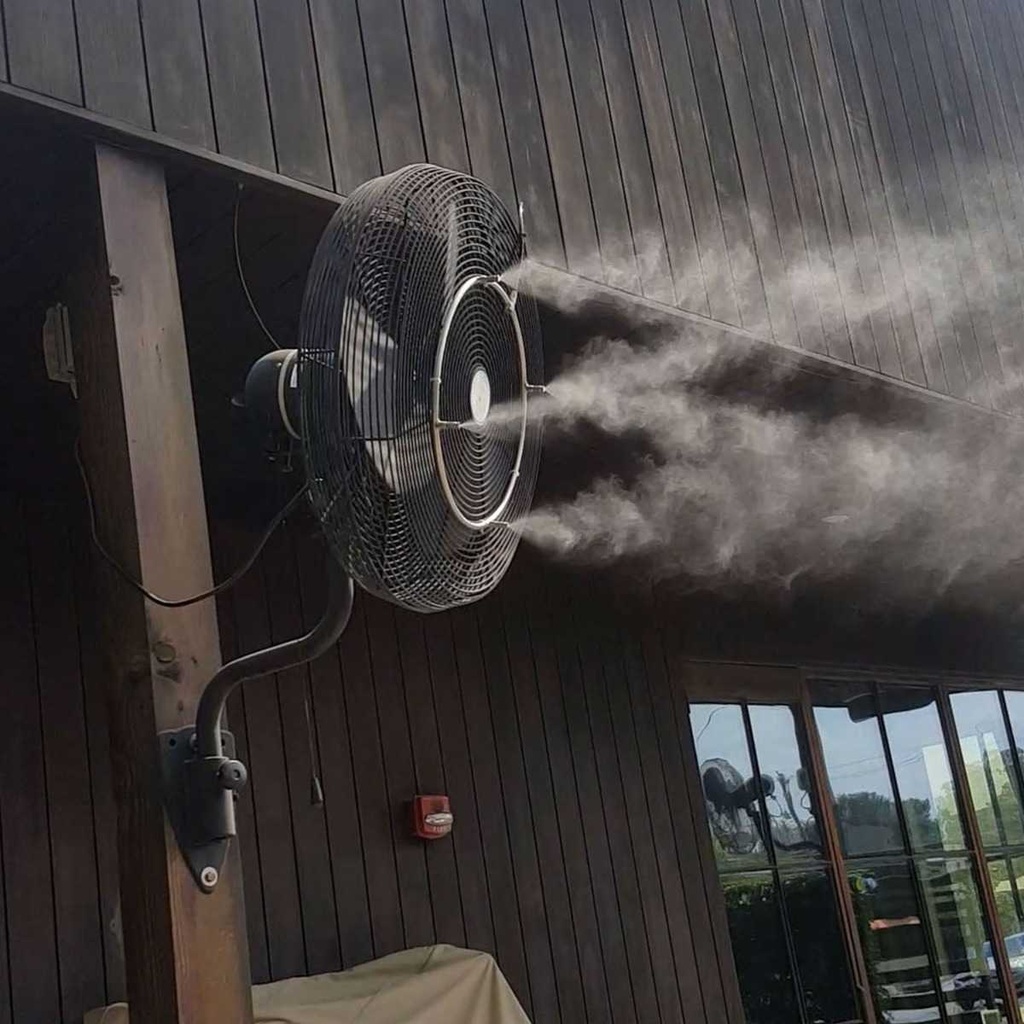

24 Inch Oscillating Fan
- Size: 24 inches
- Color: Black
- Mount Type: Wall mount
- CFM: 9100
- RPM: 1110
- Amps: 2.65
- Phase: 1
- HP: 1/4
Features:
- Extra-large high-velocity airflow with oscillation feature
- Durable and weather-resistant construction
- Suitable for outdoor use
- Adjustable tilt head for targeted airflow
- Oscillating function for wider coverage
- Power: Standard electric plug-in
Applications: Ideal for larger patios, decks, and commercial outdoor spaces
Installation: Easy wall mounting with provided hardware
Specifications
| Number of 24 Inch Mid Pressure Fans | 1 Fan, 2 fans, 3 Fans, 4 Fans, 5 Fans |
