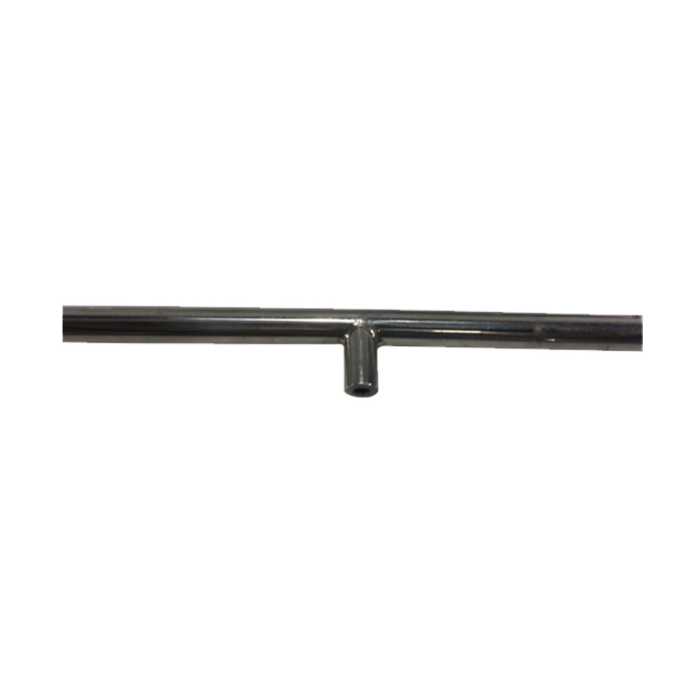

3/8 Inch SS Mist Line - 8FT Length-10/24 Thread
Specifications
Rated to 3000 PSI
3/8'' Stainless Steel Mist Line
10/24 Thread Nozzle Riser every 24"
8ft Section
2 Ft Spacing for Misting Nozzle Slot
Compression fittings are Required to connect sections
Features
Lifetime Warranty
Reduces pressure loss due to friction
Fewer splits reduce the risk of leaks
8ft Section
Supports 4 nozzles per section (Nozzles Sold Separately)
Custom length and spacings are available on request
Applications
High-pressure misting system
Residential patio misting,
Restaurant Misting
Industrial Misting
Warehouse Cooling
Greenhouse cooling
* Minimum quantity for order is 15 pieces of 8 Ft Lengths
It works with most 1/4" OD flexible tubing.
Depending on the Misting Pump size; Mid or High pressure. These would work for a softening system.
Mid Pressure: Calcium Inhibitor Filter - Poly Phosphate Filter: Link: https://mistcooling.com/misting-calcium-inhibitor-filter-poly-phosphate-filter.html
High Pressure: 5in Commercial Filter. Link: https://mistcooling.com/commercial-filter-for-mist-pumps.html
Any large than the filters mentioned would be recommended for Hard Water.
The cartridge inside the housing should be changed every 6 months
If you are on the website scowl down to Description or Specifications.
Filter housings are rated for up to 125psi.
5 microns. You don't need to worry much about the GPM as this is used before the pump. You just want to make sure that the filter is changed every six months so that the unit doesn't struggle to get water through to the pump.
