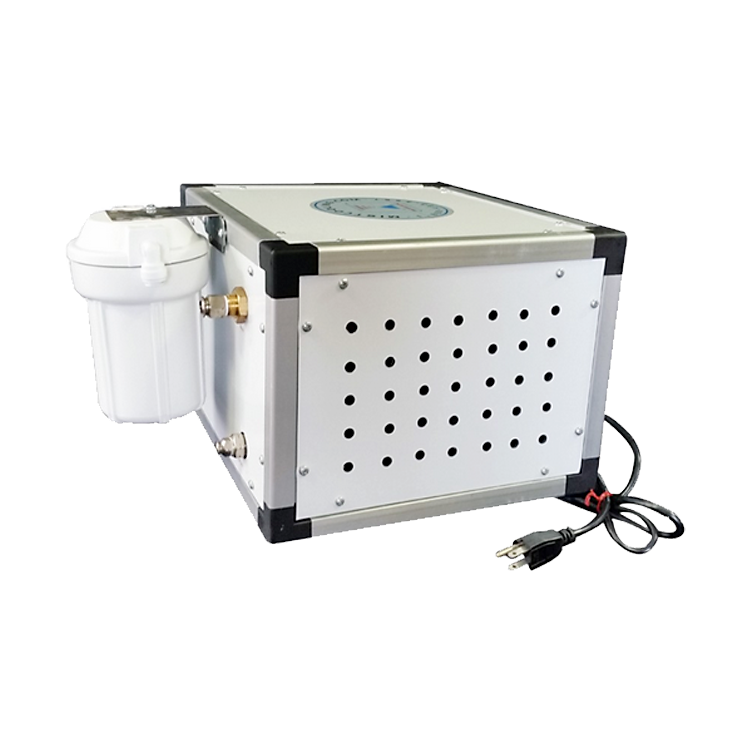

Misting Pump - Oil Less - 1500 PSI 0.30 GPM
Can be used with High-pressure mist systems and High-pressure misting fan systems.
0.30 GPM - Supports Maximum 40 Nozzles
5 Micron Water Commercial Filter
Outlet configured for 1500 PSI Misting System 1/4in High-Pressure Nylon Tubing
6ft Garden Hose Adaptor 3/8in Feed Line
WiFi - Enabled with Smartphone Controller
Compare our Oil-Less and Higher Performance Oil-Based Pumps
1000 PSI Pumps
- Maximum Pump Speed (0.15/ 0.30 GPM): 1600/ 1700 RPM
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded
- Maximum Outlet Pressure: 1000 PSI
- Maximum Flow: 0.15 GPM, 0.30 GPM (Refer to manufacturing label on pump)
- Full load Amps: (0.15/ 0.30 GPM): 1.38/ 2.00 Amps
- Voltage: 110V/ 220V AC/ 12V DC (Refer manufacturing label on the pump)
- Noise Level: 75 DB
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
1500 PSI Pump
- Maximum Outlet Pressure: 1500 PSI
- Maximum Pump Speed (0.50/ 1 / 2 GPM): 1750/ 1750/ 1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 40 PSI (Based on setting on Pressure switch) or Flooded if Pressure switch is bypassed
- Maximum Flow: 0.50, 1 & 2 GPM (Refer to manufacturing label on pump)
- Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
- Oil Type: AW-100
- Oil Capacity: 11.8oz
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only. (Please refer page 19 for full specs of the pump)
1500psi oil-less
0.15 GPM
-
Max Pressure (psi)¹ :
1500
-
Maximum number of nozzles: 20
-
Flow rate (gpm) : 0.15
- Filtration : 5 Micron
- Voltage : 110 V AC
- Full load Amps : 1.38
- RPM : 1600
- HP : 0.25
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : Yes
- By-pass : Yes
- Motor type : Enclosed
- Noise level : 60-70 DB
- Oil Less : Yes
- Recommended operating Temp. : 33⁰- 140⁰ F
- Dimensions (inch) : 15.5 x 14 x 10
-
Weight (lbs.) :
17
1500psi oil-less
0.3 GPM
-
Max Pressure (psi)¹ :
1500
-
Maximum number of nozzles :
40
-
Flow rate (gpm) :
0.3
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 2.15
- RPM : 1820
- HP : 0.25
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : Yes
- By-pass : Yes
- Motor type : Enclosed
- Noise level : 60-70 DB
- Oil Less : Yes
- Recommended operating Temp. : 33⁰- 140⁰ F
- Dimensions (inch) : 15.5 x 14 x 10
-
Weight (lbs.) :
17
1500psi oil-based pumps - 0.5 GPM
Maximum number of nozzles : 45
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 5.8
- RPM :
1750
- HP : 0.5
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 52
It works with most 1/4" OD flexible tubing.
Depending on the Misting Pump size; Mid or High pressure. These would work for a softening system.
Mid Pressure: Calcium Inhibitor Filter - Poly Phosphate Filter: Link: https://mistcooling.com/misting-calcium-inhibitor-filter-poly-phosphate-filter.html
High Pressure: 5in Commercial Filter. Link: https://mistcooling.com/commercial-filter-for-mist-pumps.html
Any large than the filters mentioned would be recommended for Hard Water.
The cartridge inside the housing should be changed every 6 months
If you are on the website scowl down to Description or Specifications.
Filter housings are rated for up to 125psi.
5 microns. You don't need to worry much about the GPM as this is used before the pump. You just want to make sure that the filter is changed every six months so that the unit doesn't struggle to get water through to the pump.
