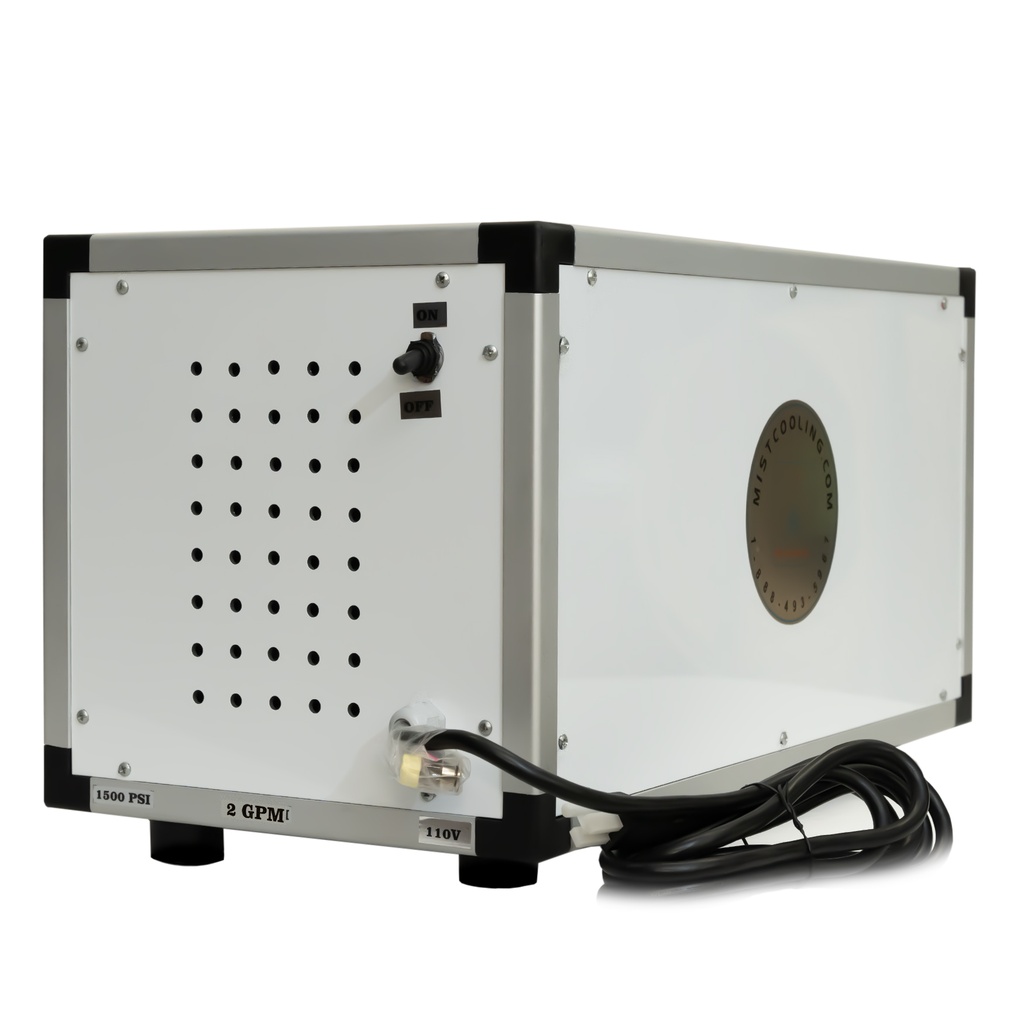

High Pressure Misting Pump - 2 GPM -1500 PSI
Mist Pump Specifications:
Maximum Outlet Pressure: 1500PSI
Maximum Pump Speed (0.50/ 1 / 2 GPM): 1750/ 1750/ 1750RPM
Maximum Inlet Pressure: 125 PSI
Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
Maximum Flow: 0.50, 1 & 2 GPM (Refer to manufacturing label on pump)
Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
Oil Type: AW-100
Oil Capacity: 11.8oz
Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
Misting Pump Features:
Boost the power of your existing evaporative mist cooling system by upgrading it with our whisper-quiet, High Pressure 1500 PSI High Pressure Misting Pump
Water flows through your existing Cooling Mist Nozzles with more pressure producing smaller droplets with practically no residual moisture
5 Micron Water Commercial Filter
Direct Drive Piston Mist Pump
H Class Motor
Adjustable Flow Rate Bypass Valve
Thermal Safety Switch
2 GPM - Supports Maximum 160 Nozzles
It works with most 1/4" OD flexible tubing.
Depending on the Misting Pump size; Mid or High pressure. These would work for a softening system.
Mid Pressure: Calcium Inhibitor Filter - Poly Phosphate Filter: Link: https://mistcooling.com/misting-calcium-inhibitor-filter-poly-phosphate-filter.html
High Pressure: 5in Commercial Filter. Link: https://mistcooling.com/commercial-filter-for-mist-pumps.html
Any large than the filters mentioned would be recommended for Hard Water.
The cartridge inside the housing should be changed every 6 months
If you are on the website scowl down to Description or Specifications.
Filter housings are rated for up to 125psi.
5 microns. You don't need to worry much about the GPM as this is used before the pump. You just want to make sure that the filter is changed every six months so that the unit doesn't struggle to get water through to the pump.
