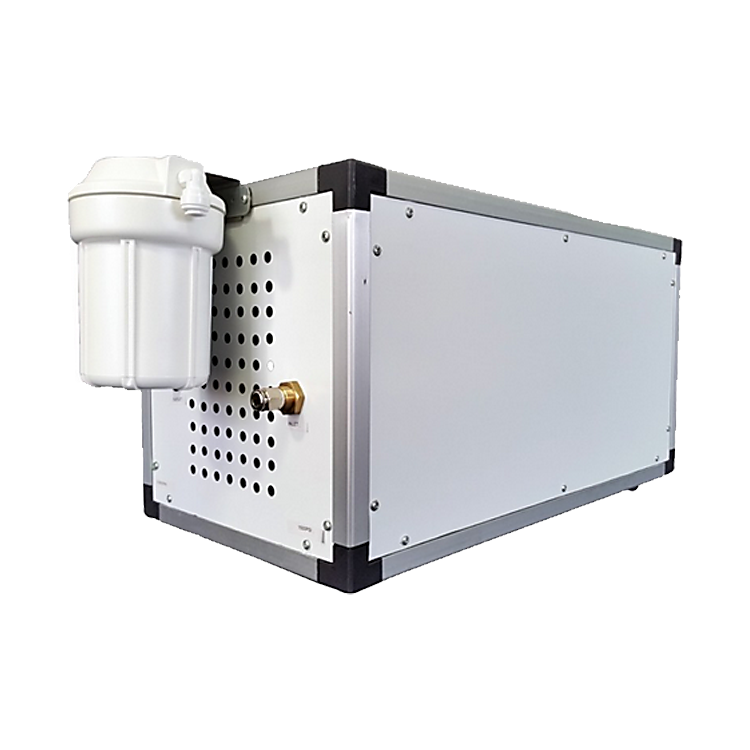

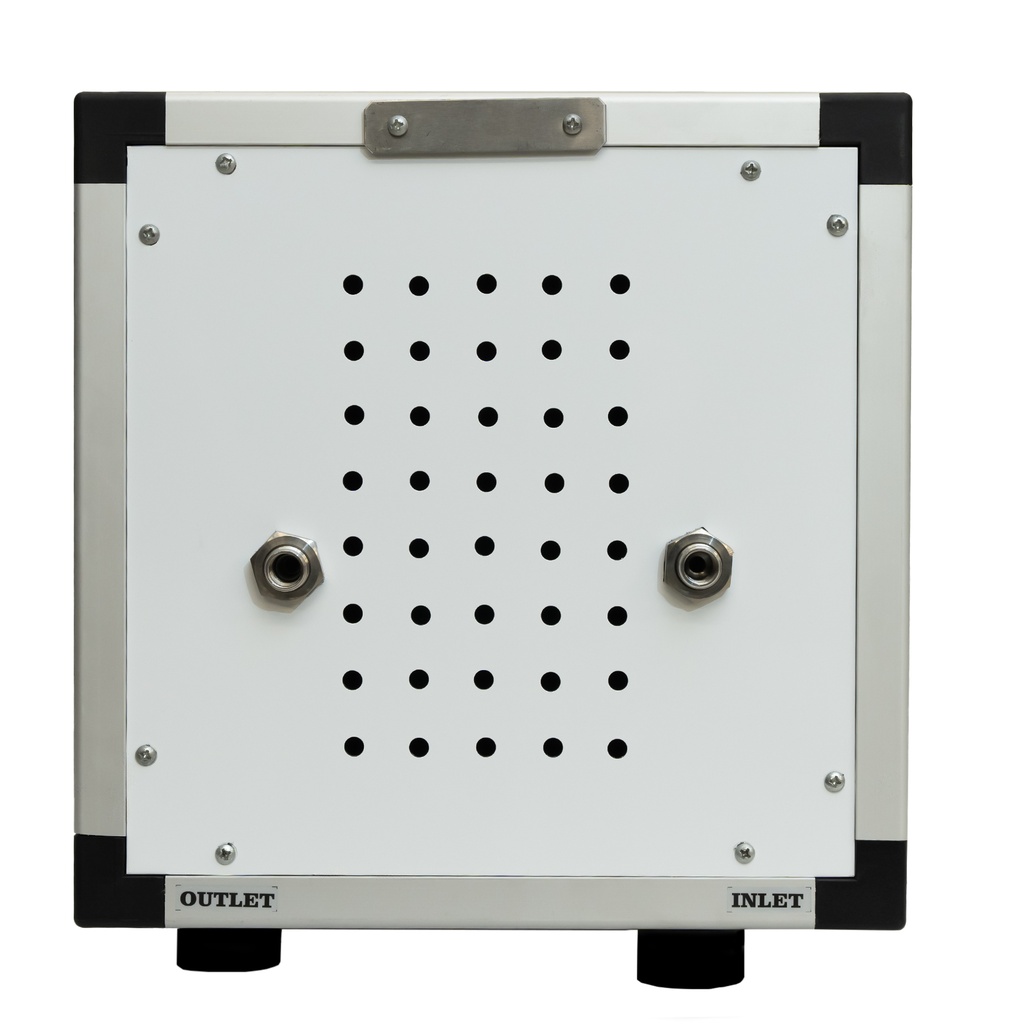

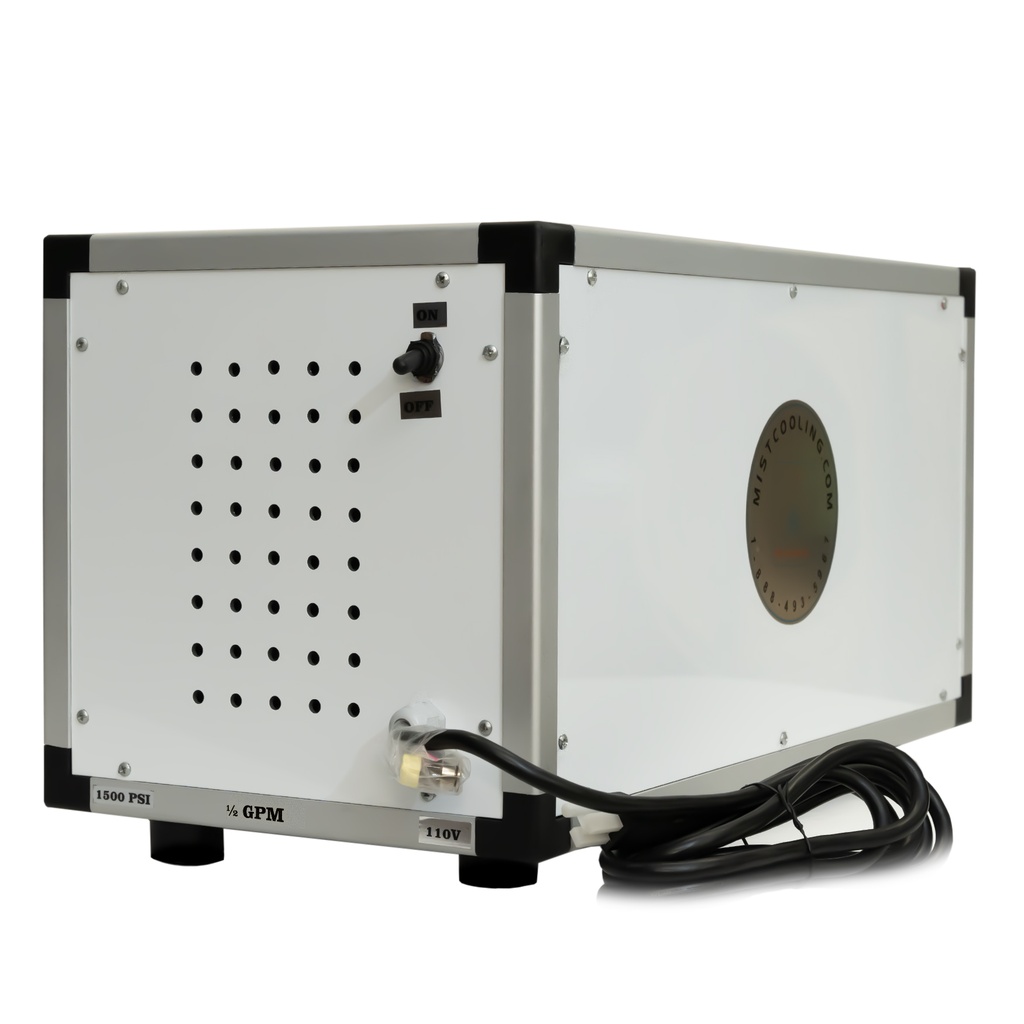

High Pressure Misting Pump -1500 PSI - 0.50 GPM
MC14122
Key Features:
✔ 1500 PSI High-Pressure Performance – Delivers fine mist for powerful cooling in large outdoor spaces and industrial applications.
✔ Durable, Long-Lasting Build – Constructed with high-quality materials to withstand demanding environments and long hours of use.
✔ Energy-Efficient Operation – Provides superior cooling with low energy consumption for cost-effective operation.
✔ Ideal for Commercial & Residential Use – Perfect for restaurants, patios, warehouses, greenhouses, and event spaces.
✔ Easy Installation & Maintenance – Simple to set up with minimal upkeep required, ensuring hassle-free operation.
Description:
The High Pressure Misting Pump 1500 PSI is designed to provide exceptional cooling and humidification for large outdoor areas, commercial spaces, and industrial environments. With a robust 1500 PSI pressure rating, this pump creates a fine mist that effectively lowers temperatures, making it ideal for outdoor patios, restaurants, greenhouses, and event venues. The energy-efficient design ensures powerful cooling without high energy costs, while the durable, long-lasting build guarantees reliability in any weather condition. Whether for commercial or residential use, this pump delivers superior misting performance with minimal maintenance.
1500psi oil-based pumps - 2GPM
Maximum number of nozzles : 160
-
Flow rate (gpm) : 2
-
Filtration :
5 Micron
-
Voltage :
110V AC
- Full load Amps : 16.5
- RPM : 1745
- HP : 2
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
-
Weight (lbs.) :
76
1500psi oil-based pumps - 1GPM
Maximum number of nozzles : 80
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 9.2
- RPM : 1745
- HP : 1
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 61
1500psi oil-based pumps - 0.5 GPM
Maximum number of nozzles : 45
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 5.8
- RPM :
1750
- HP : 0.5
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 52

1500 PSI Pump
- Maximum Outlet Pressure: 1500 PSI
- Maximum Pump Speed (0.50/ 1 / 2 GPM): 1750/ 1750/ 1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 40 PSI (Based on setting on Pressure switch) or Flooded if Pressure switch is bypassed
- Maximum Flow: 0.50, 1 & 2 GPM (Refer to manufacturing label on pump)
- Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
- Oil Type: AW-100
- Oil Capacity: 11.8oz
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only. (Please refer page 19 for full specs of the pump)
