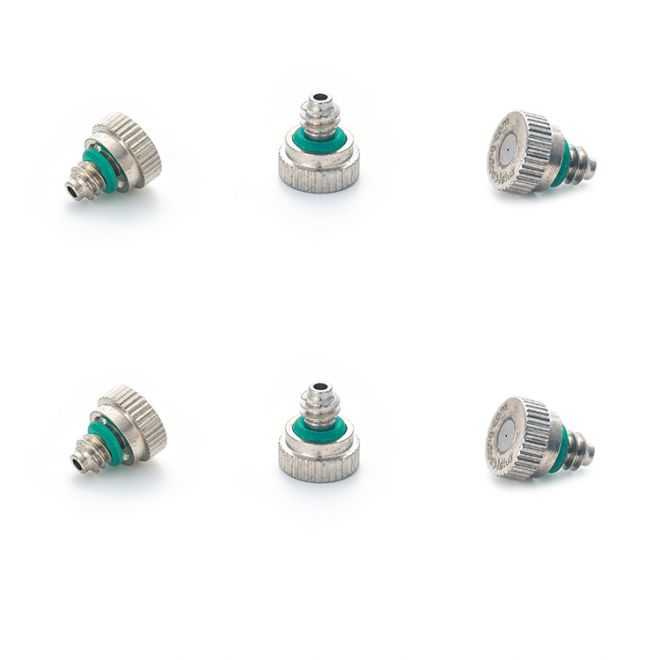

Replacement Misting Nozzles (6 Pack) - 10/24 Thread - 0.015" Orifice
The right mist spray nozzles can enhance the performance of a Misting System.
Mist nozzles help transfer pressurized water generated from the system into the air in the form of tiny droplets.
The finer the mist droplets, the faster they evaporate, meaning quick cooling and less residual moisture.
Corrosion-resistant Nickel-Plated Brass Nozzles with stainless-steel orifices, 60-70° cone-pattern spray, and 10/24” thread
PSI Specifications:
0.020 & 0.015 Orifice Size - For low pressure misting systems (40 -100 PSI)
0.012 Orifice Size - For Mid Pressure Systems ( 200 PSI - 250 PSI)
0.008 Orifice Size - For Mid/High-Pressure Systems ( 250 PSI - 1000 PSI)
0.006 Orifice Size - For High-Pressure Systems ( 1000 PSI - 1500 PSI)
It works with most 1/4" OD flexible tubing.
Depending on the Misting Pump size; Mid or High pressure. These would work for a softening system.
Mid Pressure: Calcium Inhibitor Filter - Poly Phosphate Filter: Link: https://mistcooling.com/misting-calcium-inhibitor-filter-poly-phosphate-filter.html
High Pressure: 5in Commercial Filter. Link: https://mistcooling.com/commercial-filter-for-mist-pumps.html
Any large than the filters mentioned would be recommended for Hard Water.
The cartridge inside the housing should be changed every 6 months
If you are on the website scowl down to Description or Specifications.
Filter housings are rated for up to 125psi.
5 microns. You don't need to worry much about the GPM as this is used before the pump. You just want to make sure that the filter is changed every six months so that the unit doesn't struggle to get water through to the pump.
