HydroBreeze Portable Misting Fan System
1500psi oil-based pumps - 2GPM
Maximum number of nozzles : 160
-
Flow rate (gpm) : 2
-
Filtration :
5 Micron
-
Voltage :
110V AC
- Full load Amps : 16.5
- RPM : 1745
- HP : 2
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
-
Weight (lbs.) :
76
1500psi oil-based pumps - 1GPM
Maximum number of nozzles : 80
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 9.2
- RPM : 1745
- HP : 1
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 61
1500psi oil-based pumps - 0.5 GPM
Maximum number of nozzles : 45
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 5.8
- RPM :
1750
- HP : 0.5
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 52
Misting Pump Features
200 PSI Pumps
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below)
- Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.5 GPM
- Full load amps. (110V ̴̴ 220V AC/ 12V DC): Refer manufacturing label on the pump
- Voltage: 110V-220V AC/ 12V DC
- Noise Level: approx. 35db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
250 PSI Pumps
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming
- Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.9 GPM
- Full load Amps. 110V AC: 0.7 Amps12V DC: 4.0 Amps
- Voltage: 110V-220V AC/ 12V DC
- Noise Level: 40db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

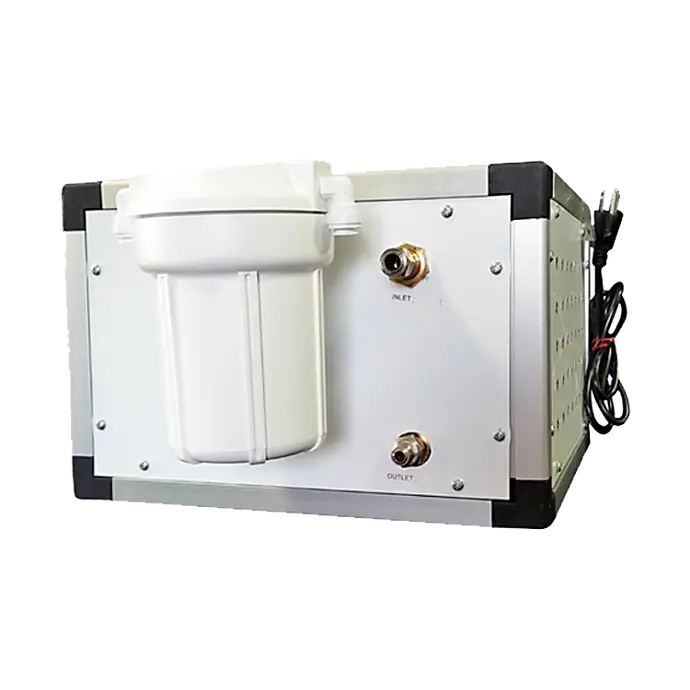

1000 PSI Pumps
- Maximum Pump Speed (0.15/ 0.30 GPM): 1600/ 1700 RPM
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded
- Maximum Outlet Pressure: 1000 PSI
- Maximum Flow: 0.15 GPM, 0.30 GPM (Refer to manufacturing label on pump)
- Full load Amps: (0.15/ 0.30 GPM): 1.38/ 2.00 Amps
- Voltage: 110V/ 220V AC/ 12V DC (Refer manufacturing label on the pump)
- Noise Level: 75 DB
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
1500 PSI Pump
- Maximum Outlet Pressure: 1500 PSI
- Maximum Pump Speed (0.50/ 1 / 2 GPM): 1750/ 1750/ 1750 RPM
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 40 PSI (Based on setting on Pressure switch) or Flooded if Pressure switch is bypassed
- Maximum Flow: 0.50, 1 & 2 GPM (Refer to manufacturing label on pump)
- Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
- Oil Type: AW-100
- Oil Capacity: 11.8oz
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only. (Please refer page 19 for full specs of the pump)
18 Inch Non Oscillating Fan
- Size: 18 inches
- Color: Black
- Mount Type: Wall mount
- CFM: 6300
- RPM: 1570
- Amps: 2.0
- Phase: 1
- HP: 1/10
Features:
- High-velocity airflow
- Durable and weather-resistant construction
- Suitable for outdoor use
- Adjustable tilt head for targeted airflow
- Non-oscillating design
- Power: Standard electric plug-in
Applications: Ideal for patios, decks, and other outdoor spaces where wall mounting is preferred
Installation: Easy wall mounting with provided hardware
18 Inch Oscillating Fan
- Size: 18 inches
- Color: Black
- Mount Type: Wall mount
- CFM: 6300
- RPM: 1570
- Amps: 2.0
- Phase: 1
- HP: 1/10
Features:
- High-velocity airflow with oscillation feature
- Durable and weather-resistant construction
- Suitable for outdoor use
- Adjustable tilt head for targeted airflow
- Oscillating function for wider coverage
- Power: Standard electric plug-in
Applications: Perfect for patios, decks, and larger outdoor spaces
Installation: Easy wall mounting with provided hardware
24 Inch Oscillating Fan
- Size: 24 inches
- Color: Black
- Mount Type: Wall mount
- CFM: 9100
- RPM: 1110
- Amps: 2.65
- Phase: 1
- HP: 1/4
Features:
- Extra-large high-velocity airflow with oscillation feature
- Durable and weather-resistant construction
- Suitable for outdoor use
- Adjustable tilt head for targeted airflow
- Oscillating function for wider coverage
- Power: Standard electric plug-in
Applications: Ideal for larger patios, decks, and commercial outdoor spaces
Installation: Easy wall mounting with provided hardware
Misting Fan portable | Sports Misting System | Dust Control Misting System
- Totally customizable outdoor Cooling System to fit your needs
- Creates a large volume of ultra-fine mist, reducing temperatures by up to 30°F
- High-Velocity outdoor-rated 24” or 30” Oscillating Fan throws air up to 40’.
- Unit is outdoor-rated, so there is no danger of shorting out or fire
- 15-Gallon water tank lasts up to 7 hours of intermittent run time and is easily refillable
- Applications: For athletic events to cool athletes or spectators, picnics, corporate events, weddings, construction zones, festivals, and more.
Portable Misting Fan Application:
- Sports events cooling
- Dust control misting
- Outdoor event cooling
- Industrial misting fan
Specifications
| Hydrobreeze Portable System Fan | 18 Inch Black, 24 Inch Black, 30 Inch Black |
| Hydrobreeze Portable System Pump Type | 200 PSI Pump, 1500 PSI Pump |
| Hydrobreeze Portable System Fan Ring Size | 4 Nozzles Ring, 6 Nozzles Ring, 8 Nozzles Ring, 10 Nozzles Ring |
