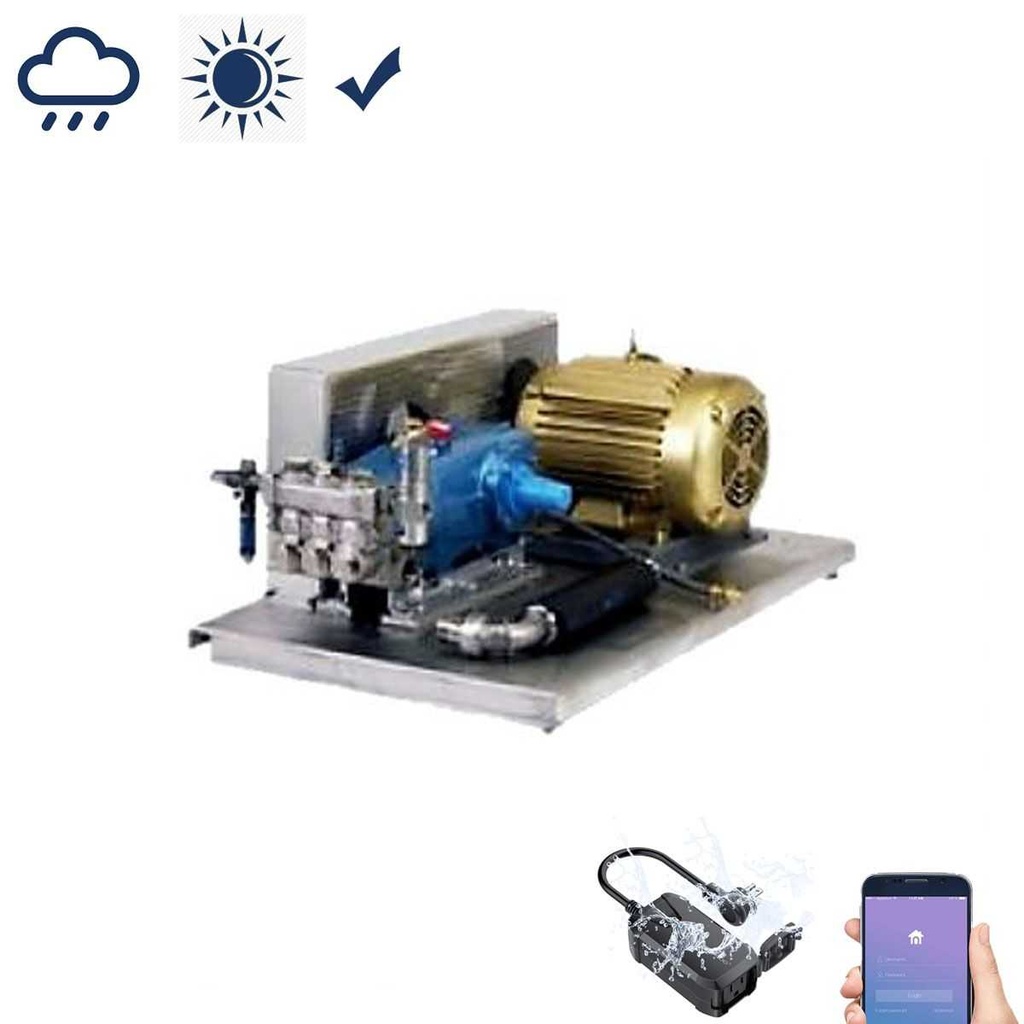

High Flow Mist Pumps
Features:
1000 PSI high-pressure direct drive pump and pulley drive pump for
outdoor cooling, dust suppression, humidification with accurate flow rates.
Capable of supporting a large number of nozzles.
The base pump is a Direct driven 3.0 GPM Pump.
Industry-Specific Applications:
Contact us for a detailed Price Quote
Contact us for your specified GPM Pump
Applications:
Outdoor Cooling of large areas
Condensor Pre-Cooling Mist Systems
Agriculture / Poultry Cooling
Dust Suppression
Odor Control Misting System
Humidification
For 4 GPM and above misting pumps, we have a 2 weeks lead time. Please contact us for faster delivery.
Features
- Available in 208/230 V
- Available with explosion-proof motors
- Capable of supporting a large number of nozzles
- Accurate flow rates
- Pressure: 1000 Direct Drive pump and Pulley Drive Pump
Specifications
| High Flow Mist Pumps - Flow Rate | Direct Drive 3.0 GPM or Direct Drive 4.0 GPM or Direct Drive 5.0 GPM or Pully Driven 4.0 GPM or Pully Driven 5.0 GPM or Pully Driven 6.0 GPM or Pully Driven 7.0 GPM |
| Tags | |
|---|---|
| Tags | |
It works with most 1/4" OD flexible tubing.
Depending on the Misting Pump size; Mid or High pressure. These would work for a softening system.
Mid Pressure: Calcium Inhibitor Filter - Poly Phosphate Filter: Link: https://mistcooling.com/misting-calcium-inhibitor-filter-poly-phosphate-filter.html
High Pressure: 5in Commercial Filter. Link: https://mistcooling.com/commercial-filter-for-mist-pumps.html
Any large than the filters mentioned would be recommended for Hard Water.
The cartridge inside the housing should be changed every 6 months
If you are on the website scowl down to Description or Specifications.
Filter housings are rated for up to 125psi.
5 microns. You don't need to worry much about the GPM as this is used before the pump. You just want to make sure that the filter is changed every six months so that the unit doesn't struggle to get water through to the pump.
