Fan Mister - 24 Inch Black - with 200 PSI Pump

Fan Mister - 24 Inch Black - with 200 PSI Pump

https://www.mistcooling.com/web/image/product.template/227/image_1920?unique=6867c04
For residential patio misting and commercial misting applications, get the easy install, and easy-to-operate misting fan system for your backyard.

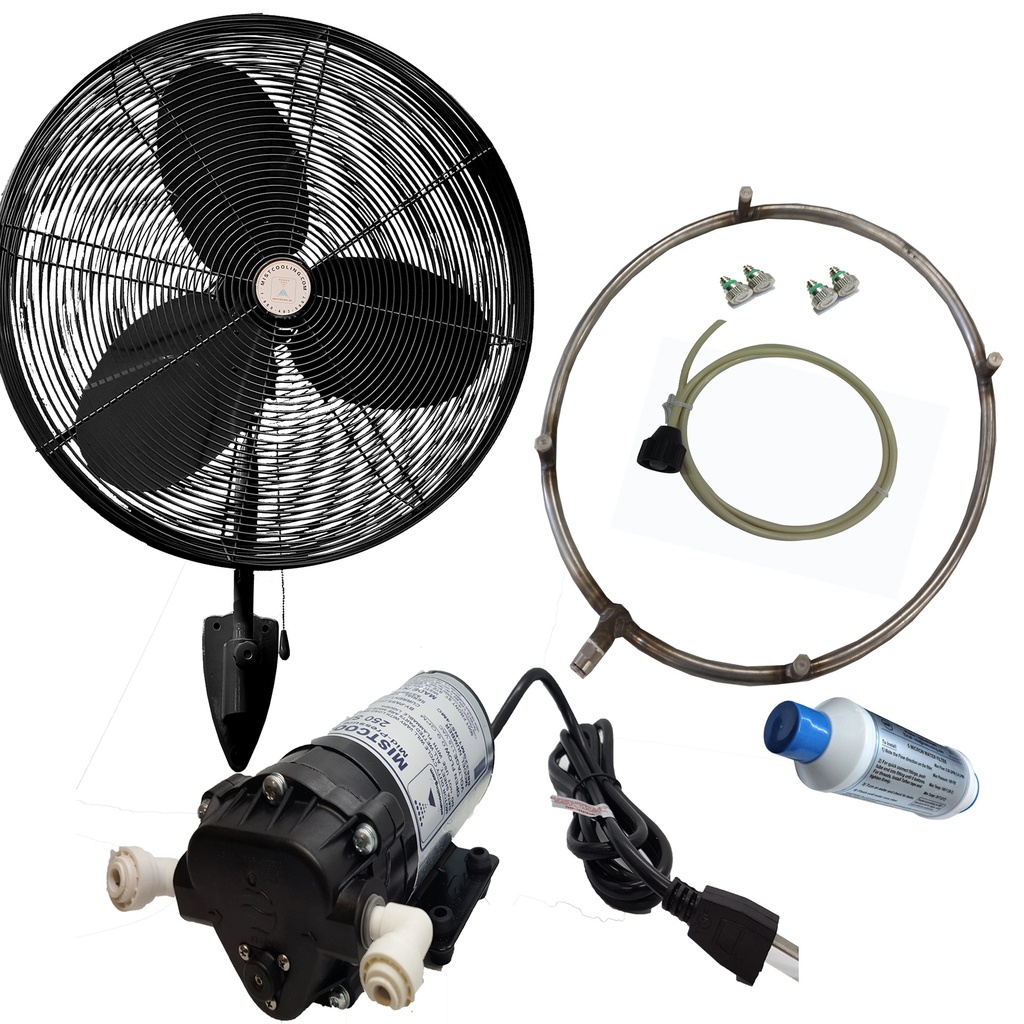

Misting Fan Kit Consists of :
  • 200 PSI Booster Pump
  • 24 Inch Outdoor Rated, high-velocity fan
  • 4 Nozzle Stainless Steel Misting Fan Ring
  • Nozzles - with Stainless Steel Orifice
  • Calcium Inhibitor Filter
  • Feed Line with Garden Hose Adapter
  • Tubing
  • Clamps
  • All fittings for installation

$ 799.99 799.99 USD $ 799.99

$ 799.99

Not Available For Sale

  • Number of 24 Inch Mid Pressure Fans

This combination does not exist.

Contact Us



Want to install 1 24"mist OSC fan on each corner of a 30 x 50 pavilion. how far away can the pressure pump be and do I need to run a 1/4" line to each fan from the pump or can I run a larger line and branch off to each fan

You can run the line continuously from each fan using coupling tee's. The pump can be as far as 150 feet away from the first nozzle.

One year warranty on the pump and the fans. Please see our warranty page for more details.

https://www.mistcooling.us/warranty

Yes these are considered wall mount fans. Bracket can also be mounted on the ceiling with fan slightly tilted down

Fans should be placed 20-25 Feet apart

Is this battery powered and is the battery rechargeable?

No this is not battery powered. The fan must be plugged into a 110v outlet

This fan has a pull chain power and speed option. You can always add additional pull chain to desired length.

24 Inch Oscillating Fan

  • Size: 24 inches
  • Color: Black
  • Mount Type: Wall mount
  • CFM: 9100
  • RPM: 1110
  • Amps: 2.65
  • Phase: 1
  • HP: 1/4

Features:

  • Extra-large high-velocity airflow with oscillation feature
  • Durable and weather-resistant construction
  • Suitable for outdoor use
  • Adjustable tilt head for targeted airflow
  • Oscillating function for wider coverage
  • Power: Standard electric plug-in

Applications: Ideal for larger patios, decks, and commercial outdoor spaces

Installation: Easy wall mounting with provided hardware

15 Inch - 4 Nozzles

  • Made with Industrial Grade 3/8'' Rigid Stainless Steel 316
  • Compatible with all High and Mid Pressure Mist Pumps
  • Pre-threaded nozzle slots for 10/24 Thread
  • Rated for up to 2000PSI
  • Attaches to any wall mount, floor, or pedestal fan
  • Includes Push-lock Inlet Fitting
  • Lifetime Warranty
  • 15'' Fan Mist Ring with 4 Nozzle's ports - Recommended for fans with 18''-20" Diameter
  • 15'' Fan Mist Ring with 6 Nozzle's ports - Recommended for fans with 18-20'' Diameter
  • 15'' Fan Mist Ring with 8 Nozzle's ports - Recommended for fans with 20-30'' Diameter
  • 25'' Fan Mist Ring with 10 Nozzle's ports - Recommended for fans with 30-48'' Diameter

200 PSI Pumps

  • Maximum Inlet Pressure: 100 PSI
  • Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below)
  • Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)
  • Maximum Flow: 0.5 GPM
  • Full load amps. (110V ̴̴ 220V AC/ 12V DC): Refer manufacturing label on the pump
  • Voltage: 110V-220V AC/ 12V DC
  • Noise Level: approx. 35db
  • Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

Specifications

Number of 24 Inch Mid Pressure Fans 1 Fan, 2 fans, 3 Fans, 4 Fans, 5 Fans
