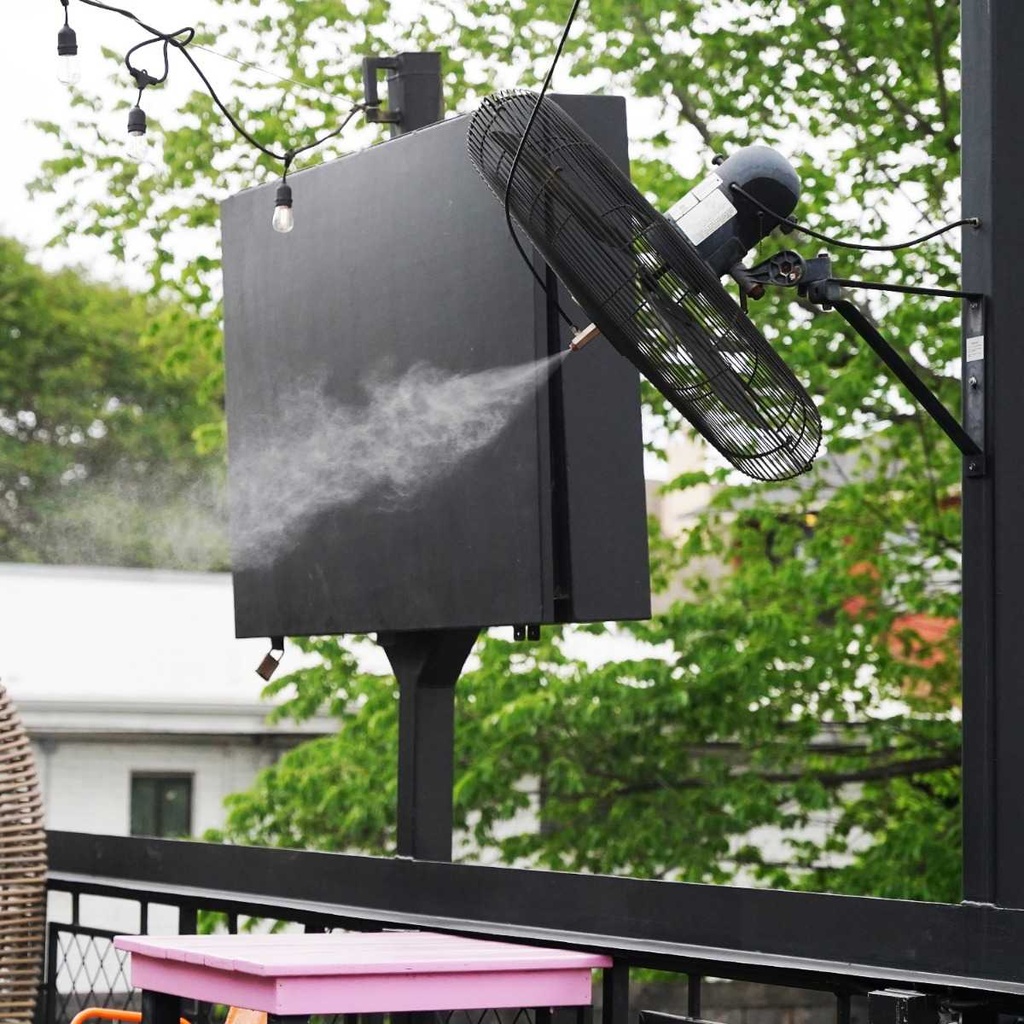

24'' Oscillating Fan Kit with 1500psi Pump - Center Hub

• 1x  Max 1500 PSI High Pressure Misting Pump with No Water Cut-Off, Pressure Bypass, Solenoid, Outdoor Enclosure, and Commercial Filtration
• 1x  High Velocity 24'' Dia 3 speed Outdoor Fan with Mounting Bracket - Prewired Patented Center Mist Fan hub Assembly
• 1x  Patented Center Mist Fan hub Assembly with Ultrafine KBN RED Mist Nozzle
• 25ft high-pressure 1/4in flexible tubing per fan assembly
• Push-lock fittings
• All necessary misting parts and accessories for installation
• WiFi - Enabled with Smartphone Controller (Optional)

• Size: 24”
• Color: White / Black
• RPM: 1110
• AMPS: 2.65
• CFM:9100
• 3-speed Pull chain
• Stainless Steel hardware with Durable Corrosion-resistant finish
• Motor with thermal overload protection
• Industrial Grade aluminum blade
• 10ft Heavy Duty cord with cord wrap
• Quiet operation
• For Indoor/Outdoor Use Osha Approved Grill

• Maximum Pump Speed (0.15/0.30 GPM): 1800 RPM
• Maximum Inlet Pressure: 100 PSI
• Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
• Maximum Outlet Pressure: 1500 PSI
• Maximum Flow: 0.15 & 0.30 GPM (Refer to manufacturing label on pump)
• Full load amps. (0.15/ 0.30 GPM): 1.38 Amps / 2.15 Amps
• Voltage: 110V / 220V AC (Refer to manufacturing label on the pump)
• Noise Level: 75 db
• Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

• Use with KBN Nozzles
• Patented Design
• Stainless Steel Construction
• Easily attaches to most fans
• Can work at Low, Medium & High Pressure

Description:

Whether you're hosting guests on a sunny patio, cooling a warehouse, or managing outdoor events, keeping temperatures comfortable is essential. The 24″ Oscillating Fan Kit with 1500 PSI Pump – Center Hub is engineered to deliver high-performance mist cooling for both residential and commercial environments.

This powerful system combines a high-pressure 1500 PSI pump, a heavy-duty 24″ oscillating fan, and a patented center mist hub to create a fine, high-velocity mist that instantly cools the surrounding area by up to 30°F. It's perfect for fighting intense summer heat while improving comfort, safety, and air circulation.

Designed for reliability and durability, the fan system is built using corrosion-resistant materials and industrial-grade components, making it suitable for long-term outdoor use. With easy installation, no special tools, and an optional Wi-Fi controller, it offers convenience and flexibility in any setting.
