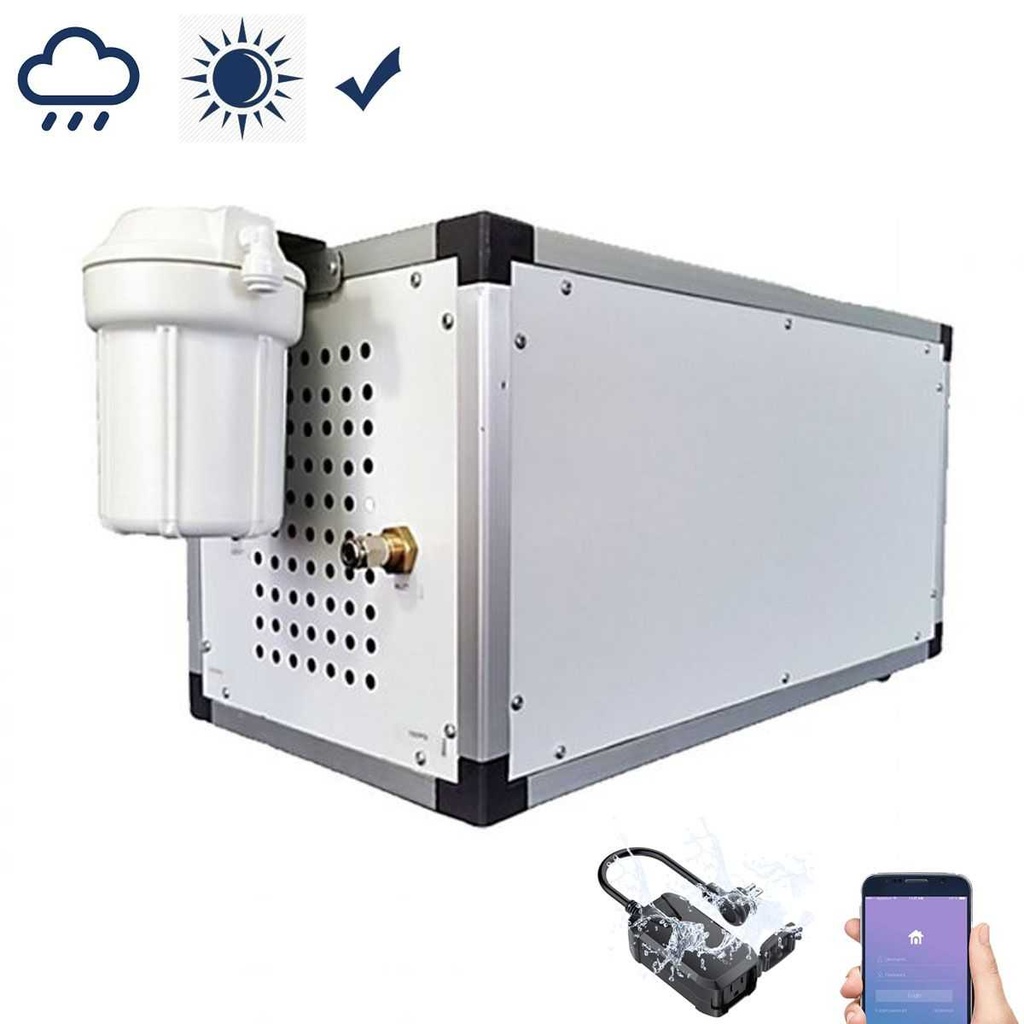

1500 PSI Misting Pump- 220 Volts
Tri-Plex Piston Pumps
Low Revolution Motor
Continuous Smooth Mist
Lower friction, heat, and noise levels
The enlarged oil reservoir for ease of maintenance
Long-lasting performance
Inlet Pressure Switch
PUMP SPECIFICATIONS
Misting Pump Specifications:
Maximum Outlet Pressure: 1500PSI
Maximum Inlet Pressure: 125PSI
Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
Maximum Flow: 1LPM, 2LPM, 4LPM, 8LPM (Refer to manufacturing label on pump)
1 LPM Supports 20 Nozzles
2 LPM Supports 40 Nozzles
4 LPM Supports 80 Nozzles
8 LPM Supports 160 Nozzles
Voltage: 220V AC
Oil Type: Synthetic Motor Oil
Oil Capacity: 11.8oz
Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
Specifications
| 1500 PSI Misting Pump- 220 Volts - Flow Rate LPM | 1 LPM 20 Nozzle or 2 LPM 40 Nozzle or 4 LPM 80 Nozzle or 8 LPM 160 Nozzle |
| 1500 PSI Misting Pump- 220 Volts - HZ Cycle | 50 HZ or 60 HZ |
| Tags | |
|---|---|
| Tags | |
It works with most 1/4" OD flexible tubing.
Depending on the Misting Pump size; Mid or High pressure. These would work for a softening system.
Mid Pressure: Calcium Inhibitor Filter - Poly Phosphate Filter: Link: https://mistcooling.com/misting-calcium-inhibitor-filter-poly-phosphate-filter.html
High Pressure: 5in Commercial Filter. Link: https://mistcooling.com/commercial-filter-for-mist-pumps.html
Any large than the filters mentioned would be recommended for Hard Water.
The cartridge inside the housing should be changed every 6 months
If you are on the website scowl down to Description or Specifications.
Filter housings are rated for up to 125psi.
5 microns. You don't need to worry much about the GPM as this is used before the pump. You just want to make sure that the filter is changed every six months so that the unit doesn't struggle to get water through to the pump.
