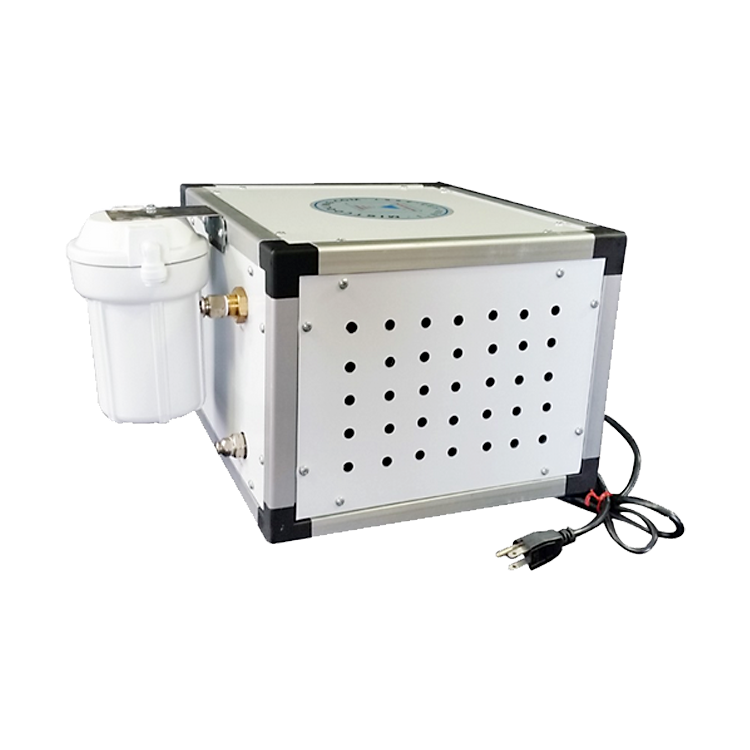

200 PSI Misting Booster Pump



Mist Pump Specifications:


Maximum Inlet Pressure: 100 PSI

Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below)

Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)

Maximum Flow: 0.5 GPM

Full load amps. (110V-220V AC/ 12V DC): Refer manufacturing label on the pump

Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)

Noise Level: appx. 35db

Maximum Fluid Temperature: For Room Temperature / Cold Water applications only




250 PSI:

250 PSI Pump Specifications

    • 110vac
    • 1.2 Amps
    • 0.90 GPM
    • Max 250 PSI
    • 6ft Three prong wall plug
    • On/Off Switch
    • Inlet: 3/4in Garden Hose Fitting
    • Outlet: Outlet: Standard 1/4 Inch, 3/8 Inch is optional (please contact us for 3/8 option)
    • Size: 19in x 7in x 8in

​Features:

    • Max Output capacity of 250 PSI
    • Supports up to 40 nozzles
    • Easy to hook with any Garden Hose or Faucet
    • Built-in 5 Micron Filtration
    • Built-in Inlet Solenoid and Thermal Safety Switch
    • Outdoor compatible fan-cooled enclosure with on/off switch
    • Compatible with a variety of timers and controls
    • Powered by Totally Enclosed Pump head and Motor that is MADE IN USA

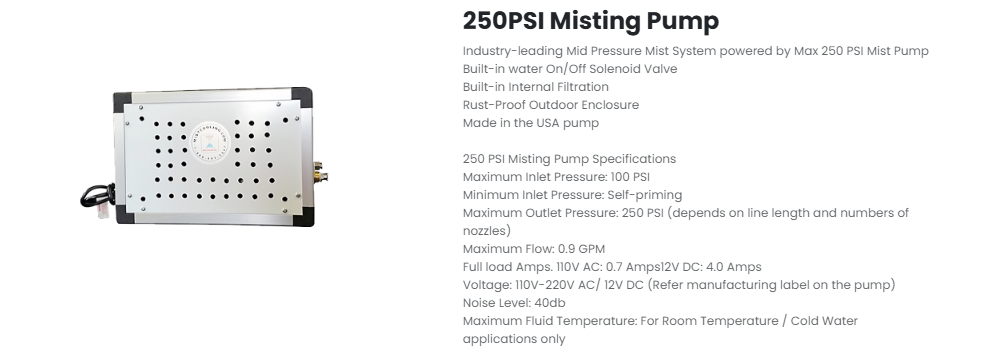

250 PSI Misting Pump Specifications:


Maximum Inlet Pressure: 100 PSI

Minimum Inlet Pressure: Self-priming

Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)

Maximum Flow: 0.9 GPM

Full load Amps. 110V AC: 0.7 Amps12V DC: 4.0 Amps

Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)

Noise Level: 40db

Maximum Fluid Temperature: For Room Temperature / Cold Water applications only




​ ​ ​ ​

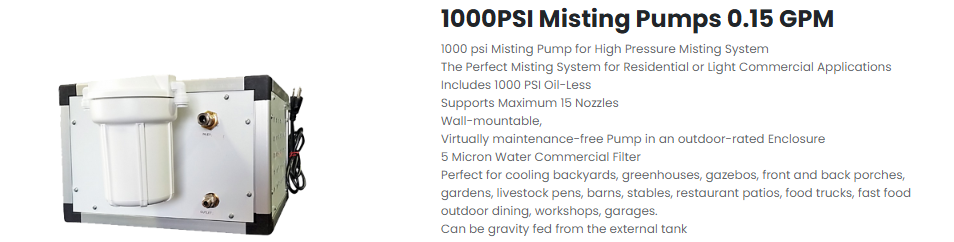

0.15 GPM:

1000 psi Misting Pump for High Pressure Misting System

The Perfect Misting System for Residential or Light Commercial Applications

Includes 1000 PSI Oil-Less

Supports Maximum 15 Nozzles

Wall-mountable,

Virtually maintenance-free Pump in an outdoor-rated Enclosure

5 Micron Water Commercial Filter

Perfect for cooling backyards, greenhouses, gazebos, front and back porches, gardens, livestock pens, barns, stables, restaurant patios, food trucks, fast food outdoor dining, workshops, garages.

Can be gravity fed from the external tank

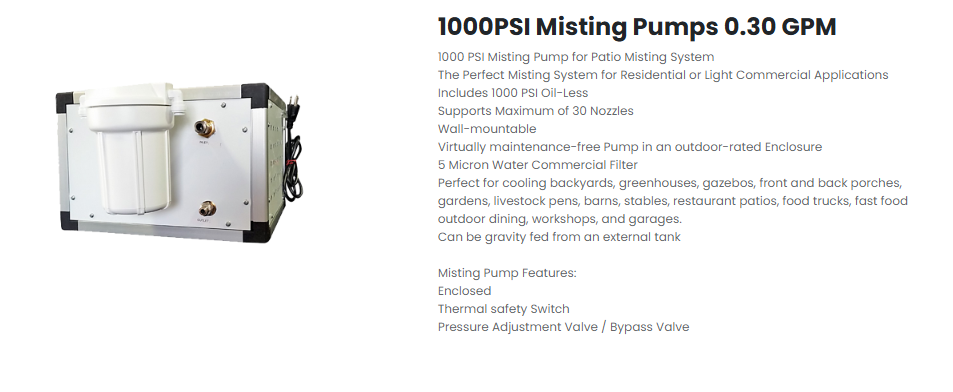

​0.30 gpm:

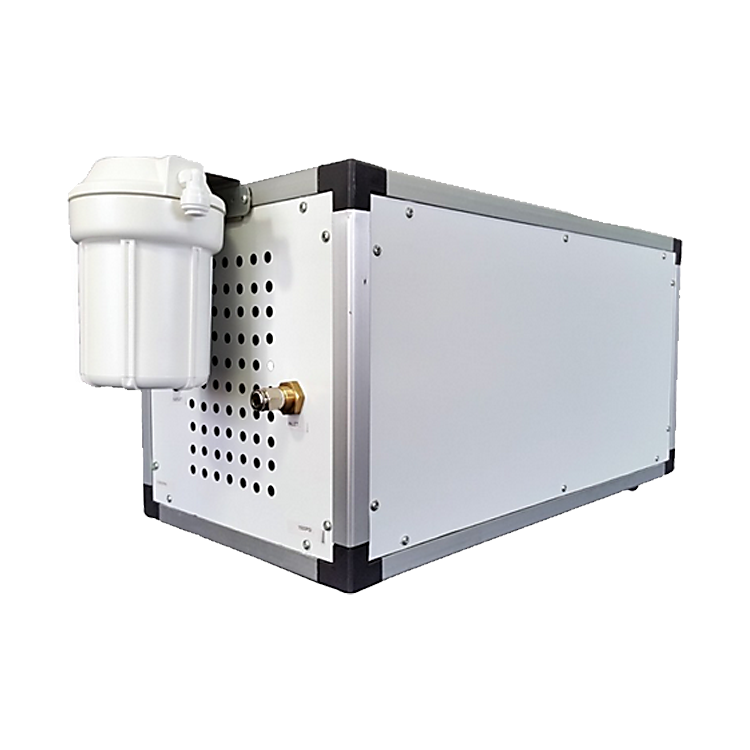

1000 PSI Misting Pump for Patio Misting System
The Perfect Misting System for Residential or Light Commercial Applications
Includes 1000 PSI Oil-Less
Supports Maximum of 30 Nozzles
Wall-mountable
Virtually maintenance-free Pump in an outdoor-rated Enclosure
5 Micron Water Commercial Filter
Perfect for cooling backyards, greenhouses, gazebos, front and back porches, gardens, livestock pens, barns, stables, restaurant patios, food trucks, fast food outdoor dining, workshops, and garages.
Can be gravity fed from an external tank

Misting Pump Features:
Enclosed
Thermal safety Switch
Pressure Adjustment Valve / Bypass Valve

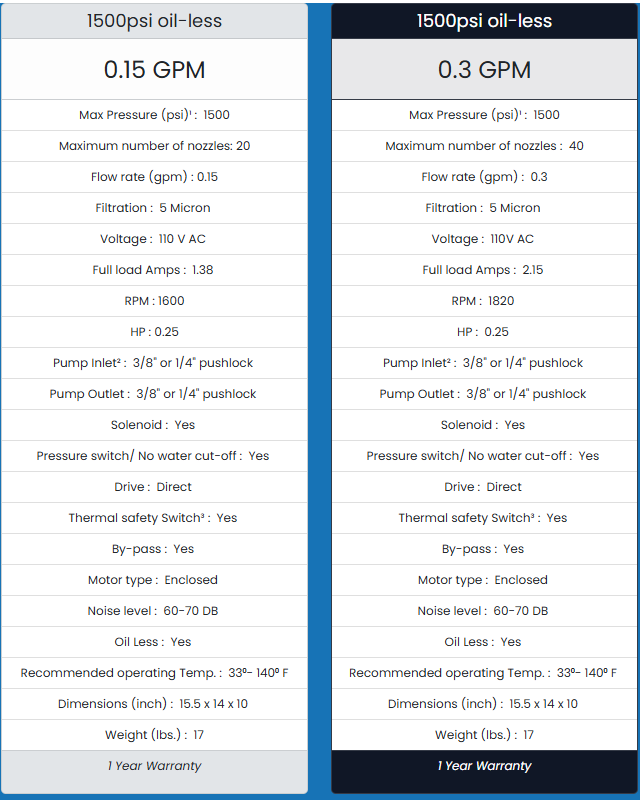

1500 PSI OIL LESS (0.15 GPM, 0.30 GPM)

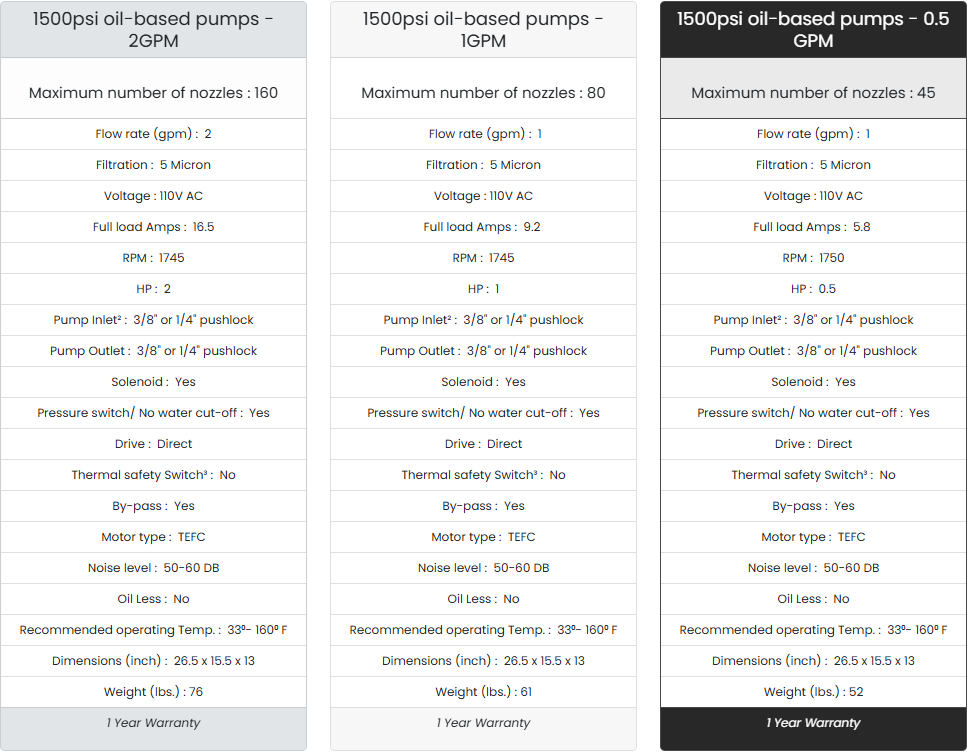

1500 Psi Premium Oil Based System (0.5 GPM, 1 GPM, 2 GPM)




​ ​ ​ ​​
