Part Number: MC32180

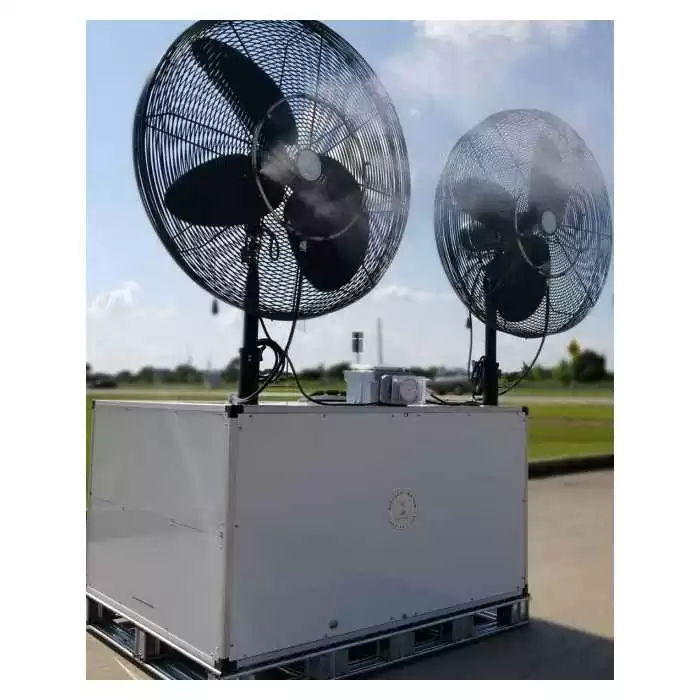

- 2x 24 Inch Outdoor Rated Fans
- 1x 100 Gallon Tank
- Select from 250 PSI or 1500 PSI Pump
- 8-slot Nozzle Ring (10/24 thread) on each Fan
- Completely Portable - Forklift and Pallet Jack Compatible
1500 PSI Pump Specifications
- Maximum Pump Speed (0.15/ 0.30 GPM): 1800 RPM
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
- Maximum Outlet Pressure: 1500 PSI
- Maximum Flow: 0.15, 0.30 GPM (Refer to manufacturing label on pump)
- Full load amps. (0.15/ 0.30 GPM): 1.38 Amps. /2.15 Amps
- Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
- Noise Level: 75db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
200 PSI Pump Specifications
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below.)
- Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.5 GPM
- Full load amps. (110V~220V AC): Refer manufacturing label on the pump
- Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)
- Noise Level: appx. 35db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
Stainless Steel Misting Fan Ring Specifications
- Made with Industrial Grade 3/8'' Rigid Stainless Steel 316
- Compatible with all High and Mid Pressure Mist Pumps
- Pre-threaded nozzle slots for 10/24 Thread
- Rated for up to 2000 PSI
- Attaches to any wall mount, floor, or pedestal fan
- Includes Push-lock Inlet Fitting
- Lifetime Warranty
24-Inch Fan Features
- Size: 24”
- Color: Black or White
- RPM: 1110, AMPS: 2.65, CFM:9100
- Voltage: 110V
- 3-speed Pull chain
- Stainless Steel hardware with Durable Corrosion-resistant finish
- Motor with thermal overload protection industrial
- Grade aluminum blade
- 10ft Heavy Duty cord with cord wrap
- Quiet operation
- For Indoor/ Outdoor Use
- Osha Approved Grill
