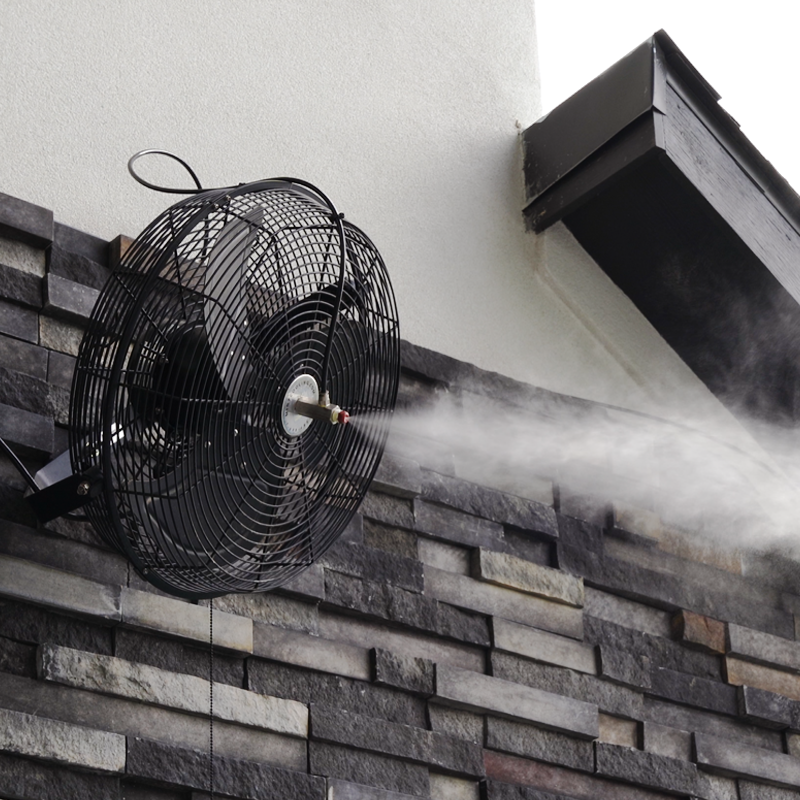

Patio Misting Fan - 18 Inch Patio Misting Fan - 1500 PSI Misting Pump - With Center Hub - Non Oscillating
Key Features:
- Fan misting system with the 18-inch misting fan and the patented center fan misting hub combines the decorative looks with the high performance of mistcooling products to create a comfortable zone of outdoor cooling.
- Fan misting systems can be used for residential outdoor patio misting, restaurant and commercial outdoor seating areas as well as industrial cooling applications.
- Outdoor fans come are waterproof and come with wall mounting brackets and required hardware for easy installation. Our fan mistcooling systems are easy to set up, without any prior experience, and are designed to give you the instant cooling effect, whilst complementing the outdoor looks of your home, restaurant, or industry.
Patio Misting Fan with Outdoor Patio Fan Includes:
- 1x Max 1500 PSI High Pressure Misting Pump with No Water Cut-Off, Pressure Bypass, Solenoid, Outdoor Enclosure, and Commercial Filtration
- 1x High Velocity 18'' Dia 3 speed Fan with Mounting Bracket - Prewired Patented Center Mist Fan hub Assembly
- 1x Patented Center Mist Fan hub Assembly with Ultrafine KBN RED Mist Nozzle
- 25ft high-pressure flexible tubing per fan assembly
- Push-lock fittings
- All necessary misting parts and accessories for installation
- WiFi - Enabled with Smartphone Controller (Optional)
Mist Pump Specifications:
- Maximum Pump Speed (0.15/0.30 GPM): 1800 RPM
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
- Maximum Outlet Pressure: 1500 PSI
- Maximum Flow: 0.15 & 0.30 GPM (Refer to manufacturing label on pump)
- Full load amps. (0.15/0.30 GPM): 1.38 Amps / 2.15 Amps
- Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
- Noise Level: 75 DB
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
- Fan Center Hub Specifications:
- Use with KBN Nozzles
- Patented Design
- Stainless Steel Construction
- Easily attaches to most fans
- Can work at low, medium & high pressure
18 Inch Outdoor Fan Features:
- Size: 18”
- Color: Black or White
- RPM: 1570
- AMPS: 2.0, CFM:6300
- 3-speed Pull chain
- Stainless Steel hardware with Durable Corrosion-resistant finish
- Motor with thermal overload protection
- Industrial Grade aluminum blade
- 9ft Heavy Duty cord with cord wrap
- Quiet operation
- For Indoor/Outdoor Use
- Osha Approved Grill
Does it have to be wall mounted?
Yes these are considered wall mount fans. Bracket can also be mounted on the ceiling with fan slightly tilted down
How far apart should they be spaced?
Fans should be placed 20-25 Feet apart
Is this battery powered and is the battery rechargeable?
No this is not battery powered. The fan must be plugged into a 110v outlet
If you install a product high, does it have an accessible on and off switch?
This fan has a pull chain power and speed option. You can always add additional pull chain to desired length.
Specifications
| Number Of 18 Inch Fans W Center HUB/Non Oscillating | 1 Fan, 2 Fans, 3 Fans, 4 Fans, 5 Fans, 6 Fans, 7 Fans, 8 Fans, 9 Fans, 10 Fans, 11 Fans, 12 Fans, 13 Fans, 14 Fans, 15 Fans |
