1500 PSI Premium Misting System - Flexible Tubing - Free Smartphone Controller
MC13040
Key Features:
- 1500 PSI High-Pressure Misting Pump – Delivers ultra-fine mist for superior cooling efficiency.
- Flexible Tubing System – Easy to install and adjust for custom misting configurations.
- Oil-Less Pump Design – Maintenance-free and prevents oil contamination.
- Weather-Resistant & Durable – Built for long-term outdoor use in patios, restaurants, warehouses, and industrial spaces.
- Energy & Water Efficient – Uses minimal water while reducing ambient temperatures by up to 30°F.
- Versatile Application – Ideal for residential, commercial, agricultural, and greenhouse misting.
Description:
The 1500 PSI High-Pressure Misting System is the perfect outdoor cooling solution for hot and dry climates. Equipped with a powerful oil-less misting pump and flexible tubing, this system allows for customized installation in patios, restaurants, event spaces, warehouses, and greenhouses.
The ultra-fine mist rapidly lowers temperatures without leaving surfaces wet, ensuring a comfortable environment for residential and commercial applications.
Designed for durability and energy efficiency, this weather-resistant misting system delivers consistent high-pressure cooling while minimizing water consumption.
| System Length 1500 PSI - Standard | System Length: 50ft- 10 Nozzles & Tees - 0.50 GPM Pump, System Length: 60ft- 20 Nozzles & Tees - 0.50 GPM Pump, System Length: 80ft- 30 Nozzles & Tees - 0.50 GPM Pump, System Length: 100ft- 40 Nozzles & Tees - 0.50 GPM Pump, System Length: 150ft- 50 Nozzles & Tees - 1 GPM Pump, System Length: 140ft- 60 Nozzles & Tees - 1 GPM Pump, System Length: 160ft- 70 Nozzles & Tees - 1 GPM Pump, System Length: 180ft- 80 Nozzles & Tees - 1 GPM Pump, System Length: 200ft- 90 Nozzles & Tees - 2 GPM Pump, System Length: 220ft- 100 Nozzles & Tees - 2 GPM Pump, System Length: 240ft- 110 Nozzles & Tees - 2 GPM Pump, System Length: 260ft- 120 Nozzles & Tees - 2 GPM Pump, System Length: 280ft- 130 Nozzles & Tees - 2 GPM Pump, System Length: 300ft- 140 Nozzles & Tees - 2 GPM Pump, System Length: 320ft- 150 Nozzles & Tees - 3 GPM Pump, System Length: 340ft- 160 Nozzles & Tees - 3 GPM Pump |
| Smart Phone Controller | Smart Phone Controller: No, Smart Phone Controller: Yes |
| Tubing Color | Beige, Black, Dark Brown, White |
1500psi oil-based pumps - 2GPM
Maximum number of nozzles : 160
-
Flow rate (gpm) : 2
-
Filtration :
5 Micron
-
Voltage :
110V AC
- Full load Amps : 16.5
- RPM : 1745
- HP : 2
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
-
Weight (lbs.) :
76
1500psi oil-based pumps - 1GPM
Maximum number of nozzles : 80
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 9.2
- RPM : 1745
- HP : 1
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 61
1500psi oil-based pumps - 0.5 GPM
Maximum number of nozzles : 45
- Flow rate (gpm) : 1
- Filtration : 5 Micron
- Voltage : 110V AC
- Full load Amps : 5.8
- RPM :
1750
- HP : 0.5
- Pump Inlet² : 3/8" or 1/4" pushlock
- Pump Outlet : 3/8" or 1/4" pushlock
- Solenoid : Yes
- Pressure switch/ No water cut-off : Yes
- Drive : Direct
- Thermal safety Switch³ : No
- By-pass : Yes
- Motor type : TEFC
- Noise level : 50-60 DB
- Oil Less : No
- Recommended operating Temp. : 33⁰- 160⁰ F
- Dimensions (inch) : 26.5 x 15.5 x 13
- Weight (lbs.) : 52
Nylon Tubing
Nylon (Polyamide 12) semi-flexible, plasticized, heat stabilized
-
OD :
0.25 Inch
-
ID :
0.188 Inch
-
Burst Pressure :
2800 PSI
- Colors : Black / White / Dark Brown /Beige
-
Lengths: Per Foot
1/4 Stainless Steel Tubing
316 Stainless Steel
- OD : 0.25 Inch
- Stainless Steel
- Grooved : Yes
- Nozzle Slot: No
- Lengths:
1 Ft, 2 Ft, 3 Ft, 4 Ft, Custom lengths
3/8 Inch Stainless Steel Tubing
316 Stainless Steel
- OD : 0.375 Inch
- Stainless Steel
- Grooved : No
- Nozzle Slot: Yes
- Lengths: 8FT Sections
Frequently asked questions
Here are some common questions about our company.
Our company specializes in consulting, product development, and customer support. We tailor our services to fit the unique needs of businesses across various sectors, helping them grow and succeed in a competitive market.
You can reach our customer support team by emailing info@yourcompany.example.com, calling +1 555-555-5556, or using the live chat on our website. Our dedicated team is available 24/7 to assist with any inquiries or issues.
We’re committed to providing prompt and effective solutions to ensure your satisfaction.
We offer a 30-day return policy for all products. Items must be in their original condition, unused, and include the receipt or proof of purchase. Refunds are processed within 5-7 business days of receiving the returned item.

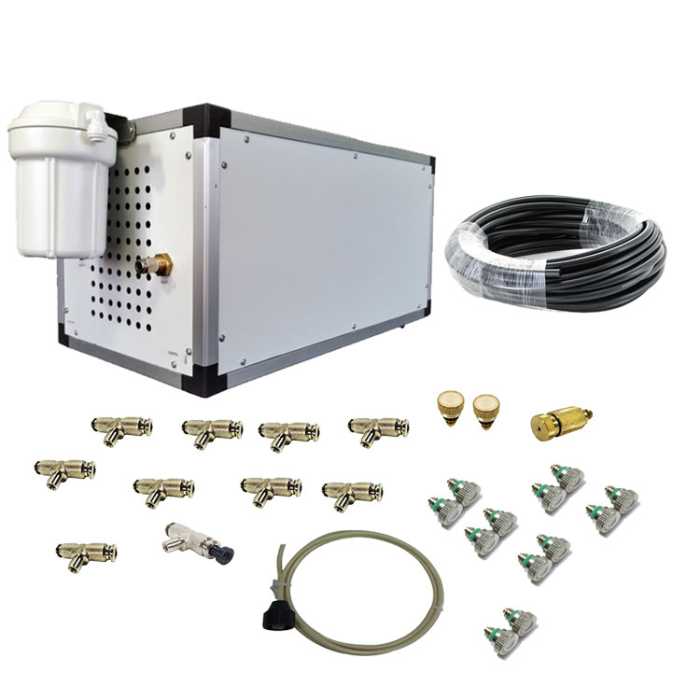

The components of the complete 1500 PSI misting system are:
The installation instruction and the manuals for the 1500 PSI Patio Misting system are:
1000 PSI Misting Pump
40 Nozzles max
- No Solenoid
- No By Pass Valve
- Cannot use smart phone controller
- No Thermal Safety switch
- Oil Less
1500 PSI Standard Misting Pump
40 Nozzles Max
- Solenoid
- By Pass Valve
- Can use smart phone controller
- Thermal Safety switch
- Oil Less
1500 PSI Premium Misting Pump
260 Misting Nozzles Max
- Solenoid
- By Pass Valve
- Can use smart phone controller
- Thermal Safety switch
- Oil based
