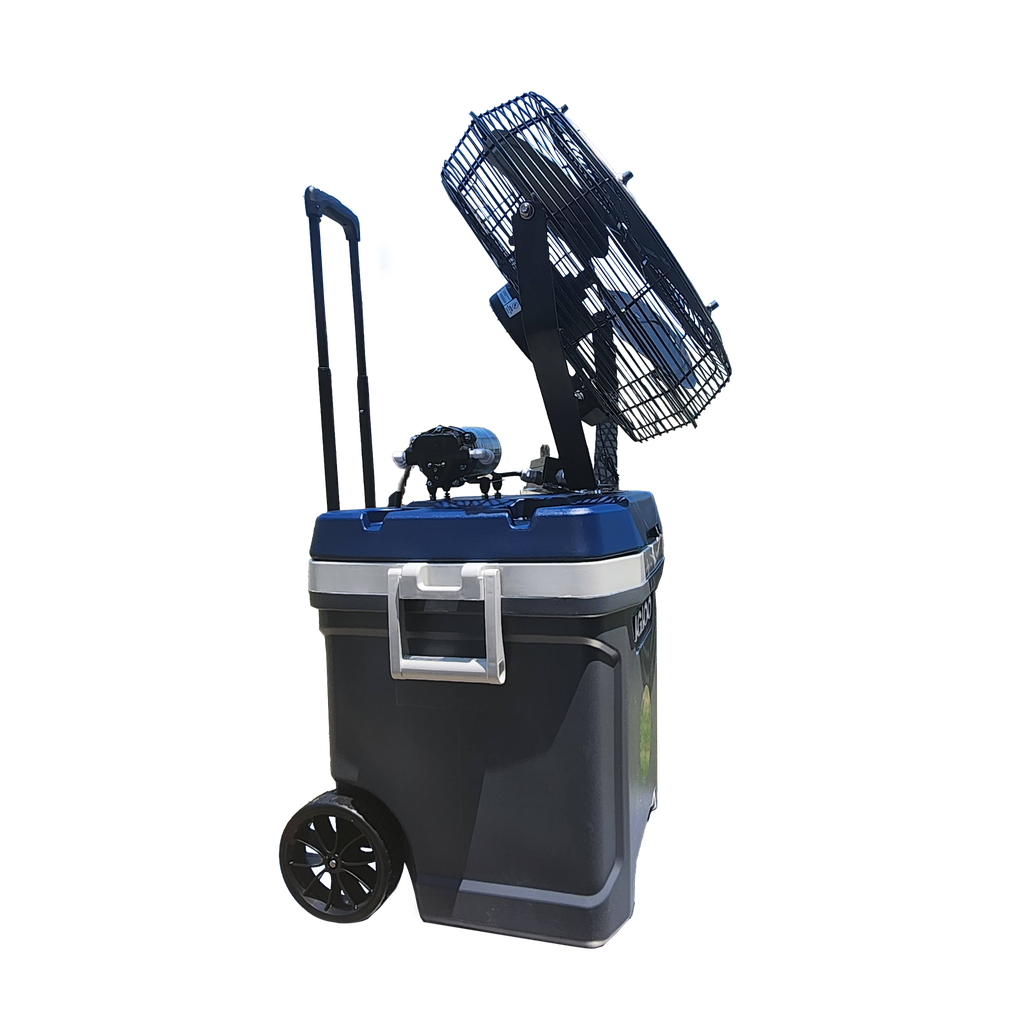

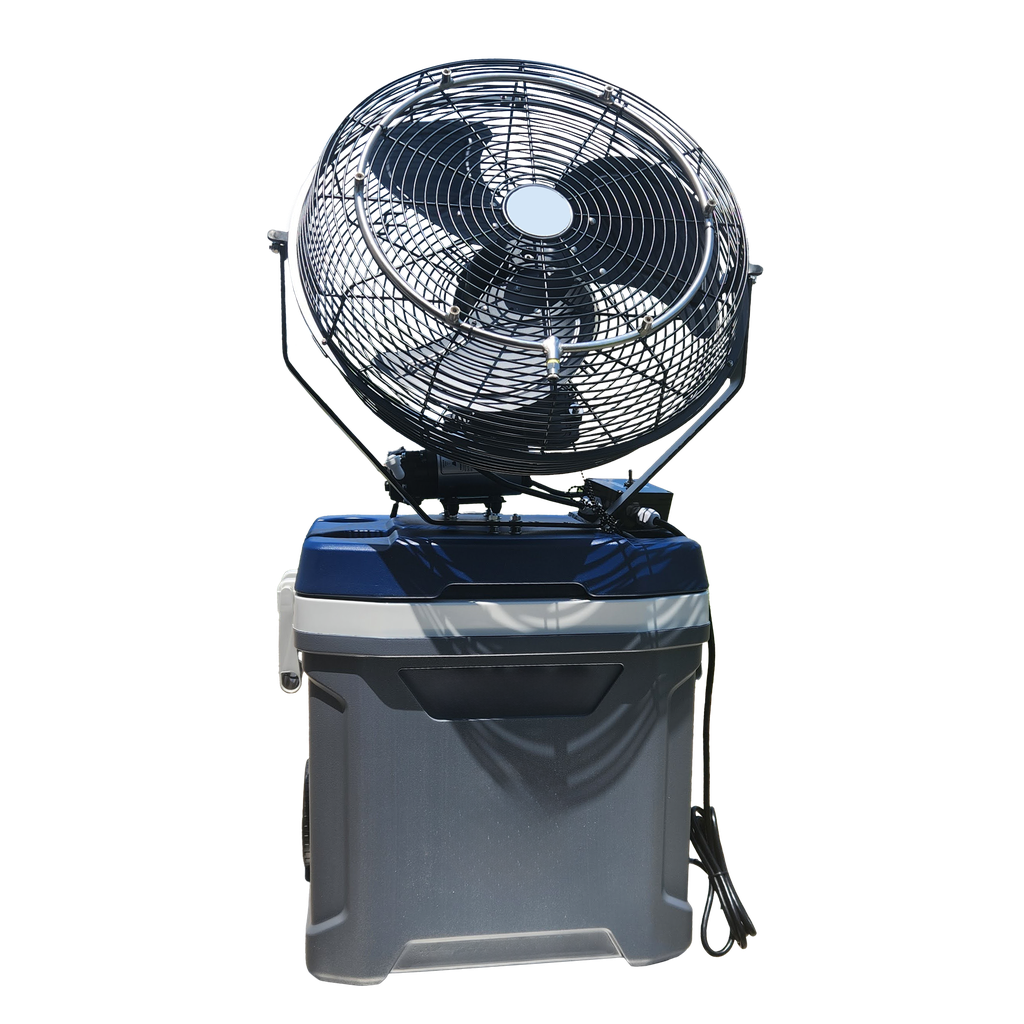

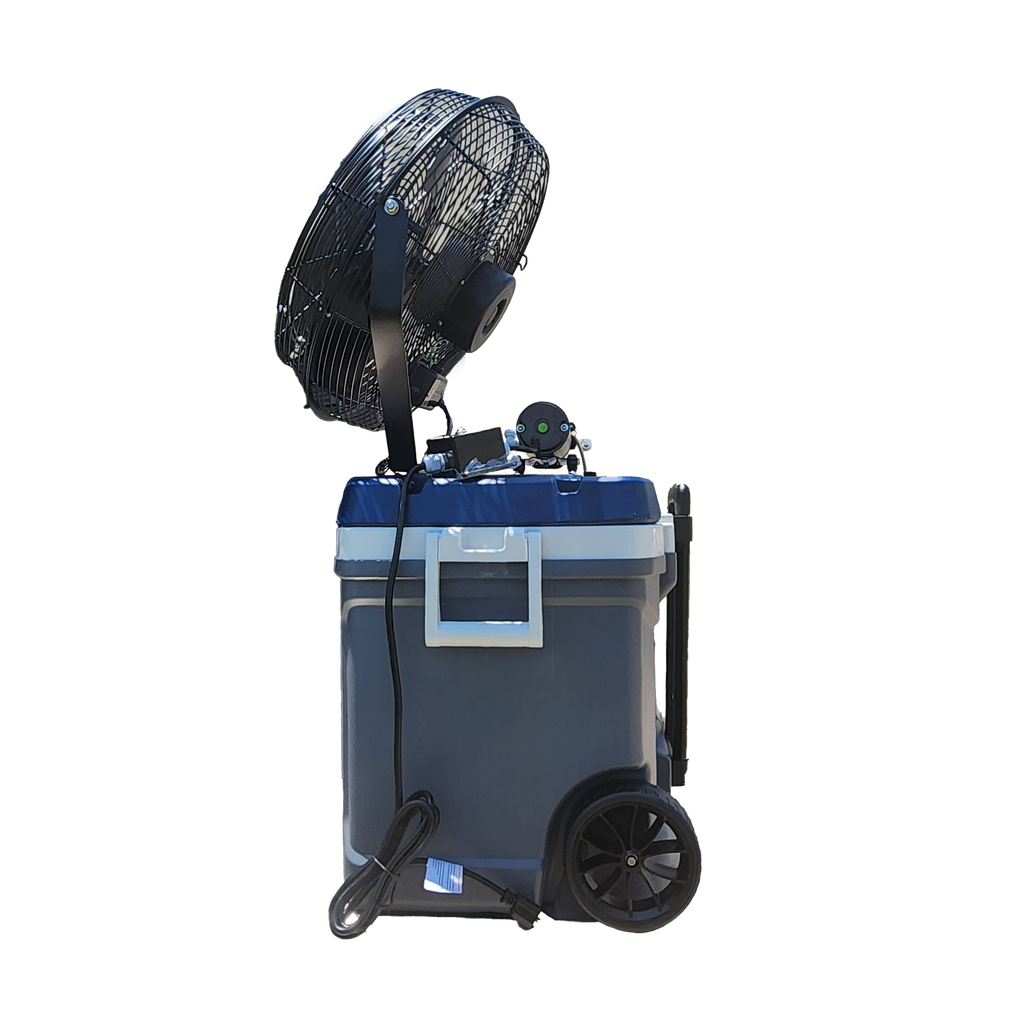

Portable Misting Fan - CoolerMax

https://www.mistcooling.com/web/image/product.template/398/image_1920?unique=d6f8ff2

Portable Misting Fan | Outdoor fan

  • 14in or 18in Fan with Stainless Steel Misting Fan Ring
  • 4 Nozzles Ring for 14in Fan
  • 6 Nozzles Ring for 18in Fan
  • 0.012 nozzle orifices 10/24 Thread Slots
  • Max 200 PSI Misting Pump
  • 15 Gallon Tank (62 quarts)
  • Lasts up to 7 Hours per water fill

Portable Misting System - Features:
  • Standard 110V (also available in 12V DC)
  • DC or AC converter optional
  • Weight is approximately 40 pounds
  • The packed dimensions are 22” x22” x 36”
  • Place 6’-10’ away from desired cooling area
  • On a hot day, the mist will evaporate quickly

Mist Pump Specifications:
  • Maximum Inlet Pressure: 100 PSI
  • Minimum Inlet Pressure: Self-priming (Capable of lifting water from 6 feet below.)
  • Maximum Outlet Pressure: 200 PSI (depends on line length and numbers of nozzles)
  • Maximum Flow: 0.5 GPM
  • Full load amps. (110V  ̴̴ 220V AC/ 12V DC): Refer manufacturing label on the pump
  • Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)
  • Noise Level: appx. 35db
  • Maximum Fluid Temperature: For Room Temperature / Cold Water applications only

Outdoor Fan:18-Inch Fan Specifications:
  • Size: 18”
  • RPM: 1570, AMPS: 2.0, CFM: 6300
  • 3-speed Pull chain
  • Stainless Steel hardware with Durable
  • Corrosion-resistant finish
  • Motor with thermal overload protection
  • Industrial Grade aluminum blade
  • 9ft Heavy Duty cord with cord wrap
  • Quiet operation
  • For Indoor/ Outdoor Use
  • Osha Approved Grill

Stainless Steel Fan Misting Ring Features:
  • Made with Industrial Grade 3/8'' Rigid Stainless Steel 316
  • Compatible with all High and Mid Pressure Mist Pumps
  • Pre-threaded nozzle slots for 10/24 Thread
  • Rated for up to 2000 PSI
  • Attaches to any wall mount, floor, or pedestal fan
  • Includes Push-lock Inlet Fitting
  • Nozzles & Fan Sold Separately
  • Lifetime Warranty

$ 899.99 899.99 USD $ 899.99

$ 899.99

Not Available For Sale

  • Fan Size
  • 12V DC Converter - Coolermax
  • Add 20 Nozzle Misting Tent Kit Extension

This combination does not exist.

Contact Us



Specifications

Fan Size Fan Size: 14 Inch Fan - 4 Nozzles - 12 Inch Diameter Ring, Fan Size: 18 Inch Fan - 6 Nozzles - 15 inch Diameter Ring +$150.00
12V DC Converter - Coolermax None, 12vDC Power Inverter, Portable Power Generator with Carrying Handle (110vac)
Add 20 Nozzle Misting Tent Kit Extension Misting Tent Kit & Expansion fittings
