Misting Fan Kit - High Pressure Retro Kit
Warehouse Misting Systems - With Misting Pump
It can often get hot in warehouses and manufacturing facilities, which can impact your employee productivity and performance negatively. To avoid productivity loss, it’s important to provide your staff with a cool and comfortable environment so that they enjoy their work and deliver their best. And this is exactly what you can achieve by installing our high-pressure misting system.
It’s a cost-effective solution to keep your warehouse and manufacturing facilities cool. This retro kit is deployed with an industry-leading 1500psi high-pressure mist pump and features our patented center mist fan hub assembly.
And more importantly, this kit is expandable and can be customized according to your application needs.
This fan kit has the ability to cool temperatures by 30 degrees F. It’s ideal for cooling large industrial warehouses, restaurants, patios, and manufacturing facilities. It features green KBN series nozzles that enable it to spread cool air evenly and effectively.

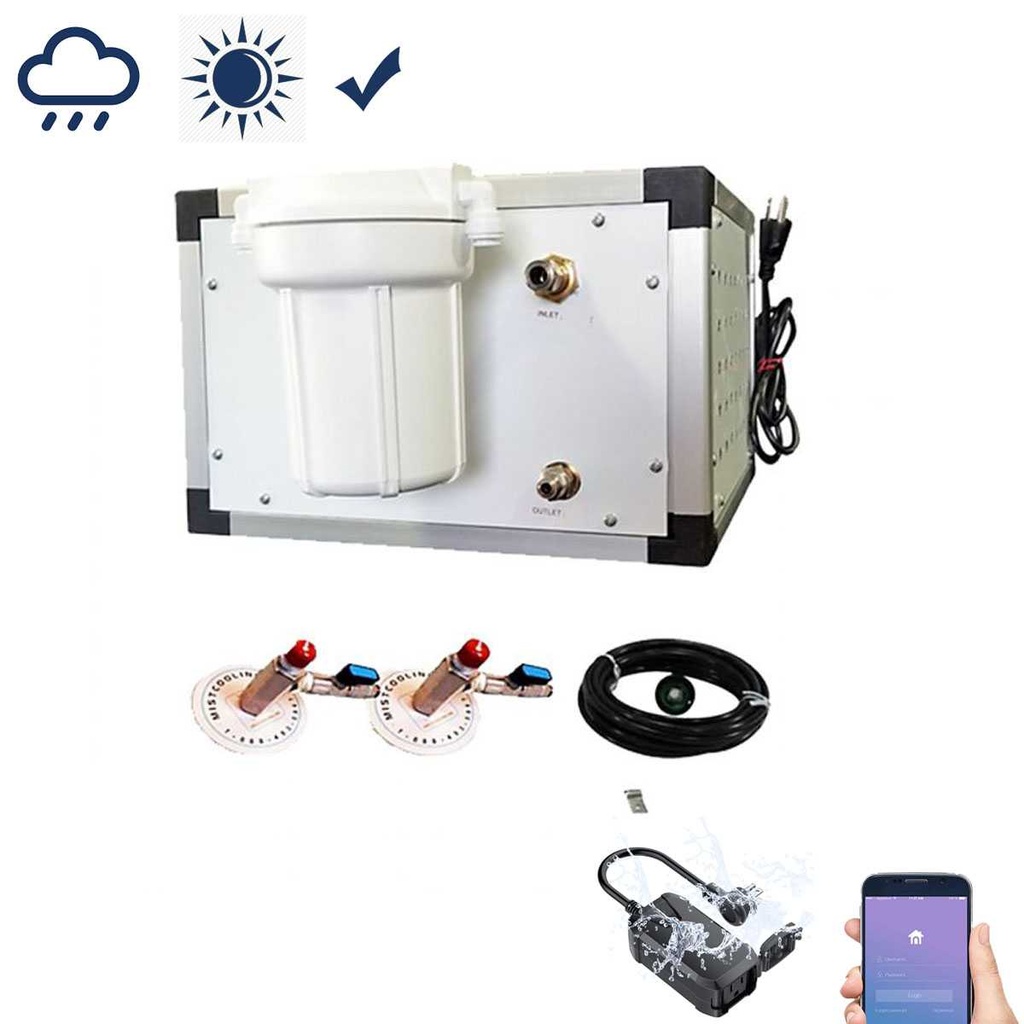

Fan misting Retro kit includes:
- 1x 1500 PSI high pressure misting pump
- 2x Patented Center Mist Fan hub assemblies with Magnetic Mount
- 2x Red KBN Nozzles
- 50ft high-pressure 1/4in flexible tubing (25ft per fan assembly)
- Push-lock fittings for a misting system
- All necessary misting parts and accessories for installation
- Fan sold separately
- WiFi - Enabled with Smartphone Controller (Optional)
Fan Center Hub Specifications:
- Use with KBN Nozzles
- Patented Design
- Stainless Steel Construction
- Easily attaches to most fans
- Can work at low, medium & high pressure
Mist Pump Specifications:
- Maximum Pump Speed (0.15/0.30 GPM): 1800 RPM
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: (Based on setting on Pressure switch) or Flooded if the Pressure switch is bypassed
- Maximum Outlet Pressure: 1500 PSI
- Maximum Flow: 0.15 & 0.30 GPM (Refer to manufacturing label on pump)
- Full load amps. (0.15/0.30 GPM): 1.38 Amps. /2.15 Amps
- Voltage: 110V/ 220V AC (Refer manufacturing label on the pump)
- Noise Level: 75 db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
Want to install 1 24"mist OSC fan on each corner of a 30 x 50 pavilion. how far away can the pressure pump be and do I need to run a 1/4" line to each fan from the pump or can I run a larger line and branch off to each fan
You can run the line continuously from each fan using coupling tee's. The pump can be as far as 150 feet away from the first nozzle.
What is your warranty on the 1500 p.s.i.pump and 24" OSC fans
One year warranty on the pump and the fans. Please see our warranty page for more details.
Does it have to be wall mounted?
Yes these are considered wall mount fans. Bracket can also be mounted on the ceiling with fan slightly tilted down
How far apart should they be spaced?
Fans should be placed 20-25 Feet apart
Is this battery powered and is the battery rechargeable?
No this is not battery powered. The fan must be plugged into a 110v outlet
If you install a product high, does it have an accessible on and off switch?
This fan has a pull chain power and speed option. You can always add additional pull chain to desired length.
Specifications
| Center Hub Assembly Amount | 2 Patented Center Hub Assembly, 4 Patented Center Hub Assembly, 6 Patented Center Hub Assembly, 8 Patented Center Hub Assembly, 10 Patented Center Hub Assembly, 12 Patented Center Hub Assembly, 14 Patented Center Hub Assembly, 16 Patented Center Hub Assembly, 18 Patented Center Hub Assembly, 20 Patented Center Hub Assembly |
