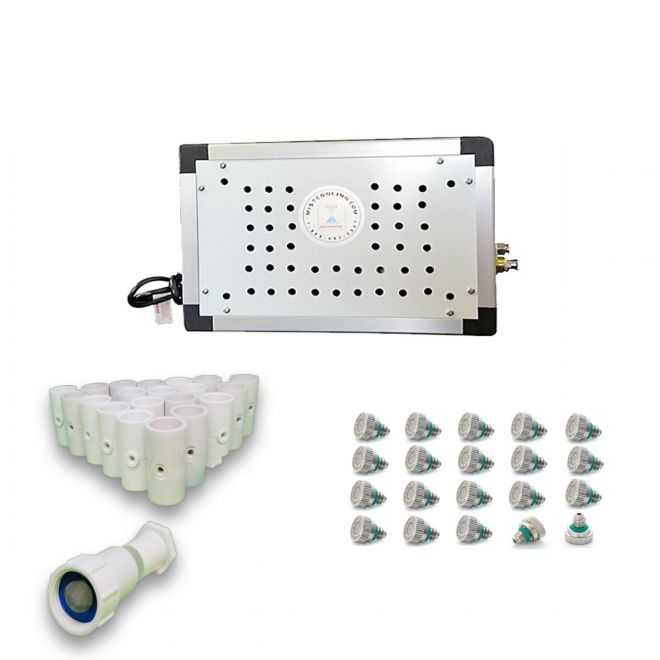

Mid Pressure Mist Kit - 1/2 Inch PVC - 250 Misting Pump
- 1x Max 250 PSI mid-pressure pump with built-in solenoid & filtration in an Outdoor Enclosure
- 10x 1/2in misting nozzle Tees - 10/24 Threaded
- 10x Ultrafine Stainless Steel Misting nozzles 0.012'' Orifice
- 1x 1/2in PVC end plug
- 1x End Plug to close the line
- Maximum Inlet Pressure: 100 PSI
- Minimum Inlet Pressure: Self-priming
- Maximum Outlet Pressure: 250 PSI (depends on line length and numbers of nozzles)
- Maximum Flow: 0.9 GPM
- Full load Amps. 110V AC: 0.7 Amps 12V DC: 4.0 Amps
- Voltage: 110V-220V AC/ 12V DC (Refer manufacturing label on the pump)
- Noise Level: 40db
- Maximum Fluid Temperature: For Room Temperature / Cold Water applications only
No we do not, the flexible tubing should fit around most corners. Should you need a right angle coupling we do offer them on the website under this link https://www.mistcooling.com/shop/mc52300-1-4-coupling-elbow-push-lock-1113?category=24
17"x9.5"x10" and it weighs about 13lbs
The pump can be outside, though it is recommended to be brought in during colder/winter times. Also, we would not recommend leaving it on the ground if you are in an area prone to flooding.
The 10-25 nozzle system has 50ft of tubing where the 30-45 nozzle systems have 100ft of tubing.
Recommended distance between nozzles is 2- 3 ft
The size is 19'' x 7'' x 8''
Yes, filter can be replaced, and we recommend replacing the filter.
Please click on the link to see how to change the filter : https://youtu.be/ufvGE-j9M9I
It will not 'soak' its surroundings per say but it does cover up to 6-8ft depending on the pressure so planning accordingly will be advised.
Yes the spray direction is adjustable. You can also add the 45 degree adapter, the straight line adapter or the Nozzle Swivel. Please click on the links below. https://mistcooling.com/45-degrees-nozzle-adapter.html
Noise Level: 40 DB
Thank you for considering our product! With the 250 PSI Patio misting system comes with approximately 100ft of tubing
No this pumps can only be used for misting purposes. Mosquito systems uses different pump. Please contact us at 281-633-0109 to get more information.
100 ft. of flexible tubing comes with this system in your choice of black, beige, grey, or white.
A little under 1 gallon per hour. For the whole system, it depends on the amount of nozzles chosen.
Yes, it is easy to replace. You have to open the side panel saying "open this side for maintenance" and filter has push-lock fittings which is easy to remove and install.
250psi pump has a thermal safety switch. These pumps are made in USA pumps; Thermal safety is a required feature for these types of motors and is installed by the motor manufacturer. It is a safety feature and designed for motor longevity. Whenever motor's temperature reaches to certain level, it shuts off the motor to cool-down and turns on automatically after a while.
If this pumps are ran in small intervals with given a time to cool down, pumps works fine. You can use this pumps if your application need this pumps to use intermittent.
Specifications
| System Length - MC12060 | 20 Ft - 10 Nozzles, 40 Ft - 20 Nozzles, 60 Ft - 30 Nozzles, 80 Ft - 40 Nozzles |
| Smart Phone Controller | Smart Phone Controller: No, Smart Phone Controller: Yes |
