MC13065 1500 PSI Standard Misting Package - Stainless Steel Tubing - Free Smartphone Controller

https://www.mistcooling.com/web/image/product.template/97/image_1920?unique=06c6c96

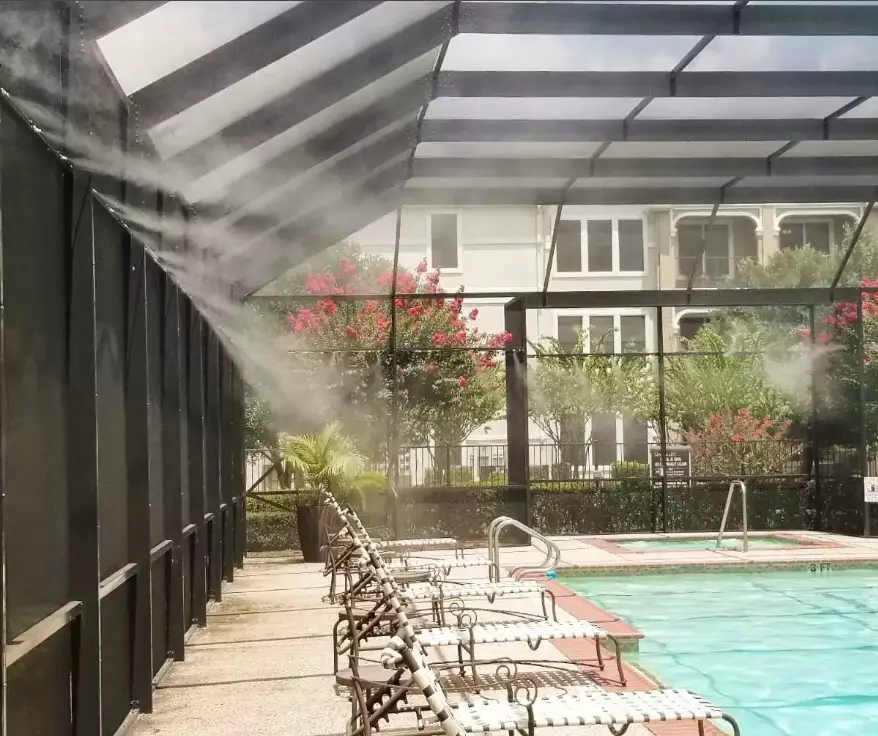

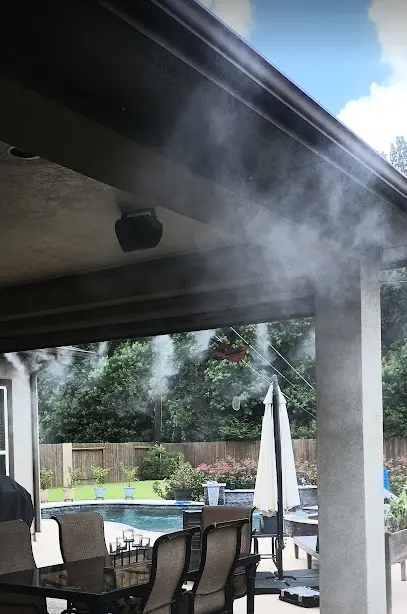

  • Great for residential patios and restaurants where aesthetics are important, the stainless steel lines blend with all types of decor. In addition to its good looks, a stainless steel misting line prevents pressure loss throughout the system to produce the finest of mist.
  • Stainless steel tubing will not lag after installation and lasts a lifetime. If you are looking for years of trouble-free operation with supreme mist quality and ultimate looks, this system is for you!


Our max 1500psi Stainless Steel Misting system can be used in many applications, including many:

  • commercial environments,
  • manufacturing applications, and
  • even agricultural settings.

A High-Pressure Misting kit can be customized to your specifications, allowing you to instantly cool and increase the usability of your outdoor space during hot summer months. Larger systems with high-flow pumps are also available. Contact us for a custom quote.


You can now control the misting pump with an add-on Smart phone controller. (Requires strong WiFi signal at the pump). Compatible with misting pump with up to 40 Misting Nozzles capacity.

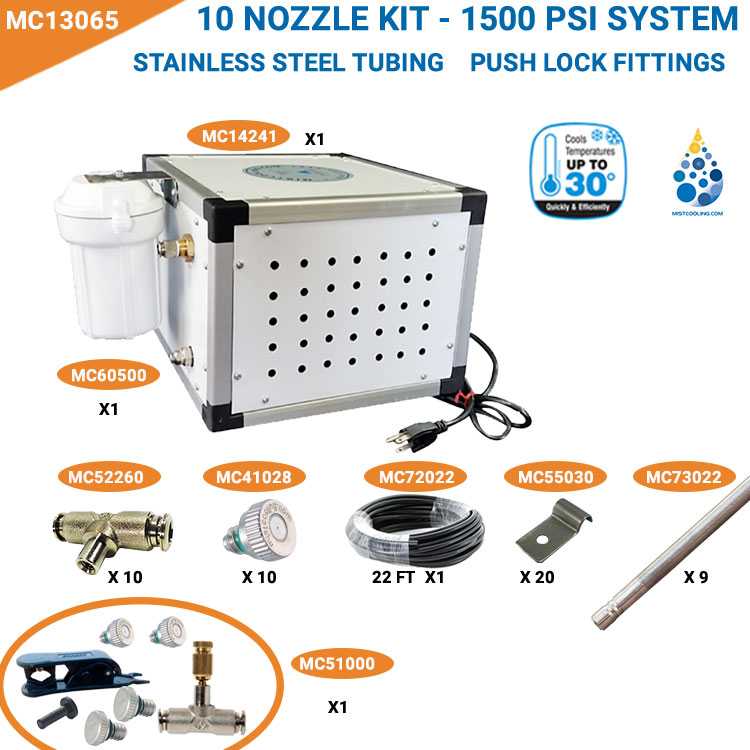

Base Kit Components:

1x 1500 PSI Standard Misting Pump

10x Misting Tees

10x Stainless Steel Misting Nozzles - 0.006" Orifice 10/24 thread

9x 2ft Sections, Stainless Steel Tubing - Grooved for easy connect

22ft High-Pressure 1/4in Tubing Roll (feed line from the pump to connect to stainless steel)

6ft Garden Hose Adaptor Feed Line 3/8in OD

10x Stainless Steel Clamps

High-Pressure Accessory Kit


Stainless Steel Tubing Vs Nylon Tubing:

✔ - Life Time Warranty

✔ - Rigid - Does not lag or expand over the years

✔ - Longer life - Less likely to leak

✔ - Higher Pressure Rating

✔ - Larger Inner Diameter so Water flows better and the system maintains better overall pressure over longer distances.

✔ - Looks good on any outdoor décor. Matches Stainless Steel Outdoor Appliances.

✔ - Reusable

$ 1,199.99 1199.99 USD $ 1,199.99

$ 1,199.99

Not Available For Sale

  • MC13065 Standard Misting System Stainless Steel

This combination does not exist.

Home Page
Contact Us




Base Kit Components:

  • 1x 1500 PSI Standard Misting Pump
  • 10x Misting Tees
  • 10x Stainless Steel Misting Nozzles - 0.006" Orifice 10/24 thread
  • 9x 2ft Sections, Stainless Steel Tubing - Grooved for easy connect
  • 22ft High-Pressure 1/4in Tubing Roll (feed line from the pump to connect to stainless steel)
  • 6ft Garden Hose Adaptor Feed Line 3/8in OD
  • 10x Stainless Steel Clamps
  • High-Pressure Accessory Kit

Features:

  • High-Pressure Misting System aids flash evaporation of mist, which then turns into cool refreshing air while instantly creating a temperature drop.
  • Ultrafine Fog is produced using Max 1500psi pump that evaporates almost instantly - leaving absolutely no wetness or moisture on the floor or eating tables.
  • Anti-Drip Stainless Steel Mist Nozzles will ensure an instant on/off effect without dripping on people. Smart safety features automatically turn the pump off if the water source is turned off and prevents damage to the pump.
  • Built-in electronic water on/off valve means you will never have to walk up to your water source each time you want to turn your system on/off. Extra water not used by the mist nozzles gets automatically redirected into the inlet water source.
  • Adjustable Push lock fittings do not require any tools to install and are reusable. Compatible with various timers and controls.

To be successful your content needs to be useful to your readers.

Start with the customer – find out what they want and give it to them.

Start with the customer – find out what they want and give it to them.

Nylon Tubing

Nylon (Polyamide 12) semi-flexible, plasticized, heat stabilized
  • OD :  0.25 Inch
  • ID :  0.188 Inch
  • Burst Pressure :  2800 PSI
  • Colors :  Black / White / Dark Brown /Beige
  • Lengths: Per Foot

​

1/4 Stainless Steel Tubing

316 Stainless Steel


  • OD :  0.25 Inch
  • Stainless Steel
  • Grooved : Yes
  • Nozzle Slot: No
  • Lengths:  1 Ft, 2 Ft, 3 Ft, 4 Ft, Custom lengths

​

3/8 Inch Stainless Steel Tubing

316 Stainless Steel


  • OD :  0.375 Inch
  • Stainless Steel
  • Grooved : No
  • Nozzle Slot: Yes
  • Lengths: 8FT Sections

​

1000 PSI Misting Pump

40 Nozzles max

  • No Solenoid
  • No By Pass Valve
  • Cannot use smart phone controller
  • No Thermal Safety switch
  • Oil Less

1 Year Warranty

1500 PSI Standard Misting Pump

40 Nozzles Max

  • Solenoid
  • By Pass Valve
  • Can use smart phone controller
  • Thermal Safety switch
  • Oil Less

1 Year Warranty​

1500 PSI Premium Misting Pump

260 Misting Nozzles Max

  • Solenoid
  • By Pass Valve
  • Can use smart phone controller
  • Thermal Safety switch
  • Oil based

1 Year Warranty​

The components of the complete 1500 PSI misting system are: https://youtu.be/IC3zw595CZc


The installation instruction and the manuals for the 1500 PSI Patio Misting system are:

https://youtu.be/pKrL0SuihP8

https://youtu.be/i7OqS-Qigx8

All our high-pressure Nylon Tubing are UV coated.

https://mistcooling.com/mist-tubing.html


You could also use Stainless Steel Tubing for your mistcooling system

https://mistcooling.com/1-4-inch-stainless-steel-tubing-for-push-lock-2ft-section.html


The Nozzle orifice is 0.006", 10/24 Thread. The misting nozzle supplied with this mistcooling kit is stainless steel misting nozzle.

https://mistcooling.com/stainless-steel-mist-nozzles-10-24-thread-0-006-orifice-1000-to-1500-psi-high-pressure.html

Is this a mister or a fogger? I need fog not a wet mist. How many microns are the water droplets?

This is the best misting system for residential and commercial misting applications. The mistcooling systems comes with 1500 PSI Misting pump and low flow misting nozzles. The other systems ideal for high pressure misting systems are misting fan systems with 1500 psi misting pump and outdoor rated fans. https://mistcooling.com/misting-fans/high-pressure-misting-fans-1500psi.html

For industrial misting systems we suggest : https://mistcooling.com/fogging-system-industrial.html


Please see the microns and the flow chart of the high pressure misting nozzles here:

https://docs.google.com/spreadsheets/d/1y6bYI6lxnZ3PXDQ1VD8EkAoAaR0Pa_O6hRLPwkg_1fQ/edit#gid=1190224638




Specifications

MC13065 Standard Misting System Stainless Steel 40ft - 10 Nozzles & Tees (18ft SS & .15 GPM), 60ft - 20 Nozzles & Tees (38ft SS & .15 GPM), 80ft - 30 Nozzles & Tees (58ft SS & .30 GPM), 100ft - 40 Nozzles & Tees (78ft SS & .30 GPM)
