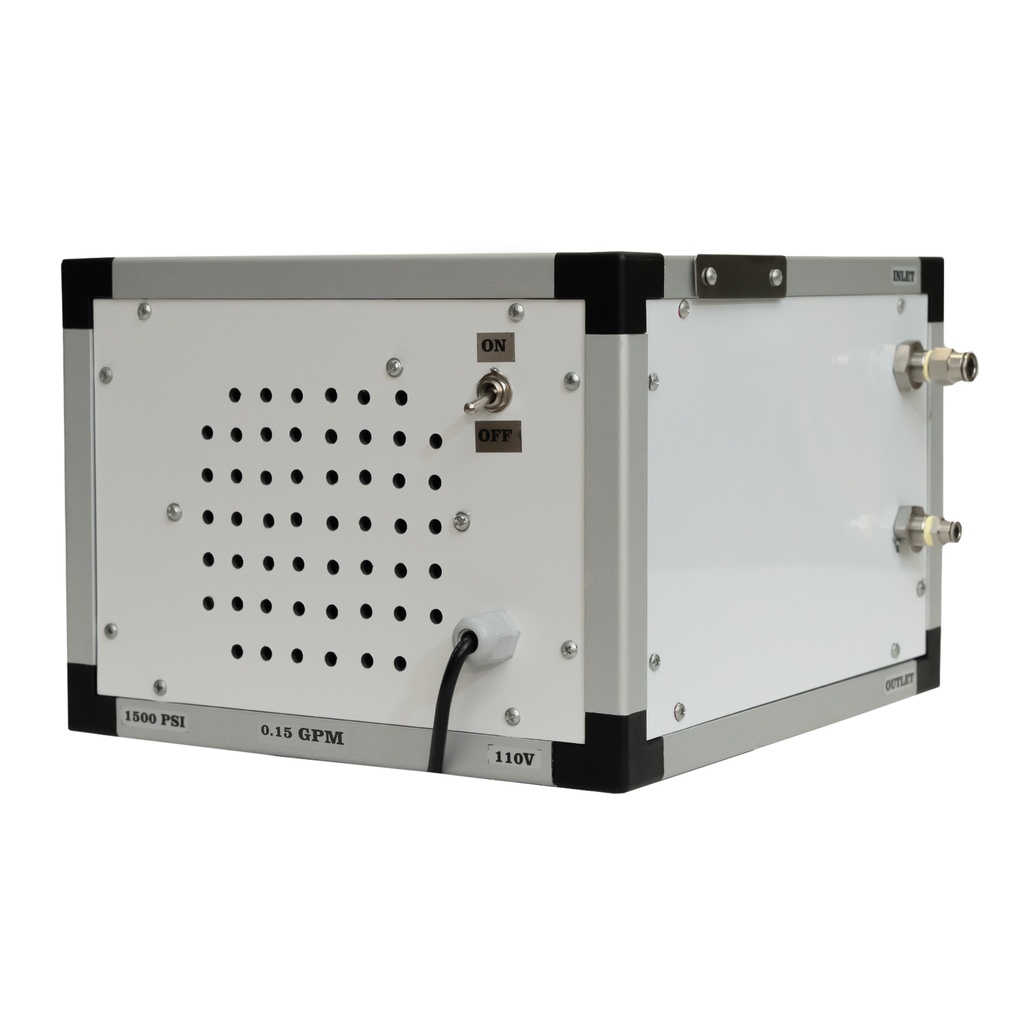

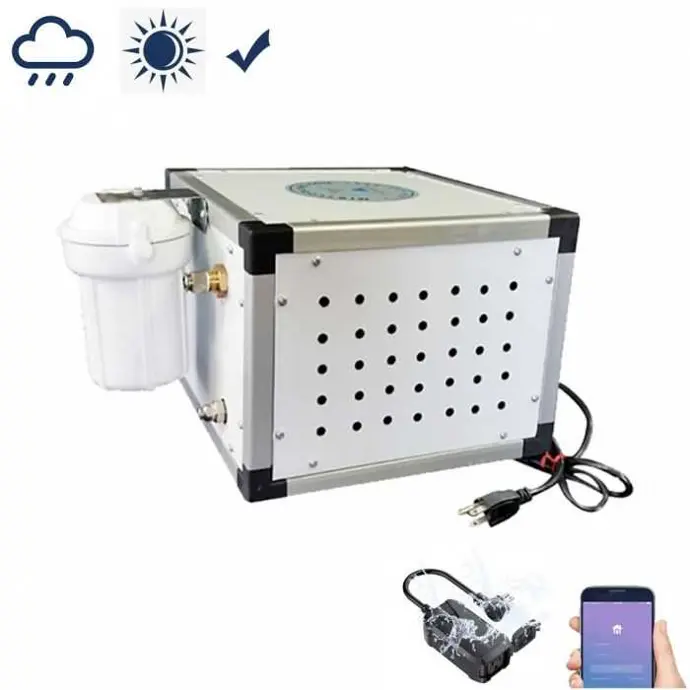

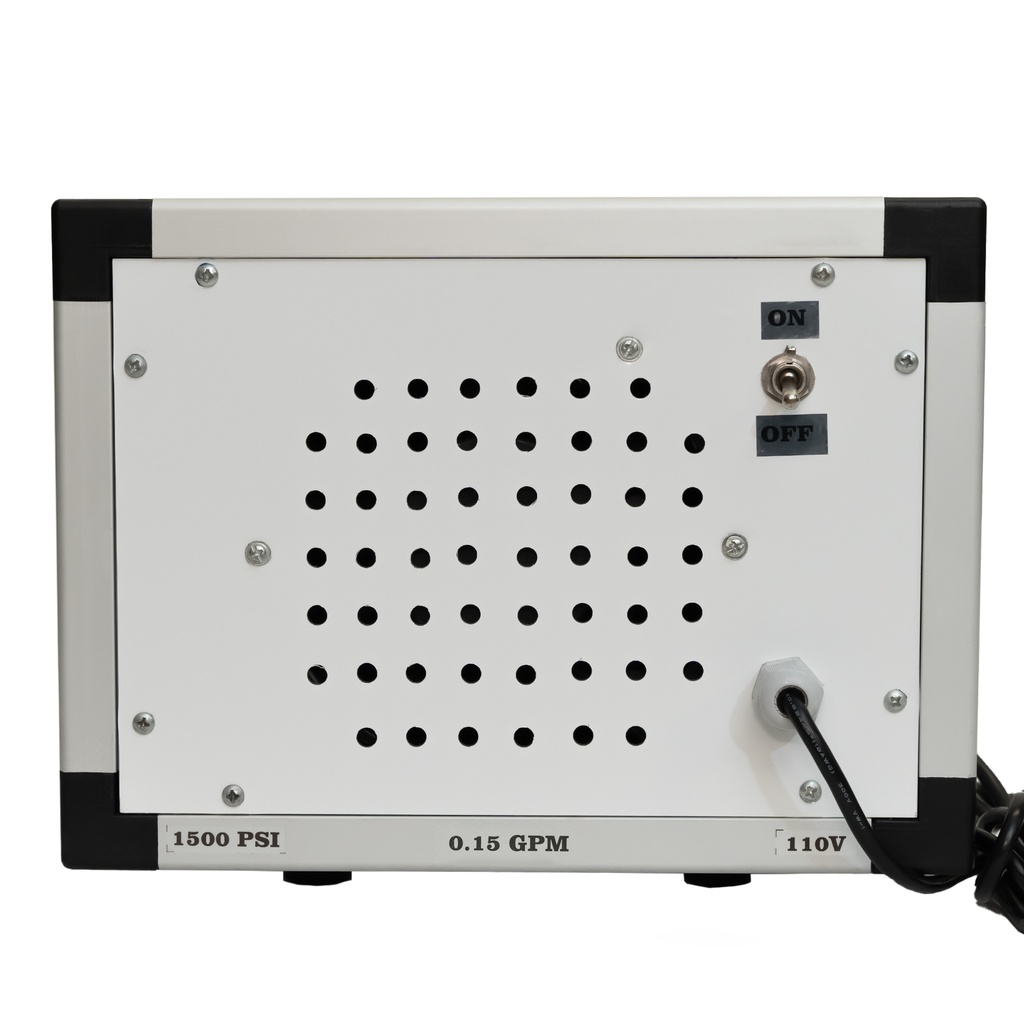

1500 PSI Standard Misting Package - Flexible Tubing - Free Smartphone Controller

The 1500 PSI Misting System is equipped with features like:

• High Pressure: Produces ultra-fine mist droplets that flash evaporate, creating a cooling effect without wetness.
• Smart Features: Comes with a built-in solenoid valve, low-water cut-off switch, and optional smartphone control for convenience.
• Durable Design: Includes nickel-plated brass push-lock fittings and stainless steel mist nozzles, ensuring long-term reliability.

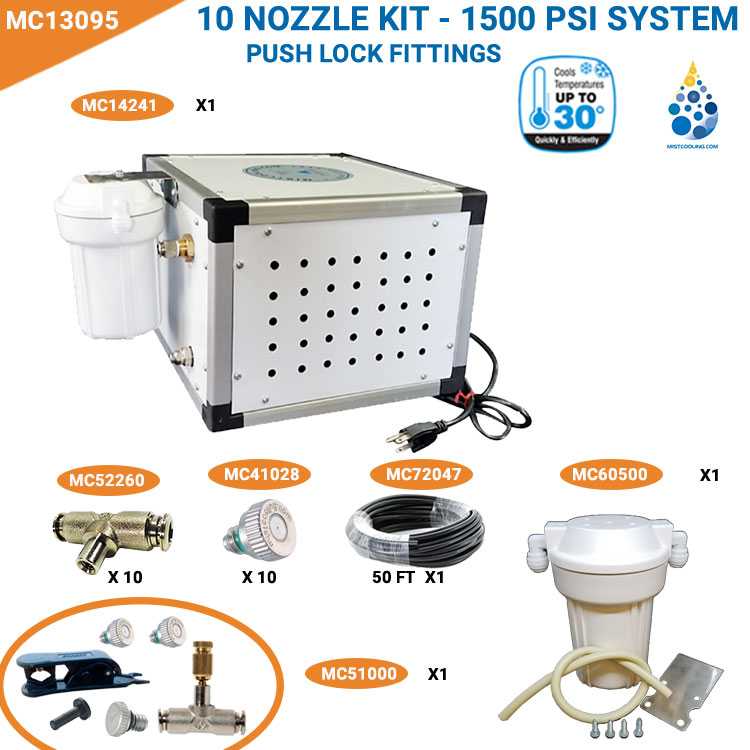

• Customizability: Supports up to 40 nozzles, making it suitable for residential, commercial, and industrial applications.
• Energy Efficiency: Operates at a flow rate of 0.15 to 0.30 GPM, making it more water-efficient than many other systems.

The system uses 8 gallons per hour (GPH) for a standard configuration. This is significantly lower than other systems like the 200 PSI and 1000 PSI systems, which use 22 GPH, making the 1500 PSI system highly water-efficient.

Installation is straightforward thanks to the push-lock fittings, which:

• Don’t require tools for assembly.
• Allow quick and secure connections.
• Are reusable, making adjustments easy.

The system comes with a detailed manual and video guides to assist with setup. Most customers can install it themselves without professional help.

Regular maintenance involves:

1. Filter Changes: Replace every 3–6 months or sooner if water quality is poor.
2. Nozzle Cleaning: Use an industrial-grade cleaner to remove deposits from mist nozzles.
3. Winterization: Drain water from the pump, tubing, and nozzles to prevent freezing damage during cold months.
4. Seal Changes: Replace seals after every 1,500 hours of use.

A maintenance log is provided in the manual to keep track of these activities.

The 1500 PSI system includes a low-water cut-off switch, which automatically shuts off the pump if there’s no water supply. This prevents damage from running dry. However, running the pump dry without this feature or bypassing the switch will void the warranty.

The 1500 PSI system offers:

1. Superior Cooling: Creates ultra-fine mist for better evaporation and cooling without wetness.
2. Ease of Use: Push-lock fittings are easier to install and maintain compared to compression fittings used in the 1000 PSI system.
3. Smart Features: Includes smartphone control compatibility and built-in safety features like a solenoid valve and thermal safety switch.
4. Energy and Water Efficiency: Uses less water (8 GPH vs. 22 GPH) while delivering higher performance.


Absolutely! The 1500 PSI system is perfect for:

• Restaurants and Patios: Keeps guests cool and comfortable without wet surfaces.
• Industrial Applications: Reduces heat and improves working conditions in warehouses or factories.
• Special Events: Used in high-profile venues like theme parks, hotels, and international sports event

• Remove the nozzle and soak it in a cleaning solution like MC46220 Nozzle Cleaner to dissolve deposits.
• Use a toothbrush or compressed air to clean the nozzle tip.
• If the nozzle is still clogged, replace it with a new one.

• The recommended continuous run time is 12–15 hours. For longer operations, allow the pump to cool or consult our technicians for customization options. The thermal safety switch will prevent overheating by cycling the pump off if it reaches 140°F.
