Industrial 1500psi Kit - 40 to 260 Nozzles - Stainless Steel
MC13080
Key Features:

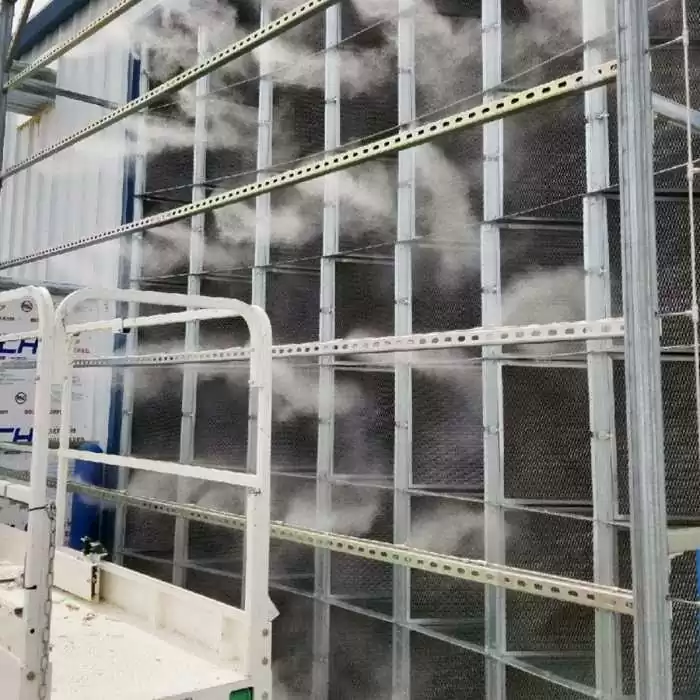

- Perfect for use in large warehouses to provide workers with a productive environment to work in, Mist Cooling Inc’s industrial misting systems can also have applications in manufacturing facilities, foundries, industrial plants, refineries, garbage sorting facilities as well as construction sites. The systems have been specially designed for commercial and industrial customers. The industrial misting system consists of 3/8'' pre-fabricated stainless steel misting lines that come in 8 ft sections. Nozzles are pre-threaded with risers and allow ease of installation in any location.
- The durable stainless steel mist lines come with a lifetime warranty and can withstand a pressure of up to 2,000 PSI. It’s low maintenance, energy-efficient misting systems, designed to perform consistently even in the most challenging conditions.
- This high-pressure industrial misting system comes with a commercial grade 1500 PSI Tri-Plex Mist Pump, 3/8'' Welded Stainless Steel Mist Line, Feedline, Ultrafine Stainless Steel Orifice Mist Nozzles, Drain Valve, and all necessary fittings and Mounting Clamps.
- This system comes highly recommended for cooling, humidification, dust suppression and odor control, pre-cooling, and more. Custom length and nozzle spacing options are available.
- Welded stainless steel mist line for ease of installation Ultimate durability with a lifetime warranty on SS Mist Line Reduced friction and pressure loss compared to flexible tubing Great for Commercial and Industrial Applications.
- Fogging Misting System for Industrial misting applications. 1500 PSI High-Pressure Misting Pump Rated for Industrial Misting Applications.
- 1500 PSI Misting Pump - 1, 2, or 3 GPM
- 3/8in Inch OD Stainless Steel Tubing - 8ft Sections - with 10/24 Thread Size Slots
- 3/8in Compression Misting Parts and Accessories
- Stainless Steel Misting Nozzles
- For large-scale Commercial Misting Applications & Industrial misting applications
Base Kit Components:
- 1x 1500PSI High-Pressure Tri-Plex Mist Pump with Built-in Solenoid, Pressure Switch, Pressure Bypass in Outdoor Rust Proof-Enclosure
- 10x 8ft Welded Stainless Steel Mist Line (Total 80ft)
- 50ft Flexible Feedline 3/8in OD
- 40x Ultrafine Stainless Steel Orifice Mist Nozzles 10/24 threads - 0.006" Orifice
- 8x 3/8in compression unions
- 1x End Plug
- 1x 5 Micron Commercial Filtration for the Pump
- Necessary Fittings and Stainless Steel Clamps
Stainless Steel Tubing Vs Nylon Tubing:
- Life Time Warranty
- Rigid - Does not lag or expand over the years
- Longer life - Less likely to leak
- Higher Pressure Rating
- Larger Inner Diameter so Water flows better and system maintains better overall pressure over longer distances.
- Looks good on any outdoor décor. Matches Stainless Steel outdoor Appliances.
- Reusable
Industrial Misting System Applications:
- Data centers cooling,
- AC Pre-cooling,
- Warehouse cooling with misting
- Manufacturing Plants for industrial machinery cooling
- Petro Chem Plants
- Refineries
- Theme Parks
- Dust Suppression Misting
- Garbage Disposal
- Landfields
- Additional shipping charges may apply. Mistcooling.com covers up to $ 100 for shipping costs. Please refer to our shipping policy.
| Misting Pump Size - MC83100 | Misting Pump size: 1 GPM - Supports 80 Nozzles, Misting Pump size: 2 GPM - Supports 160 Nozzles, Misting Pump size: 3 GPM - Direct Drive Pump - Supports 250 Nozzles |
| System length (8ft Sections) | System length (8ft Sections): 80ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 120ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 160ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 200ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 240ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 280ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 320ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 360ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 400ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 440ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 480ft - 3/8 Inch Stainless Steel Mist Line, System length (8ft Sections): 520ft - 3/8 Inch Stainless Steel Mist Line |
| Misting Nozzle Orifice Size | Misting Nozzle Orifice Size : 0.006 inch- Lowest Flow, Misting Nozzle Orifice Size : 0.008 inch, Misting Nozzle Orifice Size : 0.012 inch- Lowest Flow |
| Number of Nozzles | Number of Nozzles: 40 Nozzles, Number of Nozzles: 60 Nozzles, Number of Nozzles: 80 Nozzles, Number of Nozzles: 100 Nozzles, Number of Nozzles: 120 Nozzles, Number of Nozzles: 140 Nozzles, Number of Nozzles: 160 Nozzles, Number of Nozzles: 180 Nozzles, Number of Nozzles: 200 Nozzles, Number of Nozzles: 220 Nozzles, Number of Nozzles: 240 Nozzles, Number of Nozzles: 260 Nozzles |
| Filtration | No Thank you, Filtration: Industrial Sediment & Scale Prevention Filter |
What is an end plug?
The end plug is to stop the water from just coming out of an opening at the end of the line.
Hi, would you be able to tell me the flow rate used and the energy consumption of the pumps etc during operation? Also is there adjustable settings for the flow rate of the system? Can operation be set up to run automatically based on timers or temperatures?
There are different variables (how many nozzles needed, GPM of specific pump) for these systems so it's not possible for one straight answer. You can get separate timers for different features.
what is the GPM thru each nozzle and what is the GPM of the pump at 1,500 psi. What is the electrical requirement of the pump?
You have the option to choose between two nozzle sizes .006 and .008. With each nozzle that is an orifice size of .006 you would mist .013 GPM and if you went with .008 size orifice nozzles you would mist .021 GPM. Based on the needs of your space we have pumps available that will offer up to .5 GPM, 1GPM, and 2GPM. With this system you would use normal 110v AC. Please feel free to email us a picture of the area you would like to mist along with a detailed description of what you are looking for and we would be happy to create a quote for you.
How much will I need for a 60'x96' greenhouse with a 12' gutter height?
Two or three parallel runs in the middle of the greenhouse (longer sides) should be sufficient. 200ft mist system will provide coverage for two longer runs. Industrial Mist System can be expanded should you require additional coverage.
What is the flow rate on this, or what is the recommended flow rate per nozzle on a system like this one?
Flow rate would be around .012 per nozzle
